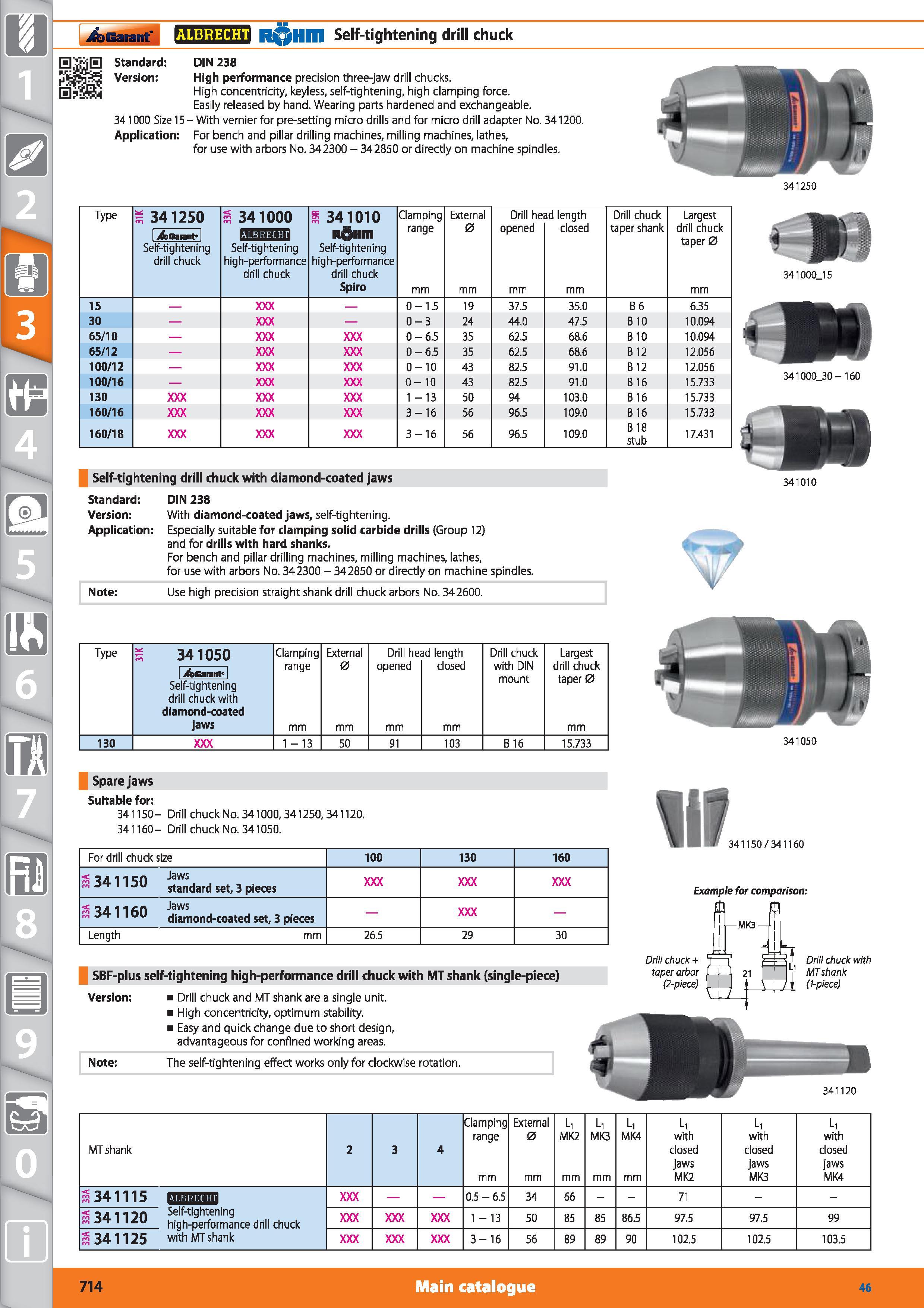

8 0 m Garant ALBRECHT R Hm Self-tightening drill chuck Standard DIN 238 Version High performance precision three-jaw drill chucks. High concentricity, keyless, self-tightening, high clamping force. Easily released by hand. Wearing parts hardened and exchangeable. 341000 Size 15-With vernier for pre-setting micro drills and for micro drill adapter No. 341200. Application For bench and pillar drilling machines, milling machines, lathes, for use with arbors No. 342300 - 342850 or directly on machine spindles. Type s 341250 s 341000 a 341010 R MI Self-tightening high-performance drill chuck Spiro Clamping range mm External 0 mm Drill he opened mm ad length closed mm Drill chuck taper shank Largest drill chuck taper 0 mm 1 jfeGaiant 1 Self-tightening drill chuck HalbrechtH Self-tightening high-performance drill chuck 15 0-1.5 19 37.5 35.0 B 6 6.35 30 0-3 24 44.0 47.5 B10 10.094 65/10 0-6.5 35 62.5 68.6 B10 10.094 65/12 0-6.5 35 62.5 68.6 B 12 12.056 100/12 0-10 43 82.5 91.0 B 12 12.056 100/16 0-10 43 82.5 91.0 B 16 15.733 130 1 -13 50 94 103.0 B 16 15.733 160/16 3-16 56 96.5 109.0 B 16 15.733 160/18 3-16 56 96.5 109.0 B 18 stub 17.431 Self-tightening drill chuck with diamond-coated jaws DIN 238 With diamond-coated jaws, self-tightening. Especially suitable for clamping solid carbide drills (Group 12) Standard Version Application and for drills with hard shanks. For bench and pillar drilling machines, milling machines, lathes, for use with arbors No. 342300 - 342850 or directly on machine spindles. Note Use high precision straight shank drill chuck arbors No. 342600. 341000_30 - 160 341010 Type h 341050 I jf Earent Self-tightening drill chuck with diamond-coated jaws Clamping range mm External 0 mm Drill he opened mm ad length closed mm Drill chuck with DIN mount Largest drill chuck taper 0 mm 130 1 -13 50 91 103 B 16 15.733 341050 Spare jaws Suitable for 341150- Drill chuck No. 341000,341250,341120. 341160- Drill chuck No. 341050. For drill chuck size 100 130 160 s341150 Jaws standard set, 3 pieces s341160 Jaws diamond-coated set, 3 pieces Length mm 26.5 29 30 w 341150/341160 Example for comparison K3 -I SBF-plus self-tightening high-performance drill chuck with MT shank (single-piece) Version Drill chuck and MT shank are a single unit. High concentricity, optimum stability. Easy and quick change due to short design, advantageous for confined working areas. Drill chuck + taper arbor (2-piece) "nT Drill chuck with V MT shank (1-piece) Note The self-tightening effect works only for clockwise rotation. 341120 MT shank 2 3 4 Clamping range mm External 0 mm Li MK2 mm Li MK3 mm Li MK4 mm L, with closed jaws MK2 L, with closed jaws MK3 L, with closed jaws MK4 s 34 1115 0.5 - 6.5 34 66 71 VL1120 ielf-tightenmg m high-performance drill chuck 1 - 13 50 85 85 86.5 97.5 97.5 99 is 34 1125 with MT shank 3-16 56 89 89 90 102.5 102.5 103.5 714 Main catalogue Hoffmann Group 46
