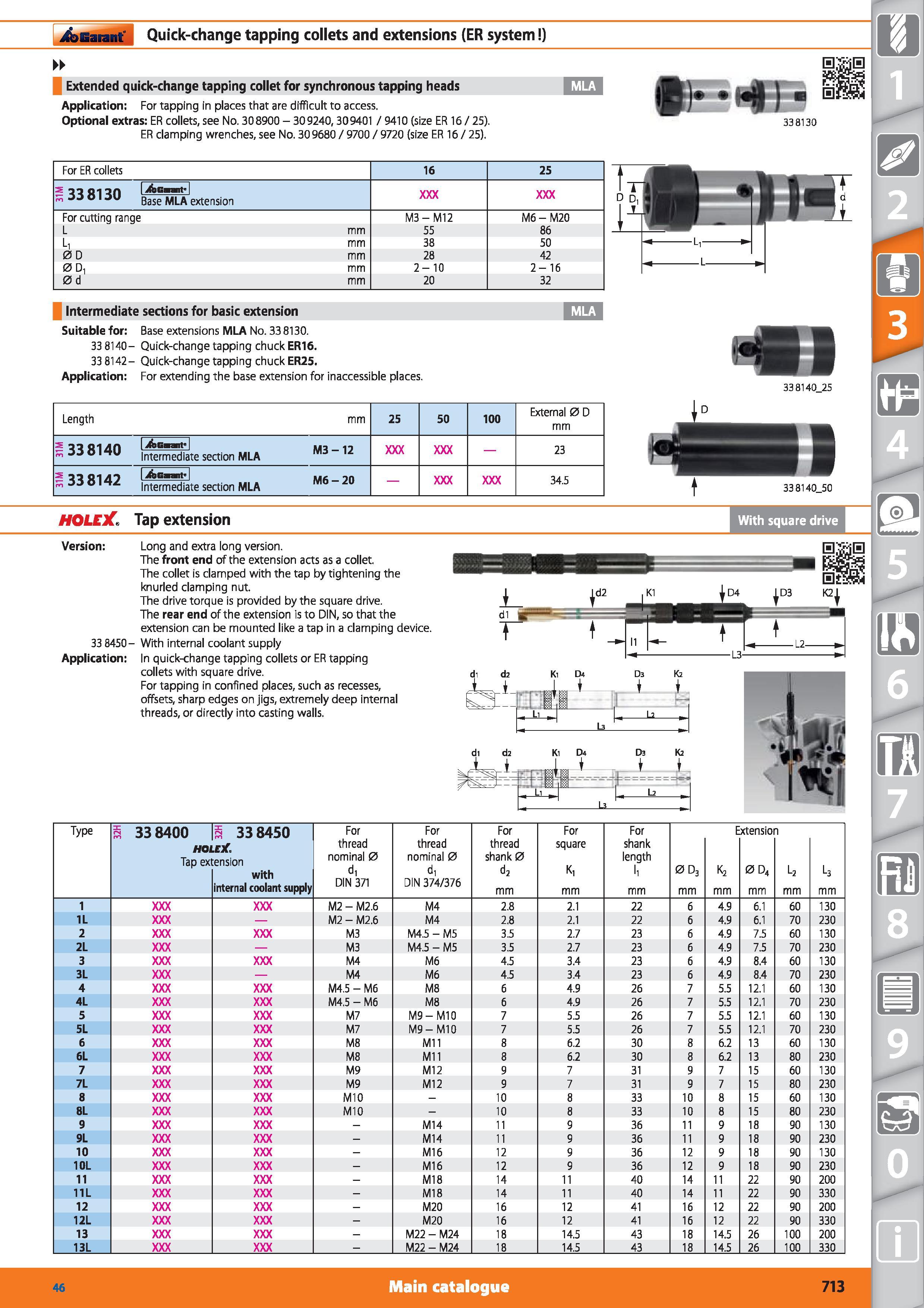

Garant Quick-change tapping collets and extensions (ER system ) Extended quick-change tapping collet for synchronous tapping heads Application For tapping in places that are difficult to access. Optional extras ER collets, see No. 308900 - 309240,309401 / 9410 (size ER 16 / 25). ER clamping wrenches, see No. 309680 / 9700 / 9720 (size ER 16 / 25). For ER collets 16 25 s i rn n 1 Aomnf 33 O 1 3V gase MLA extension For cutting range M3-M12 M6 - M20 L mm 55 86 mm 38 50 0 D mm 28 42 0D, mm 2-10 2-16 0 d mm 20 32 Intermediate sections for basic extension Suitable for Base extensions MLA No. 33 8130. 33 8140- Quick-change tapping chuck ER16. 33 8142- Quick-change tapping chuck ER25. Application For extending the base extension for inaccessible places. With square drive External 0 D mm l Ab p , j j o tv Intermediate section MLA M3-12 "338142 MtesedonMLA M6 20 HOLEX Tap extension Version Long and extra long version. The front end of the extension acts as a collet. The collet is clamped with the tap by tightening the knurled clamping nut. The drive torque is provided by the square drive. The rear end of the extension is to DIN, so that the extension can be mounted like a tap in a clamping device. 33 8450- With internal coolant supply Application In quick-change tapping collets or ER tapping collets with square drive. For tapping in confined places, such as recesses, offsets, sharp edges on jigs, extremely deep internal threads, or directly into casting walls. 33 8140_25 33 8140_50 Type s 338400 HOI Tap ex R 338450 E ension with internal coolant supply For thread nominal 0 di DIN 371 O' thread nominal 0 di DIN 374/376 For thread shank 0 d2 mm For square K, mm For shank length h mm 0Dj mm E k2 mm xtensio 0D4 mm 1 l2 mm l3 mm 1 M2 - M2.6 M4 2.8 2.1 22 6 4.9 6.1 60 130 1L M2 - M2.6 M4 2.8 2.1 22 6 4.9 6.1 70 230 2 M3 M4.5 - M5 3.5 2.7 23 6 4.9 7.5 60 130 2L M3 M4.5 - M5 3.5 2.7 23 6 4.9 7.5 70 230 3 M4 M6 4.5 3.4 23 6 4.9 8.4 60 130 3L M4 M6 4.5 3.4 23 6 4.9 8.4 70 230 4 M4.5 - M6 M8 6 4.9 26 7 5.5 12.1 60 130 4L M4.5 - M6 M8 6 4.9 26 7 5.5 12.1 70 230 5 M7 M9-M10 7 5.5 26 7 5.5 12.1 60 130 5L M7 M9-M10 7 5.5 26 7 5.5 12.1 70 230 6 M8 Mil 8 6.2 30 8 6.2 13 60 130 6L M8 Mil 8 6.2 30 8 6.2 13 80 230 7 M9 M12 9 7 31 9 7 15 60 130 7L M9 M12 9 7 31 9 7 15 80 230 8 M10 - 10 8 33 10 8 15 60 130 8L M10 10 8 33 10 8 15 80 230 9 - M14 11 9 36 11 9 18 90 130 9L - M14 11 9 36 11 9 18 90 230 10 - M16 12 9 36 12 9 18 90 130 10L - M16 12 9 36 12 9 18 90 230 11 M18 14 11 40 14 11 22 90 200 11L - M18 14 11 40 14 11 22 90 330 12 M20 16 12 41 16 12 22 90 200 12L - M20 16 12 41 16 12 22 90 330 13 M22 - M24 18 14.5 43 18 14.5 26 100 200 13L M22 - M24 18 14.5 43 18 14.5 26 100 330 Main catalogue Hoffmann Group 46 713
