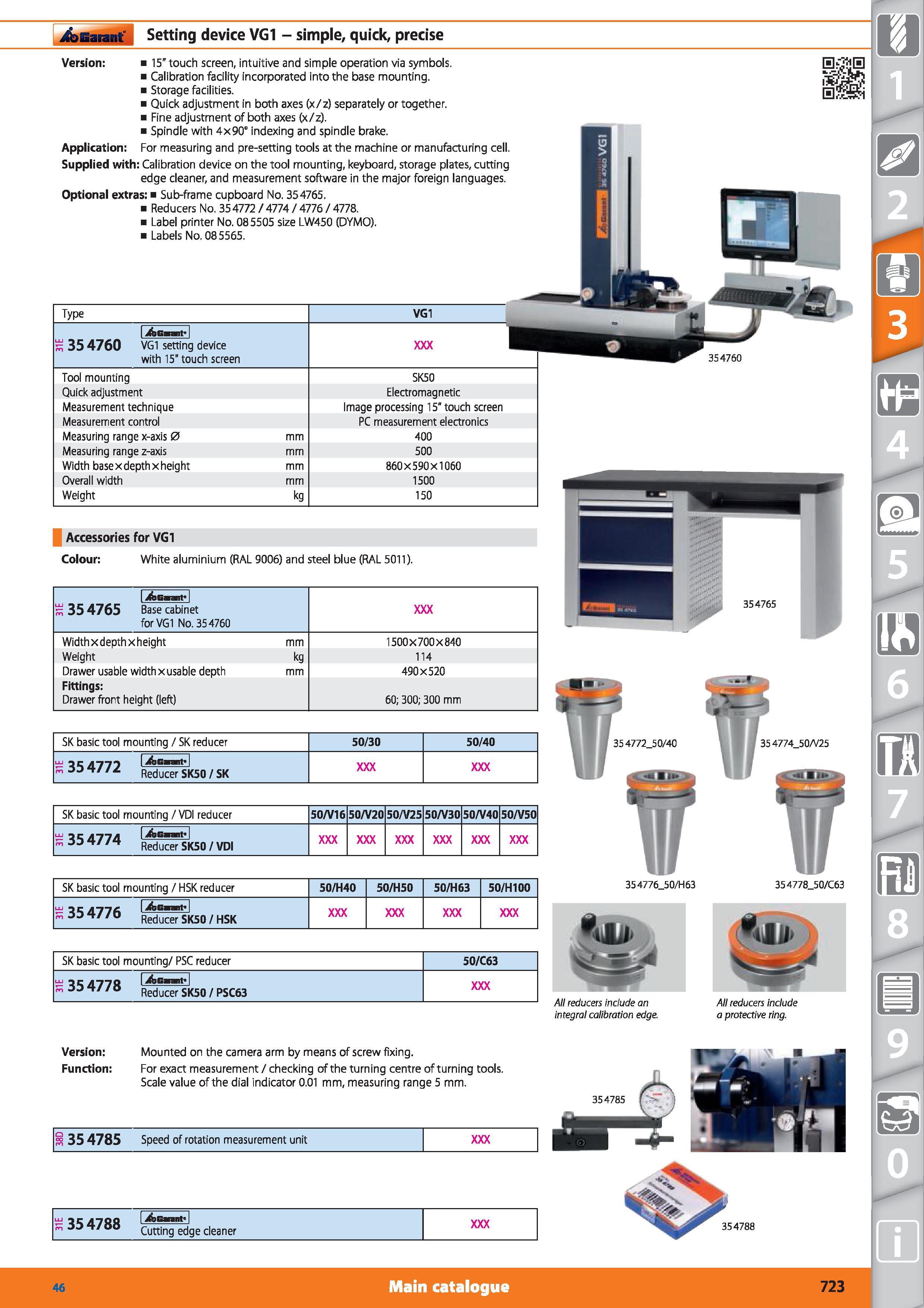

Garant Setting device VG1 - simple, quick, precise Version 15” touch screen, intuitive and simple operation via symbols. Calibration facility incorporated into the base mounting. Storage facilities. Quick adjustment in both axes (x/z) separately or together. Fine adjustment of both axes (x/z). Spindle with 4x90° indexing and spindle brake. Application For measuring and pre-setting tools at the machine or manufacturing cell. Supplied with Calibration device on the tool mounting, keyboard, storage plates, cutting edge cleaner, and measurement software in the major foreign languages. Optional extras Sub-frame cupboard No. 354765. Reducers No. 35 4772 / 4774 / 4776 / 4778. Label printer No. 085505 size LW450 (DYMO). Labels No. 085565. 0. 0 Type 354760 VG1 setting device with 15" touch screen Tool mounting Quick adjustment Measurement technique Measurement control Measuring range x-axis 0 Measuring range z-axis Width basexdepthxheight Overall width Weight mm kg VG1 SK50 Electromagnetic Image processing 15" touch screen PC measurement electronics 400 500 860x590x1060 1500 150 354760 Accessories for VG1 Colour White aluminium (RAL 9006) and steel blue (RAL 5011). li&Gmnt”l s 35 4765 Base cabinet for VG1 No. 354760 Widthxdepthxheight mm 1500X700X840 Weight kg 114 Drawer usable widthx usable depth mm 490x520 Fittings Drawer front height (left) 60; 300; 300 mm SK basic tool mounting / SK reducer 50/30 50/40 XbGmfl 33 // Reducer SK50 / SK SK basic tool mounting / VDI reducer 50/VI 6 50/V20 50/V25 50/V30 50/V40 50/V50 S K All A. Reducer SK50 / VDI SK basic tool mounting / HSK reducer 50/H40 50/H50 50/H63 50/H100 ”33 1/0 Reducer SK50 / HSK SK basic tool mounting/ PSC reducer 50/C63 770 IXbGmfl m 33 1/0 Reducer SK50 / pSC63 Version Mounted on the camera arm by means of screw fixing. Function For exact measurement / checking of the turning centre of turning tools. Scale value of the dial indicator 0.01 mm, measuring range 5 mm. 35 4785 Speed of rotation measurement unit K 35 4788 Cutting edge cleaner Main catalogue Hoffmann Group 46 723
