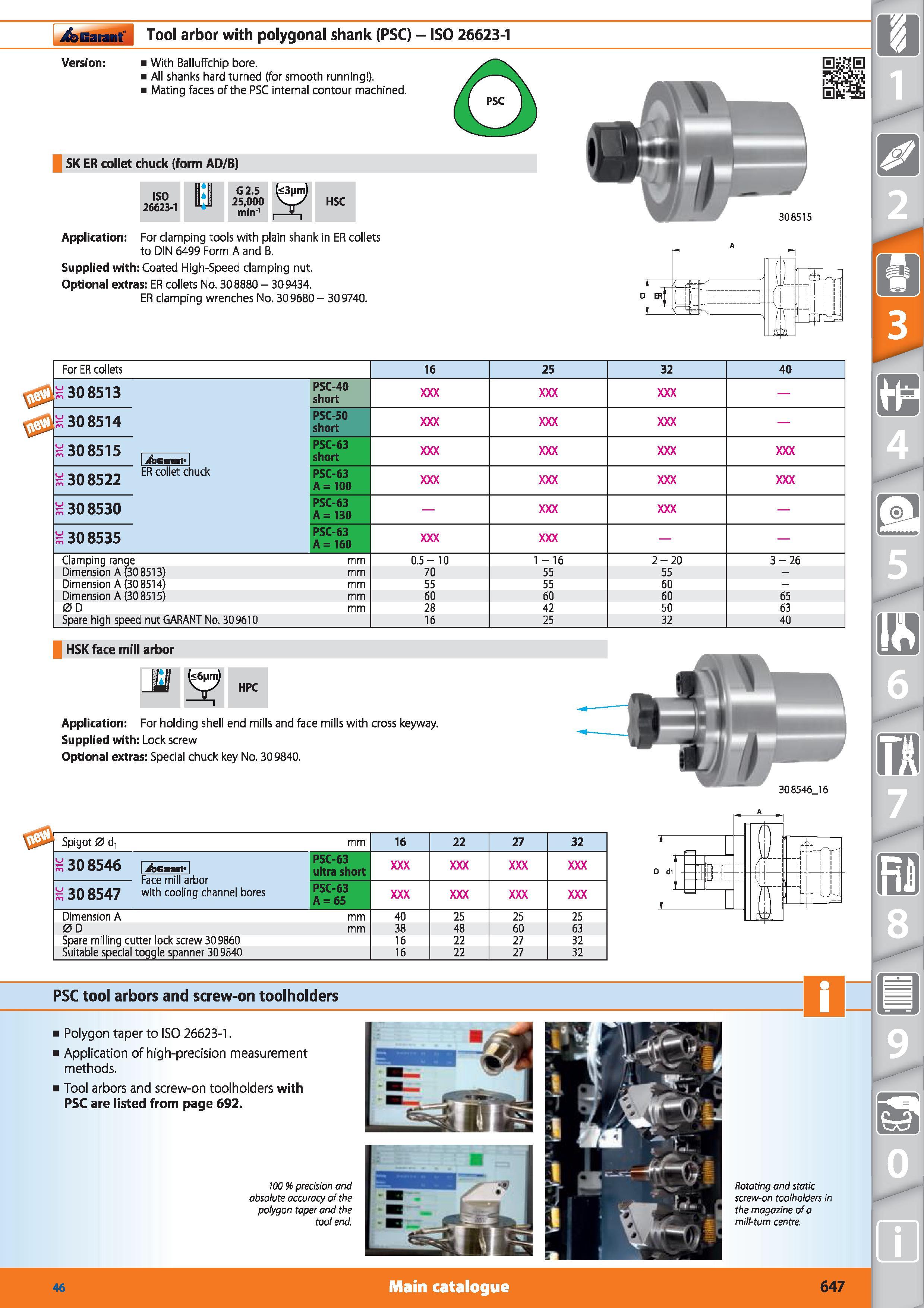

Garant Tool arbor with polygonal shank (PSC) - ISO 26623-1 Version i With Balluffchip bore. i All shanks hard turned (for smooth running ), i Mating faces of the PSC internal contour machined. SK ER collet chuck (form AD/B) ISO 26623-1 G 2.5 25,000 min'1 HSC Application For clamping tools with plain shank in ER collets to DIN 6499 Form A and B. Supplied with Coated Fligh-Speed clamping nut. Optional extras ER collets No. 308880 - 309434. ER clamping wrenches No. 309680 - 309740. HSK face mill arbor HPC Application For holding shell end mills and face mills with cross keyway. Supplied with Lock screw Optional extras Special chuck key No. 309840. For ER collets 16 25 32 40 s 30 8513 PSC-40 short s 30 8514 PSC-50 short y 308515 ,-r , ifinGnait' PSC-63 short s 30 8522 ERcolletchuck PSC-63 A 100 s 30 8530 PSC-63 A 130 s 30 8535 PSC-63 A 160 Clamping range mm 0.5-10 1 -16 2-20 3-26 Dimension A (308513) mm 70 55 55 Dimension A (308514) mm 55 55 60 - Dimension A (308515) mm 60 60 60 65 0 D mm 28 42 50 63 Spare high speed nut GARANT No. 309610 16 25 32 40 Spigot 0 d1 mm 16 22 27 32 s 30 8546 UGnrt. PSC-63 ultra short S 30 8547 with cooling channel bores PSC-63 A 65 Dimension A mm 40 25 25 25 0 D mm 38 48 60 63 Spare milling cutter lock screw 309860 16 22 27 32 Suitable special toggle spanner 309840 16 22 27 32 PSC tool arbors and screw-on toolholders i Polygon taper to ISO 26623-1. i Application of high-precision measurement methods. i Tool arbors and screw-on toolholders with PSC are listed from page 692. 100 96 precision and absolute accuracy of the polygon taper and the tool end. Rotating and static screw-on toolholders in the magazine of a mill-turn centre. Main catalogue Hoffmann Group 46 647
