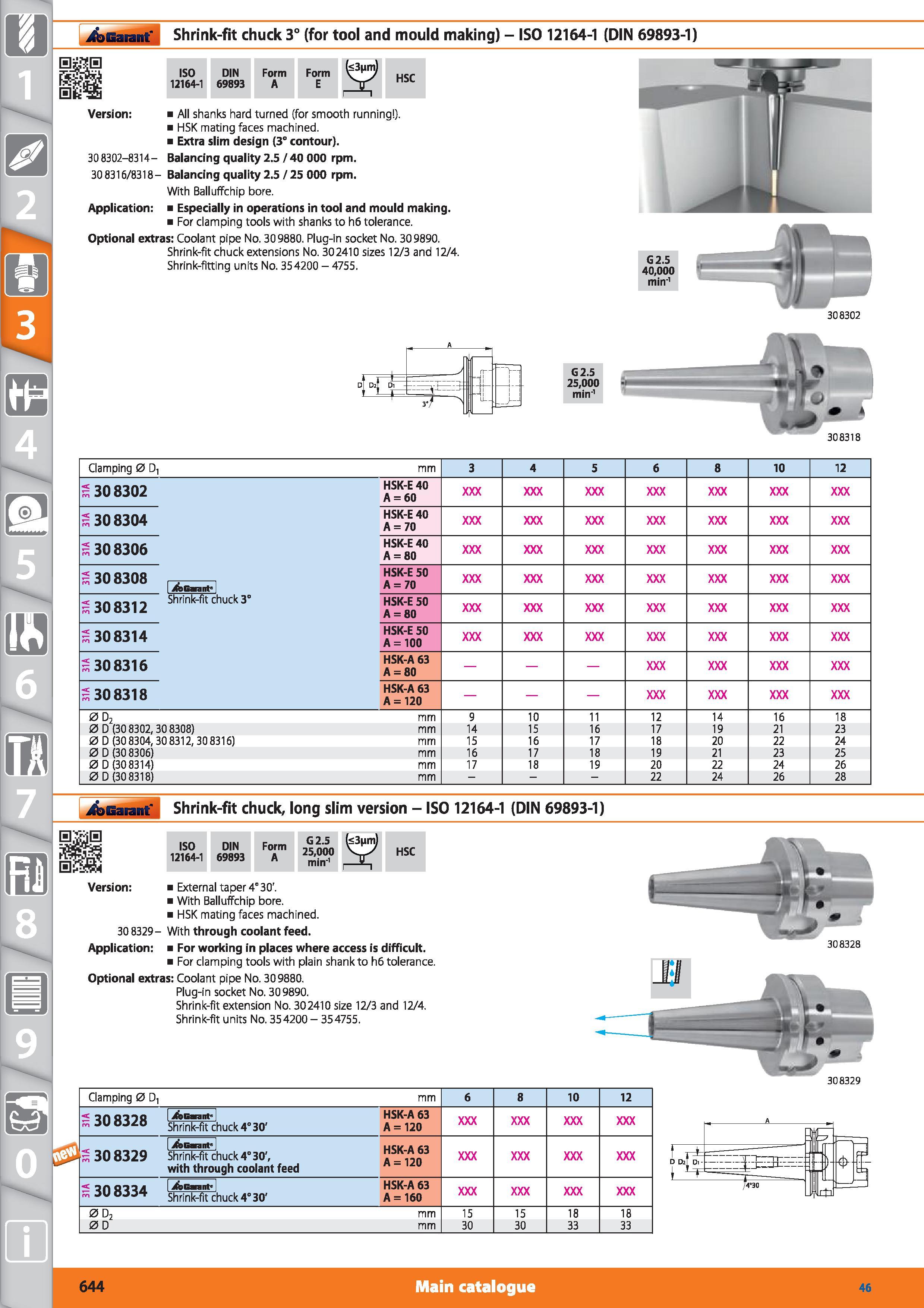

Garant Shrink-fit chuck 3° (for tool and mould making) - ISO 12164-1 (DIN 69893-1) iso 12164-1 DIN 69893 Form A Form E HSC Version All shanks hard turned (for smooth running ). HSK mating faces machined. Extra slim design (3° contour). 30 8302-8314- Balancing quality 2.5/40 000 rpm. 308316/8318- Balancing quality 2.5 /25 000 rpm. With Balluffchip bore. Application Especially in operations in tool and mould making. For clamping tools with shanks to h6 tolerance. Optional extras Coolant pipe No. 309880. Plug-in socket No. 309890. Shrink-fit chuck extensions No. 302410 sizes 12/3 and 12/4. Shrink-fitting units No. 354200 - 4755. G2.5 25,000 min'1 308318 Clamping 0 D, mm 3 4 5 6 8 10 12 s 30 8302 HSK-E 40 A 60 s 30 8304 HSK-E 40 A 70 s 30 8306 HSK-E 40 A 80 5 30 8308 HSK-E 50 A 70 I Garant 308312 Shrink-fitchuck3° HSK-E 50 A 80 s 308314 HSK-E 50 A 100 s 308316 HSK-A 63 A 80 s 308318 HSK-A 63 A 120 0D2 mm 9 10 11 12 14 16 18 0D (30 8302,30 8308) mm 14 15 16 17 19 21 23 0D (308304,308312,308316) mm 15 16 17 18 20 22 24 0D (308306) mm 16 17 18 19 21 23 25 0D (308314) mm 17 18 19 20 22 24 26 0D (308318) mm - 22 24 26 28 iCbGarant' Shrink-fit chuck, long slim version - ISO 12164-1 (DIN 69893-1) iso 12164-1 DIN 69893 Form A G2.5 25,000 min-1 HSC Version External taper 4° 30'. With Balluffchip bore. HSK mating faces machined. 308329- With through coolant feed. Application For working in places where access is difficult. For clamping tools with plain shank to h6 tolerance. Optional extras Coolant pipe No. 309880. Plug-in socket No. 309890. Shrink-fit extension No. 302410 size 12/3 and 12/4. Shrink-fit units No. 354200 - 354755. 308328 m Clamping 0 D, mm 6 8 10 12 s 30 8328 jfeGmnt" Shrink-fit chuck 4° 30' HSK-A 63 A 120 s 30 8329 Garant Shrink-fit chuck 4° 30', with through coolant feed HSK-A 63 A 120 s 30 8334 jftoGanmt' J Shrink-fit chuck 4° 30' HSK-A 63 A 160 0D2 mm 15 15 18 18 00 mm 30 30 33 33 D D2T Di -4" J4°3C )- th 644 Main catalogue Hoffmann Group 46
