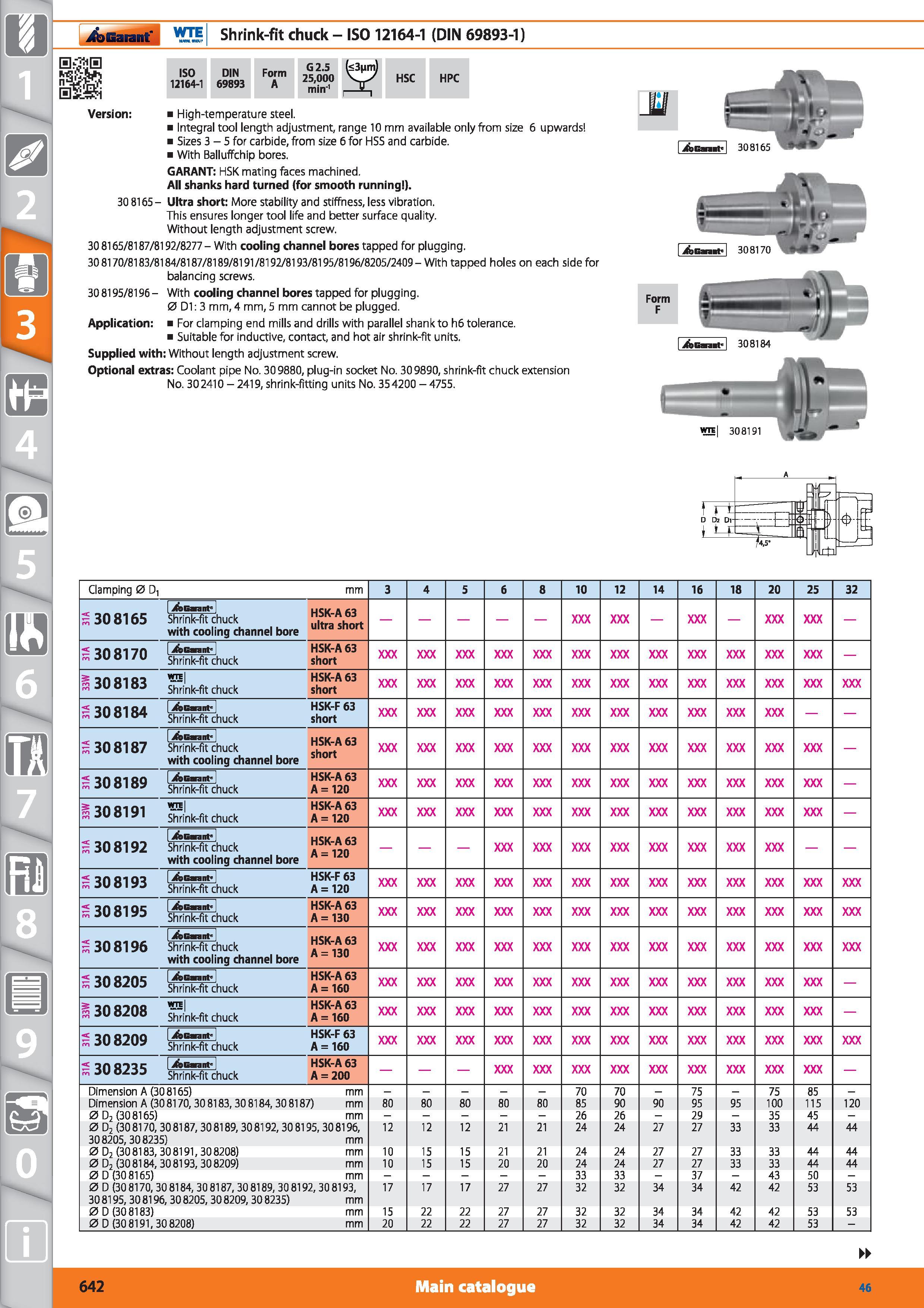

Garant TE Shrink-fit chuck - ISO 12164-1 (DIN 69893-1) iso 12164-1 DIN 69893 Form A G2.5 25,000 min'1 HSC HPC Version High-temperature steel. Integral tool length adjustment, range 10 mm available only from size 6 upwards Sizes 3 - 5 for carbide, from size 6 for HSS and carbide. With Balluffchip bores. GARANT HSK mating faces machined. All shanks hard turned (for smooth running ). 30 8165 - Ultra short More stability and stiffness, less vibration. This ensures longer tool life and better surface quality. Without length adjustment screw. 30 8165/8187/8192/8277 - With cooling channel bores tapped for plugging. 30 8170/8183/8184/8187/8189/8191/8192/8193/8195/8196/8205/2409 - With tapped holes on each side for balancing screws. 308195/8196- With cooling channel bores tapped for plugging. 0 DI 3 mm, 4 mm, 5 mm cannot be plugged. Application For clamping end mills and drills with parallel shank to h6 tolerance. Suitable for inductive, contact, and hot air shrink-fit units. Supplied with Without length adjustment screw. Optional extras Coolant pipe No. 309880, plug-in socket No. 309890, shrink-fit chuck extension No. 302410 - 2419, shrink-fitting units No. 354200 - 4755. , t - T L. \ i U J IT f .y I H 8 0 JJ Clamping 0 D, mm 3 4 5 6 8 10 12 14 16 18 20 25 32 s 30 8165 XbGvant' Shrink-fit chuck with cooling channel bore HSK-A 63 ultra short s 30 8170 ifeGmnf’l Shrink-fit chuck HSK-A 63 short S 30 8183 W1l Shrink-fit chuck HSK-A 63 short 30 8184 itbGnnt" Shrink-fit chuck HSK-F 63 short s 30 8187 jfeGmnt'11 Shrink-fit chuck with cooling channel bore HSK-A 63 short 308189 ifeGmnf11 Shrink-fit chuck HSK-A 63 A 120 8 30 8191 W1l Shrink-fit chuck HSK-A 63 A 120 s 30 8192 J&Gmnpj Shrink-fit chuck with cooling channel bore HSK-A 63 A 120 s 30 8193 jftoGannit' J Shrink-fit chuck HSK-F 63 A 120 s 30 8195 ifecmnt" Shrink-fit chuck HSK-A 63 A 130 30 8196 ifeGmnf’l Shrink-fit chuck with cooling channel bore HSK-A 63 A 130 30 8205 ifecmnt" Shrink-fit chuck HSK-A 63 A 160 S 30 8208 W1l Shrink-fit chuck HSK-A 63 A 160 308209 itbcnnt" Shrink-fit chuck HSK-F 63 A 160 308235 jfeGmnt'11 Shrink-fit chuck HSK-A 63 A 200 Dimension A (308165) mm - 70 70 - 75 - 75 85 - Dimension A (30 8170,30 8183,30 8184,30 8187) mm 80 80 80 80 80 85 90 90 95 95 100 115 120 0D2 (308165) mm - 26 26 - 29 - 35 45 - 0 D2 (30 8170,30 8187,30 8189,30 8192,30 8195,30 8196, 308205,308235) mm 12 12 12 21 21 24 24 27 27 33 33 44 44 0 D2 (308183,308191,308208) mm 10 15 15 21 21 24 24 27 27 33 33 44 44 0 D2 (30 8184,30 8193,30 8209) mm 10 15 15 20 20 24 24 27 27 33 33 44 44 0D (308165) mm 33 33 37 43 50 0 D (30 8170,30 8184,30 8187,30 8189,30 8192,30 8193, 30 8195,30 8196,30 8205,30 8209,30 8235) mm 17 17 17 27 27 32 32 34 34 42 42 53 53 0D (308183) mm 15 22 22 27 27 32 32 34 34 42 42 53 53 0D (308191,308208) mm 20 22 22 27 27 32 32 34 34 42 42 53 - I jfocaraat' 308165 Form F I /bEaraat' 308184 642 Main catalogue Hoffmann Group 46
