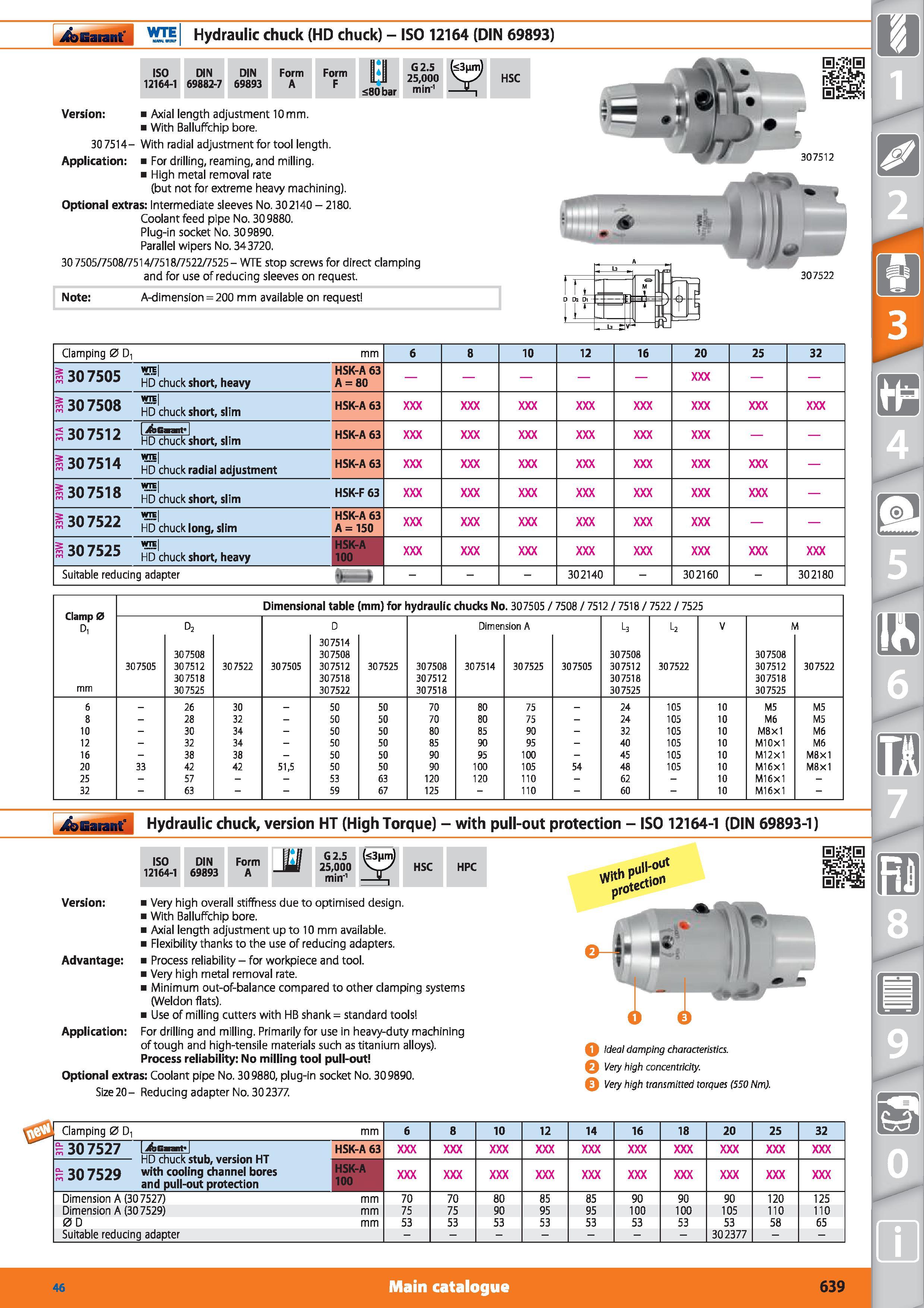

Garant Ydi Hydraulic chuck (HD chuck) - ISO 12164 (DIN 69893) iso 12164-1 DIN 69882-7 DIN 69893 Form A Form F It 80 bar G2.5 25,000 min'1 HSC Version Axial length adjustment 10 mm. With Balluffchip bore. 30 7514- With radial adjustment for tool length. Application For drilling, reaming, and milling. High metal removal rate (but not for extreme heavy machining). Optional extras Intermediate sleeves No. 302140 - 2180. Coolant feed pipe No. 309880. Plug-in socket No. 309890. Parallel wipers No. 34 3720. 307505/7508/7514/7518/7522/7525- WTE stop screws for direct clamping and for use of reducing sleeves on request. Note A-dimension 200 mm available on request 307522 Clamping 0 D, mm 6 8 10 12 16 20 25 32 1307505 wte HD chuck short, heavy HSK-A 63 A 80 1307508 WTE HD chuck short, slim HSK-A 63 3 307512 ifeGmnt” HD chuck short, slim HSK-A 63 1307514 wte HD chuck radial adjustment HSK-A 63 1307518 wte HD chuck short, slim HSK-F 63 1307522 wte HD chuck long, slim HSK-A 63 A 150 1307525 wte HD chuck short, heavy HSK-A 100 Suitable reducing adapter Bl - 302140 - 302160 - 302180 Clamp 0 Di mm Dimensional table (mm) for hydraulic chucks No. 30 7505 / 7508 / 7512 / 7518 / 7522 / 7525 307505 d2 307508 307512 307518 307525 307522 307505 D 307514 307508 307512 307518 307522 307525 307508 307512 307518 Dimen 307514 sion A 307525 307505 l3 307508 307512 307518 307525 L-2 307522 V 307508 307512 307518 307525 307522 6 - 26 30 - 50 50 70 80 75 - 24 105 10 M5 M5 8 - 28 32 - 50 50 70 80 75 - 24 105 10 M6 M5 10 - 30 34 - 50 50 80 85 90 - 32 105 10 M8x1 M6 12 - 32 34 - 50 50 85 90 95 - 40 105 10 M10X1 M6 16 - 38 38 - 50 50 90 95 100 - 45 105 10 M12x1 M8X1 20 33 42 42 51,5 50 50 90 100 105 54 48 105 10 M16x1 M8x1 25 - 57 53 63 120 120 110 - 62 - 10 M16x1 - 32 - 63 59 67 125 - 110 - 60 - 10 M16x1 - nUi Hydraulic chuck, version HT (High Torque) - with pull-out protection - ISO 12164-1 (DIN 69893-1) iso 12164-1 DIN 69893 Form A G2.5 25,000 min'1 HSC HPC Version Very high overall stiffness due to optimised design. With Balluffchip bore. Axial length adjustment up to 10 mm available. Flexibility thanks to the use of reducing adapters. Advantage Process reliability - for workpiece and tool. Very high metal removal rate. Minimum out-of-balance compared to other clamping systems (Weldon flats). Use of milling cutters with HB shank standard tools Application For drilling and milling. Primarily for use in heavy-duty machining of tough and high-tensile materials such as titanium alloys). Process reliability No milling tool pull-out Optional extras Coolant pipe No. 309880, plug-in socket No. 30 9890. Size 20- Reducing adapter No. 302377. Very high concentricity. Q Very high transmitted torques (550 Nm). Clamping 0 mm 6 8 10 12 14 16 18 20 25 32 s 30 7527 I jfecnnt I HD chuck stub, version HT with cooling channel bores and pull-out protection HSK-A 63 3 307529 HSK-A 100 Dimension A (307527) mm 70 70 80 85 85 90 90 90 120 125 Dimension A (307529) mm 75 75 90 95 95 100 100 105 110 110 0 D mm 53 53 53 53 53 53 53 53 58 65 Suitable reducing adapter - 302377 Main catalogue Hoffmann Group 46 639
