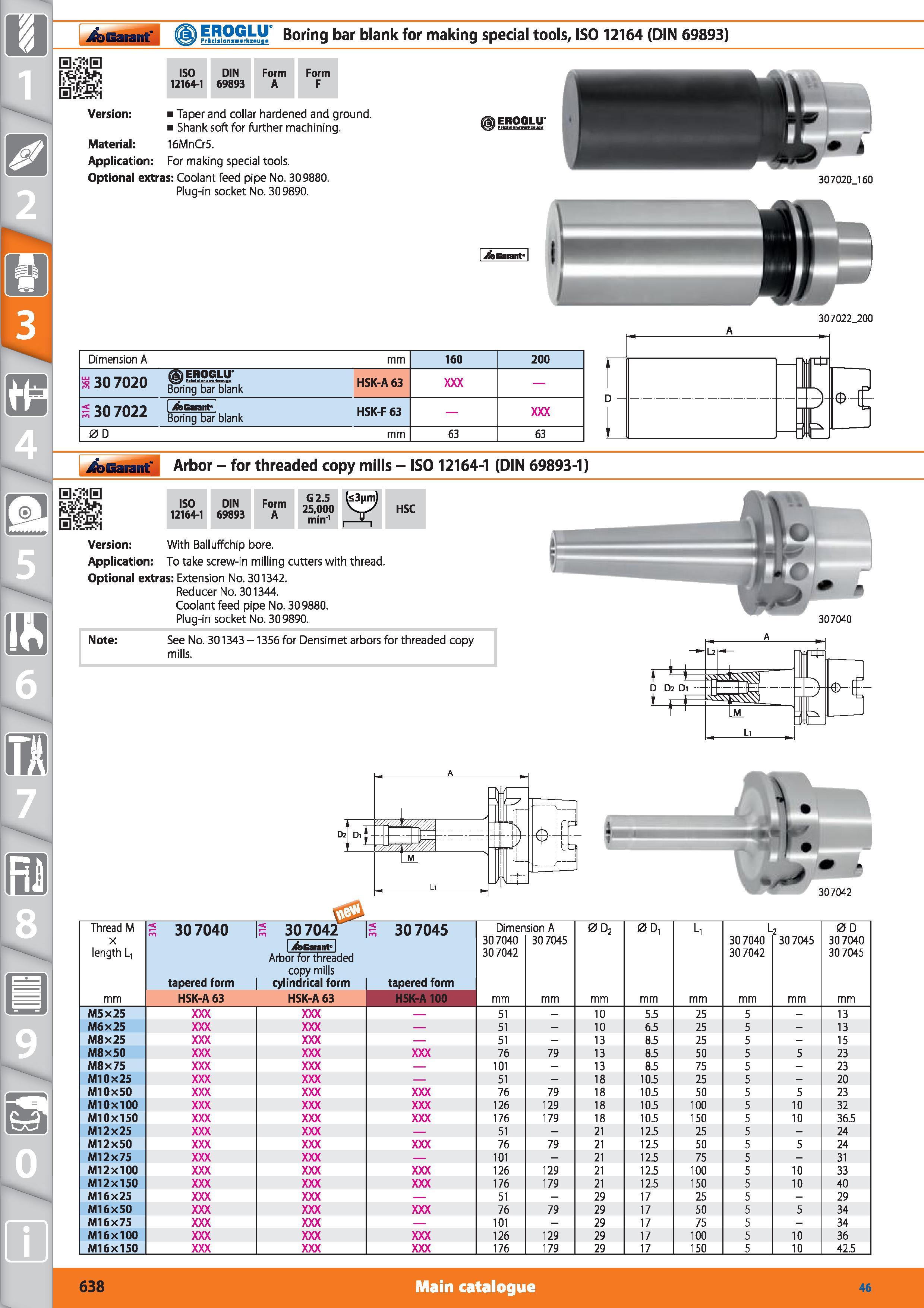

jfoGarant j ISSSkM Boring bar blank for making special tools, ISO 12164 (DIN 69893) m ISO 12164-1 DIN 69893 Form A Form F Version Taper and collar hardened and ground. Shank soft for further machining. Material 16MnCrS. Application For making special tools. Optional extras Coolant feed pipe No. 309880. Plug-in socket No. 309890. JiEROGLU' J 307020J 60 307022_200 Dimension A mm 160 200 307020 SS) EROGLU' Boring bar blank HSK-A 63 s 30 7022 Xb Garant Boring bar blank HSK-F 63 0 D mm 63 63 iCbBarant' ( Arbor - for threaded copy mills - ISO 12164-1 (DIN 69893-1) ISO 12164-1 DIN 69893 Form A G2.5 25,000 min'1 HSC Version With Balluffchip bore. Application To take screw-in milling cutters with thread. Optional extras Extension No. 301342. Reducer No. 301344. Coolant feed pipe No. 309880. Plug-in socket No. 309890. x< 307040 Note See No. 301343 -1356 for Densimet arbors for threaded copy mills. g 307042 S 30 7045 Thread M X length L, s 307040 tapered form t 307042' 1 Garant I Arbor for threaded copy mills cylindrical form H 30 7045 tapered form Dimen 307040 307042 sion A 30 7045 0D2 0D, L, L 307040 307042 2 30 7045 0 D 30 7040 30 7045 mm HSK-A 63 HSK-A 63 HSK-A 100 mm M5x25 51 10 5.5 25 5 13 M6x25 51 - 10 6.5 25 5 - 13 M8x25 51 - 13 8.5 25 5 - 15 M8X50 76 79 13 8.5 50 5 5 23 M8X75 101 - 13 8.5 75 5 - 23 M10X25 51 - 18 10.5 25 5 - 20 M10x50 76 79 18 10.5 50 5 5 23 MIOxlOO 126 129 18 10.5 100 5 10 32 M10X150 176 179 18 10.5 150 5 10 36.5 M12X25 51 - 21 12.5 25 5 - 24 M12X50 76 79 21 12.5 50 5 5 24 M12X75 101 21 12.5 75 5 31 M12X100 126 129 21 12.5 100 5 10 33 M12X150 176 179 21 12.5 150 5 10 40 M16X25 51 - 29 17 25 5 - 29 M16X50 76 79 29 17 50 5 5 34 M16X75 101 - 29 17 75 5 - 34 M16X100 126 129 29 17 100 5 10 36 M16X150 176 179 29 17 150 5 10 42.5 638 Main catalogue Hoffmann Group 46
