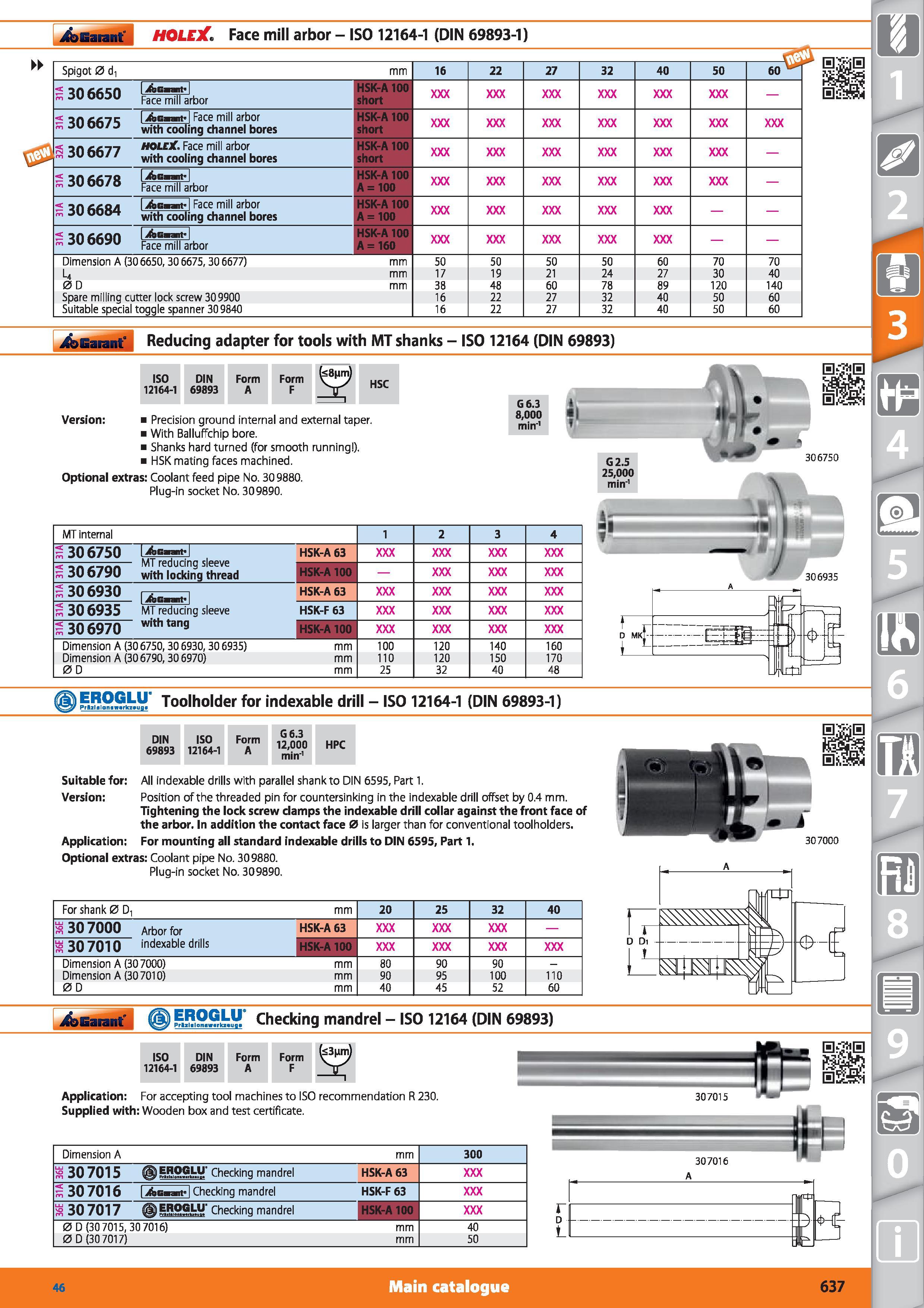

637 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.637

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 637 0637 ENG Lab2u

i&Garanf HOLEX Face mill arbor - ISO 12164-1 (DIN 69893-1) Spigot 0 d. mm 16 22 27 32 40 50 60 306650 I jfbGsant HSK-A 100 short Face mill arbor 30 6675 i&Graf Face mill arbor HSK-A 100 short with cooling channel bores 306677 holejC' Face mill arbor with cooling channel bores HSK-A 100 short 30 6678 I jfacmnt HSK-A 100 A 100 Face mill arbor 306684 jfecnrt Face mill arbor HSK-A 100 A 100 with cooling channel bores 306690 I jfecnnt HSK-A 100 A 160 Face mill arbor Dimension A (30 6650,30 6675,30 6677) mm 50 50 50 50 60 70 70 L4 mm 17 19 21 24 27 30 40 00 mm 38 48 60 78 89 120 140 Spare milling cutter lock screw 309900 16 22 27 32 40 50 60 Suitable special toggle spanner 309840 16 22 27 32 40 50 60 XbGaiantf Reducing adapter for tools with MT shanks - ISO 12164 (DIN 69893) iso 12164-1 DIN 69893 Form A Form F HSC Version Precision ground internal and external taper. With Balluffchip bore. Shanks hard turned (for smooth running ). HSK mating faces machined. Optional extras Coolant feed pipe No. 309880. Plug-in socket No. 309890. G6.3 8,000 min'1 I f1 G2.5 25,000 min'1 306750 MT internal 1 2 3 4 306750 1 ifecnnt 1 HSK-A 63 306790 with locking thread HSK-A 100 306930 HSK-A 63 306935 MT reducing sleeve HSK-F 63 306970 with tang HSK-A 100 Dimension A (30 6750,30 6930,30 6935) mm 100 120 140 160 Dimension A (306790,306970) mm 110 120 150 170 00 mm 25 32 40 48 306935 r D MKT -E33 - 4>- Toolholder for indexable drill - ISO 12164-1 (DIN 69893-1) DIN 69893 ISO 12164-1 Form A G6.3 12,000 min-1 HPC Suitable for Version All indexable drills with parallel shank to DIN 6595, Part 1. Position of the threaded pin for countersinking in the indexable drill offset by 0.4 mm. Tightening the lock screw clamps the indexable drill collar against the front face of the arbor. In addition the contact face 0 is larger than for conventional toolholders. For mounting all standard indexable drills to DIN 6595, Part 1. Optional extras Coolant pipe No. 309880. Plug-in socket No. 309890. Application 307000 For shank 0 D, mm 20 25 32 40 ” 30 7000 Arbor for HSK-A 63 30 7010 indexable drills HSK-A 100 Dimension A (307000) mm 80 90 90 Dimension A (307010) mm 90 95 100 110 00 mm 40 45 52 60 I D Di f 1 j 11 1 j -e-f- j&Gaiant' Checking mandrel - ISO 12164 (DIN 69893) iso 12164-1 DIN 69893 Form A Form F Application For accepting tool machines to ISO recommendation R 230. Supplied with Wooden box and test certificate. Dimension A mm 300 8 30 7015 1IS95 Checking mandrel HSK-A 63 30 7016 Am Checking mandrel HSK-F 63 S 30 7017 Checking mandrel HSK-A 100 0D (30 7015, 30 7016) mm 40 0 0 (30 7017) mm 50 Main catalogue Hoffmann Group 46 637
