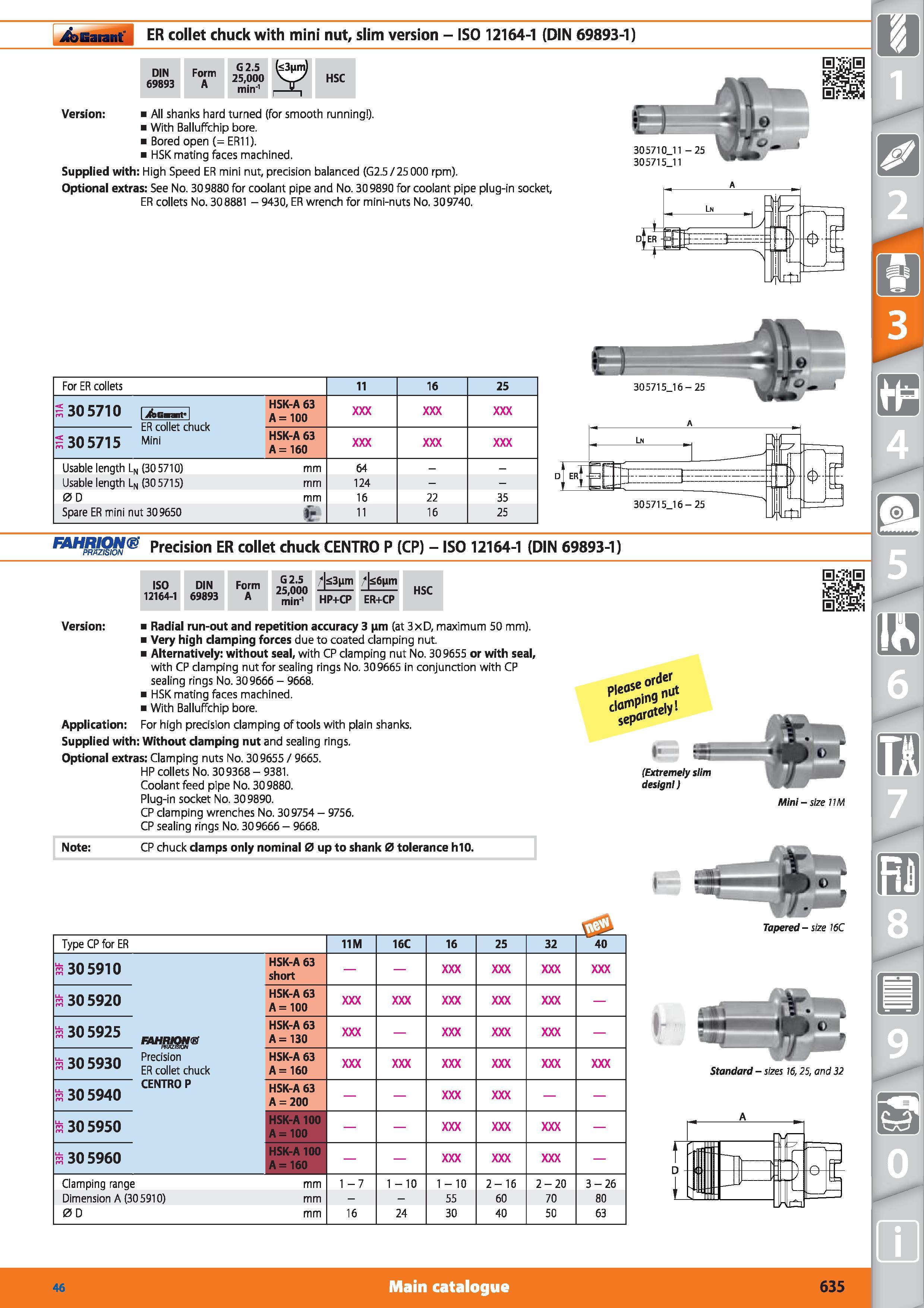

Garant ER collet chuck with mini nut, slim version - ISO 12164-1 (DIN 69893-1) DIN 69893 Form A G 2.5 (s3(jm) 25,000 min'1 S-j HSC Version All shanks hard turned (for smooth running ). With Balluffchip bore. Bored open (= ER11). HSK mating faces machined. Supplied with High Speed ER mini nut, precision balanced (G2.5/25 000 rpm). Optional extras See No. 309880 for coolant pipe and No. 309890 for coolant pipe plug-in socket, ER collets No. 308881 - 9430, ER wrench for mini-nuts No. 309740. 305710J1 -25 305715_11 Dfp5S 3f- U UL+ For ER collets 11 16 25 Z 30 5710 I j&Gmnt” 1 HSK-A 63 A 100 H 30 5715 Mini HSK-A 63 A 160 Usable length LN (305710) mm 64 Usable length LN (305715) mm 124 0 D mm 16 22 35 Spare ER mini nut 309650 11 16 25 D ERT -p3' - 305715 16 - 25 Precision ER collet chuck CENTRO P (CP) - ISO 12164-1 (DIN 69893-1) iso 12164-1 DIN 69893 Form A 25,0M min'1 HP+CP ER+CP HSC Version Radial run-out and repetition accuracy 3 nm (at 3xD, maximum 50 mm). Very high clamping forces due to coated clamping nut. Alternatively without seal, with CP clamping nut No. 309655 or with seal, with CP clamping nut for sealing rings No. 309665 in conjunction with CP sealing rings No. 309666 - 9668. HSK mating faces machined. With Balluffchip bore. Application For high precision clamping of tools with plain shanks. Supplied with Without clamping nut and sealing rings. Optional extras Clamping nuts No. 309655 / 9665. HP collets No. 309368 - 9381. Coolant feed pipe No. 309880. Plug-in socket No. 309890. CP clamping wrenches No. 309754 - 9756. CP sealing rings No. 309666 - 9668. (Extremely slim designl) Mini - size 11M Note CP chuck clamps only nominal 0 up to shank 0 tolerance hlO. Type CP for ER 11M 16C 16 25 32 40 a 305910 HSK-A 63 short a 30 5920 HSK-A 63 A 100 a 30 5925 FAHRtQNY HSK-A 63 A 130 - 30 5930 Precision m 3U J - u ER C0 et chuck HSK-A 63 A 160 CENTRO P a 30 5940 HSK-A 63 A 200 a 30 5950 HSK-A 100 A 100 a 30 5960 HSK-A 100 A 160 Clamping range mm 1 -7 1 -10 1 - 10 2-16 2-20 3-26 Dimension A (305910) mm 55 60 70 80 0 D mm 16 24 30 40 50 63 Standard - sizes 16,25, and 32 Main catalogue Hoffmann Group 46 635
