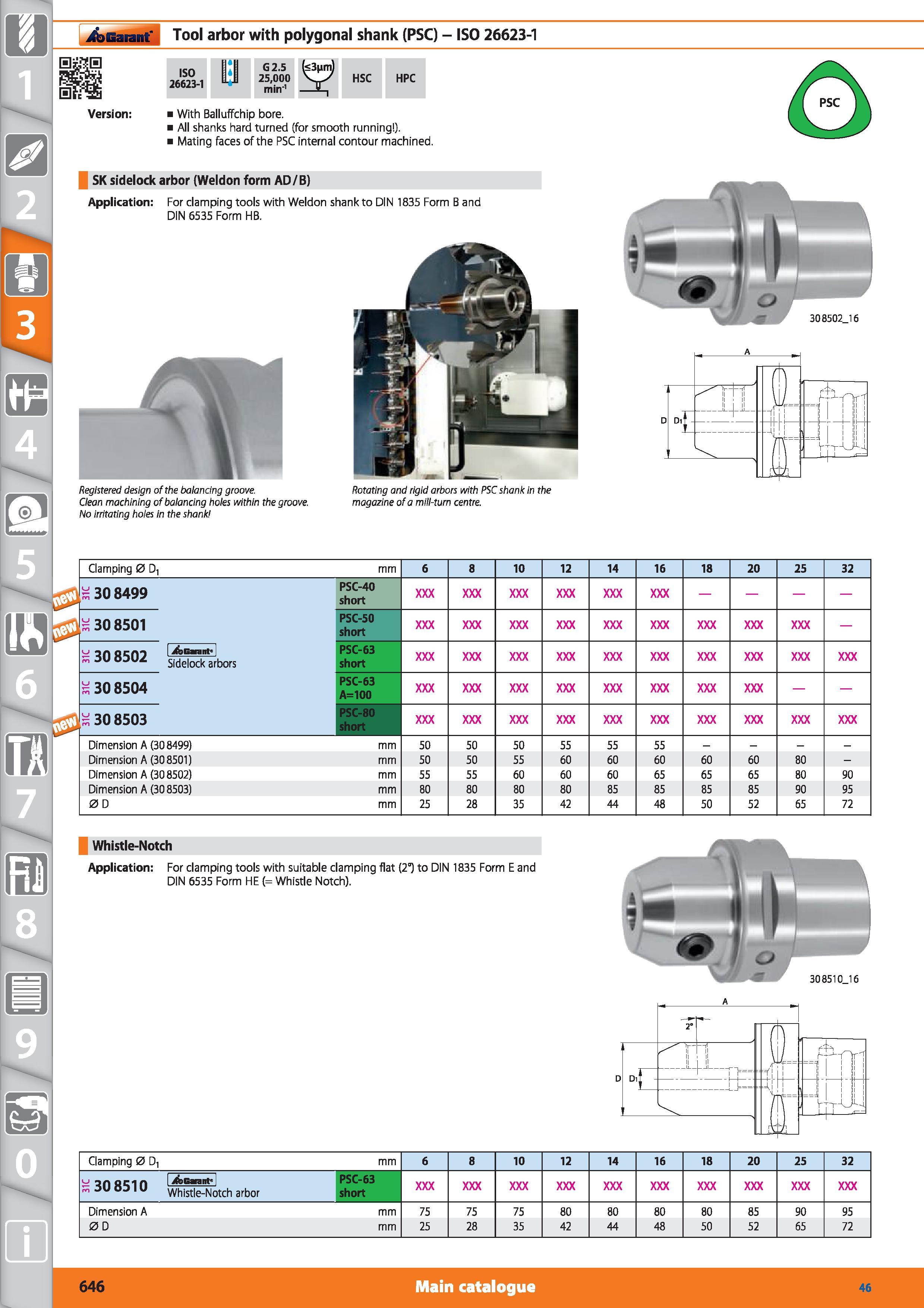

Garant Tool arbor with polygonal shank (PSC) - ISO 26623-1 iso 26623-1 G2.5 25,000 min-1 1 HSC HPC i With Balluffchip bore. i All shanks hard turned (for smooth running ), i Mating faces of the PSC internal contour machined. SK sidelock arbor (Weldon form AD/B) Application For clamping tools with Weldon shank to DIN 1835 Form B and DIN 6535 Form HB. Registered design of the balancing groove. Clean machining of balancing holes within the groove. No irritating holes in the shank Rotating and rigid arbors with PSC shank in the magazine of a mill-turn centre. 308502.16 A V-l-V D Di “fj r lr Clamping 0 Dy mm 6 8 10 12 14 16 18 20 25 32 ),a 308499 PSC-40 short la 308501 PSC-50 short u 1(1 Aaranf 3U oauz sidelock arbors PSC-63 short a 30 8504 PSC-63 A=100 la 308503 PSC-80 short Dimension A (308499) mm 50 50 50 55 55 55 Dimension A (308501) mm 50 50 55 60 60 60 60 60 80 - Dimension A (308502) mm 55 55 60 60 60 65 65 65 80 90 Dimension A (308503) mm 80 80 80 80 85 85 85 85 90 95 0 D mm 25 28 35 42 44 48 50 52 65 72 Whistle-Notch Application For clamping tools with suitable clamping flat (2°) to DIN 1835 Form E and DIN 6535 Form HE (= Whistle Notch). 308510 16 2" i ii 6 \ ii ii M-t> 1 yr j D Dij - 1 -4 1 1 i i ) i Clamping 0 mm 6 8 10 12 14 16 18 20 25 32 -30 8510 1 Aoaant-mJUMIU Whistle-Notch arbor PSC-63 short Dimension A mm 75 75 75 80 80 80 80 85 90 95 0 D mm 25 28 35 42 44 48 50 52 65 72 646 Main catalogue Hoffmann Group 46
