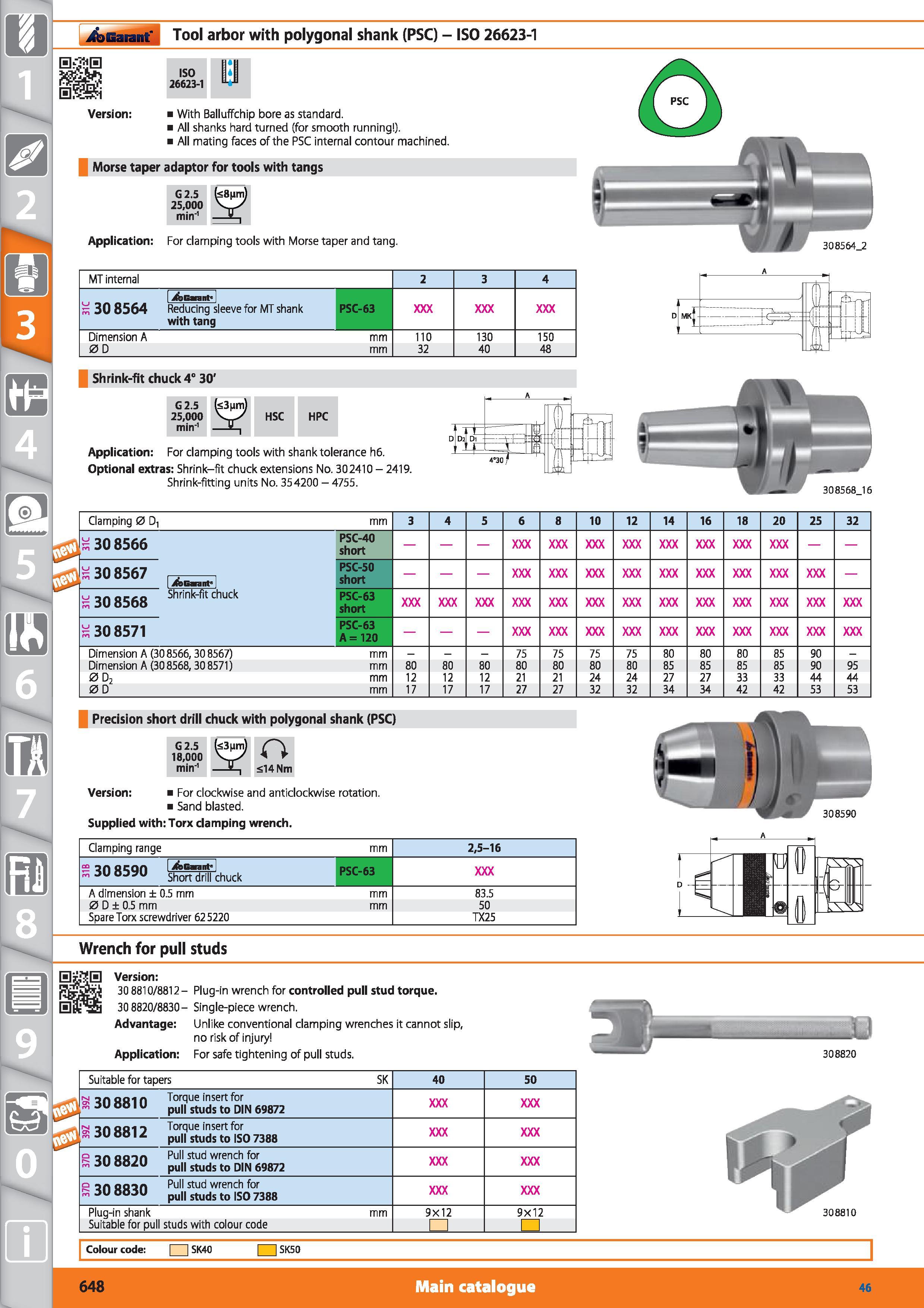

s.- is Tool arbor with polygonal shank (PSC) - ISO 26623-1 H ISO 26623-1 Version i With Balluffchip bore as standard. i All shanks hard turned (for smooth running ). i All mating faces of the PSC internal contour machined. Morse taper adaptor for tools with tangs G 2.5 25,000 min'1 Application For clamping tools with Morse taper and tang. MT internal 2 3 4 a 30 8564 i&Gannt 1 Reducing sleeve for MT shank with tang PSC-63 Dimension A mm 110 130 150 0D mm 32 40 48 Shrink-fit chuck 4° 30' G 2.5 (<3 jm) 25,000 min'1 -2-, Application For clamping tools with shank tolerance h6. Optional extras Shrink-fit chuck extensions No. 302410 - 2419. Shrink-fitting units No. 354200 - 4755. 308568J6 Clamping 0 D, mm 3 4 5 6 8 10 12 14 16 18 20 25 32 a 30 8566 PSC-40 short a 30 8567 , JfOGarant J PSC-50 short nn orto Shrink-fit chuck rn JW oI)0o PSC-63 short a 30 8571 PSC-63 A 120 Dimension A (308566,308567) mm - 75 75 75 75 80 80 80 85 90 - Dimension A (308568,308571) mm 80 80 80 80 80 80 80 85 85 85 85 90 95 0D2 mm 12 12 12 21 21 24 24 27 27 33 33 44 44 0 D mm 17 17 17 27 27 32 32 34 34 42 42 53 53 Precision short drill chuck with polygonal shank (PSC) G 2.5 U3nm) 18,000 V/ r min'1 1L. 14 Nm Version For clockwise and anticlockwise rotation. Sand blasted. Supplied with Torx clamping wrench. Clamping range mm 2,5-16 a 30 8590 Tchuck PSC-63 A dimension ± 0.5 mm 83.5 0 D ± 0.5 mm 50 Spare Torx screwdriver 62 5220 TX25 Wrench for pull studs 30 8810/8812 - Plug-in wrench for controlled pull stud torque. 308820/8830- Single-piece wrench. Advantage Unlike conventional clamping wrenches it cannot slip, no risk of injury Application For safe tightening of pull studs. 308820 m Suitable for tapers SK 40 50 vs 308810 Torque insert for pull studs to DIN 69872 vs 308812 Torque insert for pull studs to ISO 7388 ii 30 8820 Pull stud wrench for pull studs to DIN 69872 a 30 8830 Pull stud wrench for pull studs to ISO 7388 Plug-in shank mm 9x12 9x12 Suitable for pull studs with colour code 308810 Colour code SK40 SK50 648 Main catalogue
