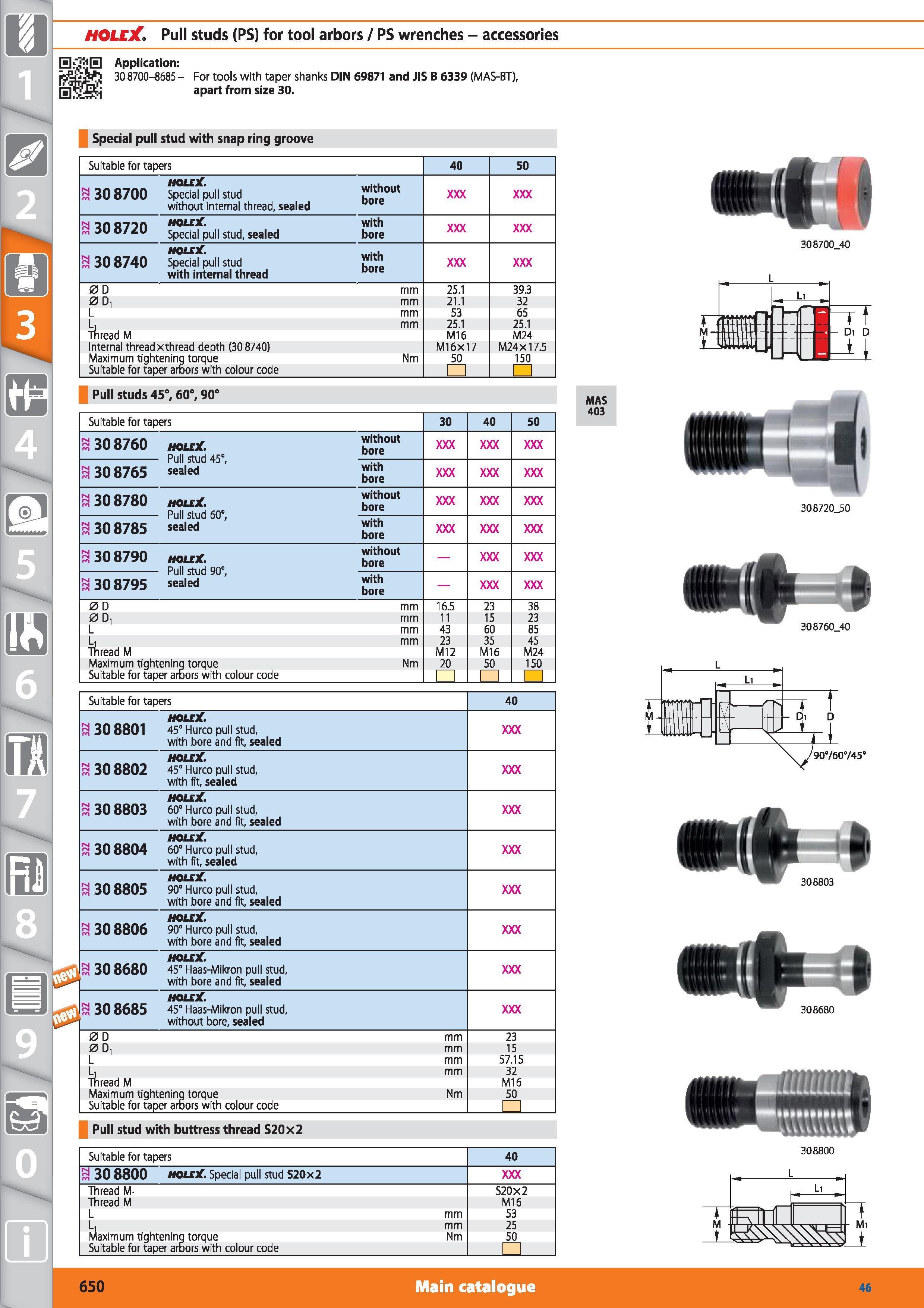

HOLEX Pull studs (PS) for tool arbors / PS wrenches - accessories Application jj&Wj 30 8700-8685- For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT), ji f y apart from size 30. Special pull stud with snap ring groove Suitable for tapers 40 50 30 8700 HOLEX Special pull stud without internal thread, sealed without bore s 30 8720 HOLEX Special pull stud, sealed with bore pj 30 8740 HOLEX Special pull stud with internal thread with bore 0D mm 25.1 39.3 0 D, mm 21.1 32 L mm 53 65 L, mm 25.1 25.1 Thread M M16 M24 Internal thread xthread depth (308740) M16x17 M24X17.5 Maximum tightening torque Suitable for taper arbors with colour code Nm 50 150 Pull studs 45°, 60°, 90° Suitable for tapers 30 40 50 s 30 8760 HOLEX Pull stud 45°, sealed without bore h 30 8765 with bore 30 8780 HOLEX Pull stud 60°, sealed without bore 30 8785 with bore pj 30 8790 HOLEX Pull stud 90°, sealed without bore 3 30 8795 with bore 0 D mm 16.5 23 38 0 Di mm 11 15 23 L mm 43 60 85 L, mm 23 35 45 Thread M M12 M16 M24 Maximum tightening torque Suitable for taper arbors with colour code Nm 20 50 150 LJ LJ LJ Suitable for tapers 40 8 30 8801 HOLEX 45° Hurco pull stud, with bore and fit, sealed 30 8802 HOLEX 45° Hurco pull stud, with fit, sealed pj 30 8803 HOLEX 60° Hurco pull stud, with bore and fit, sealed pj 30 8804 HOLEX 60° Hurco pull stud, with fit, sealed 3 308805 HOLEX 90° Hurco pull stud, with bore and fit, sealed 3 308806 HOLEX 90° Hurco pull stud, with bore and fit, sealed 3 308680 HOLEX 45° Haas-Mikron pull stud, with bore and fit, sealed 3 308685 HOLEX 45° Haas-Mikron pull stud, without bore, sealed 0 D mm 23 0 Di mm 15 L mm 57.15 Thread M mm 32 M16 Maximum tightening torque Suitable for taper arbors with colour code Nm 50 LJ Pull stud with buttress thread S20x2 m Suitable for tapers 40 31 30 8800 HOLEX Special pull stud S20x2 Thread M, S20X2 Thread M M16 L mm 53 Maximum tightening torque Suitable for taper arbors with colour code mm 25 Nm 50 650 MAS 403 308680 308800 308720_50 308760_40 Main catalogue
