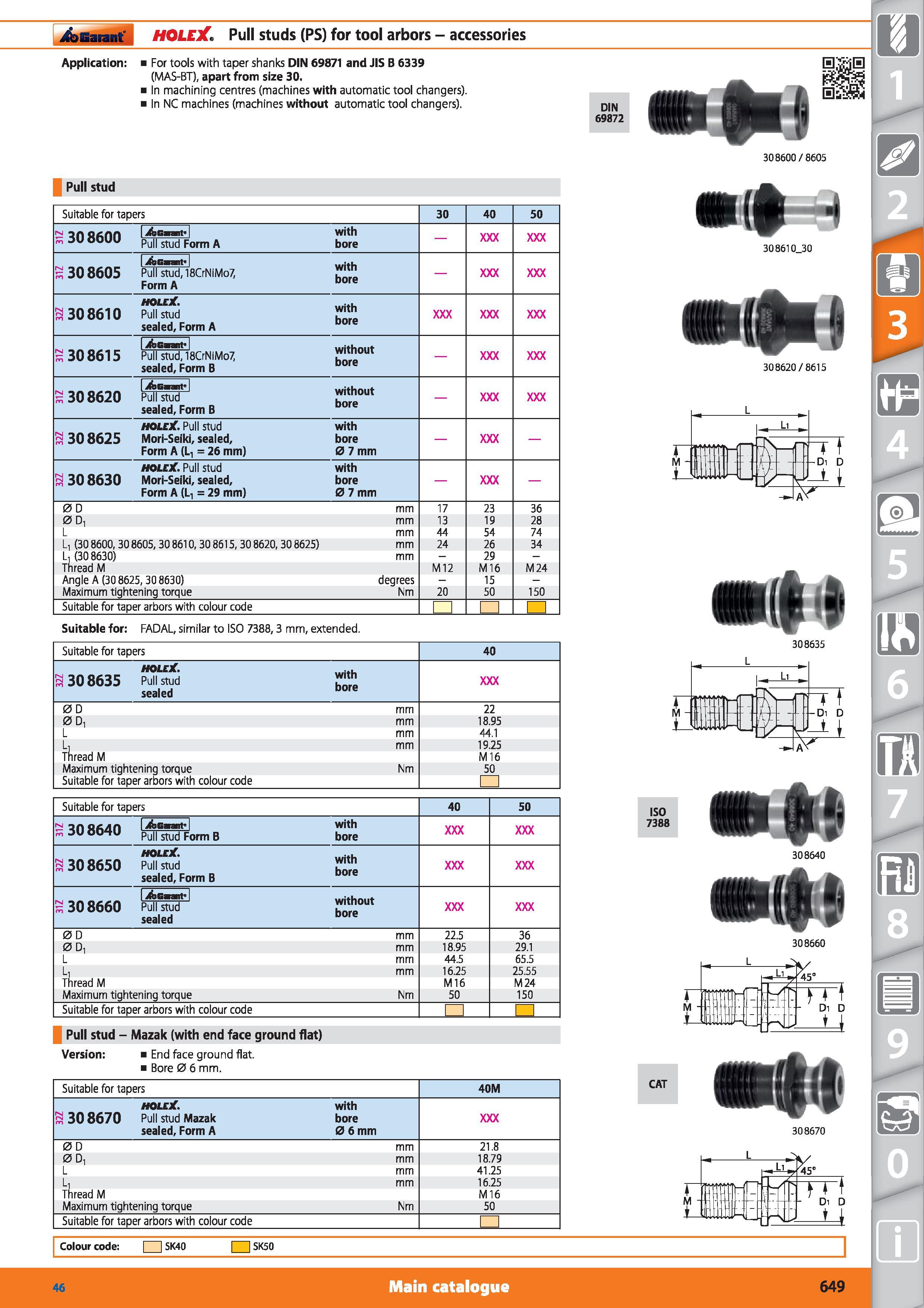

Garant HOLEX Pull studs (PS) for tool arbors - accessories Application For tools with taper shanks DIN 69871 and JIS B 6339 (MAS-BT), apart from size 30. In machining centres (machines with automatic tool changers). In NC machines (machines without automatic tool changers). DIN 69872 Pull stud Suitable for tapers 30 40 50 30 8600 j&Gmnt Pull stud Form A with bore 308605 I jfecmnt Pull stud, 18CrNiMo7, Form A with bore 308610 hqleX. Pull stud sealed. Form A with bore 308615 (i&Grait Pull stud, 18CrNiMo7, sealed. Form B without bore 308620 ifeGmnt” Pull stud sealed. Form B without bore 308625 HOLEX Pull stud Mori-Seiki, sealed. Form A (L, 26 mm) with bore 0 7 mm 308630 HOLEX Pull stud Mori-Seiki, sealed. Form A (L, 29 mm) with bore 0 7 mm 0 D mm 17 23 36 0 0, mm 13 19 28 L mm 44 54 74 L, (30 8600,30 8605,30 8610,30 8615,30 8620,30 8625) mm 24 26 34 L, (308630) mm - 29 - Thread M M12 M16 M24 Angle A (30 8625,308630) degrees 15 Maximum tightening torque Nm 20 50 150 Suitable for taper arbors with colour code Suitable for FADAL, similar to ISO 7388,3 mm, extended. Suitable for tapers 40 HOLEX 30 8635 Pull stud sealed with bore 0 D mm 22 0D, mm 18.95 L mm 44.1 L, mm 19.25 Thread M M16 Maximum tightening torque Nm 50 Suitable for taper arbors with colour code Suitable for tapers 40 50 308640 (ifeGrait1' Pull stud Form B with bore 308650 HOLEX Pull stud sealed. Form B with bore 308660 (ifeGant1' Pull stud sealed without bore 00 mm 22.5 36 0 0, mm 18.95 29.1 L mm 44.5 65.5 L, mm 16.25 25.55 Thread M M16 M24 Maximum tightening torque Nm 50 150 Suitable for taper arbors with colour code Pull stud - Mazak (with end face ground flat) Version End face ground flat. Bore 0 6 mm. Suitable for tapers 40M 308670 hqlejC. Pull stud Mazak sealed. Form A with bore 0 6 mm 00 mm 21.8 0 0, mm 18.79 L mm 41.25 L, mm 16.25 Thread M M16 Maximum tightening torque Nm 50 Suitable for taper arbors with colour code Colour code SK40 SK50 308635 ISO 7388 308640 /mmmfA j, Ep iyi j 308660 308620/8615 308670 308610_30 308600/8605 0 m Main catalogue Hoffmann Group 46 649
