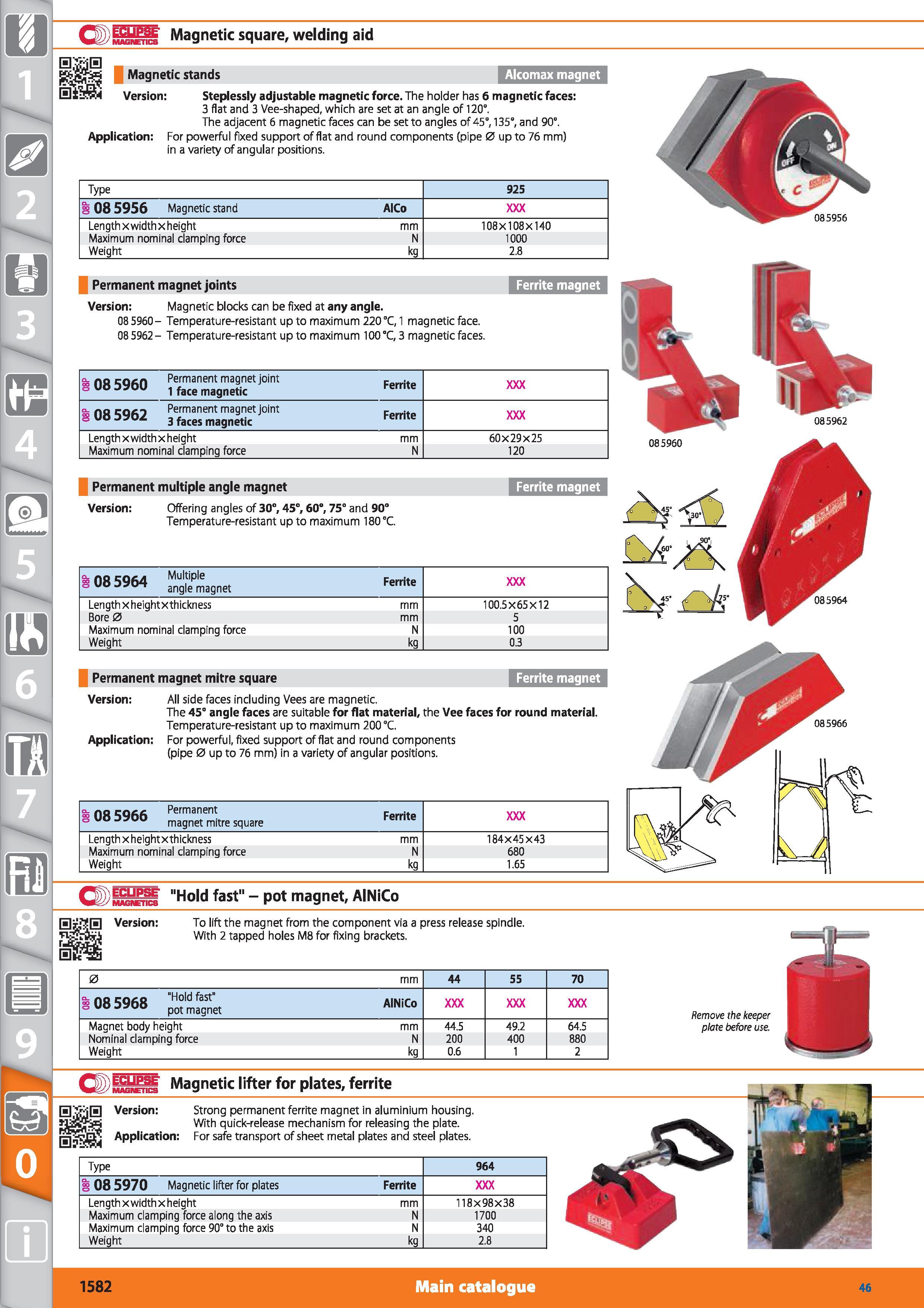

pECUEgE Magnetic square, welding aid Magnetic stands Version Alcomax magnet Steplessly adjustable magnetic force. The holder has 6 magnetic faces 3 flat and 3 Vee-shaped, which are set at an angle of 120°. The adjacent 6 magnetic faces can be set to angles of 45°, 135°, and 90°. Application For powerful fixed support of flat and round components (pipe 0 up to 76 mm) in a variety of angular positions. Type 925 S 08 5956 Magnetic stand AlCo Length x widthx height mm 108X108X140 Maximum nominal clamping force N 1000 Weight kg 2.8 Permanent magnet joints Version Magnetic blocks can be fixed at any angle. 08 5960- Temperature-resistant up to maximum 220°C, 1 magnetic face. 08 5962- Temperature-resistant up to maximum 100 °C, 3 magnetic faces. Ferrite magnet a. cQfin Permanent magnet joint o uo 3 OU 1 face magnetjc Ferrite - no roci Permanent magnet joint S 08 5962 3 faces magnetic Ferrite Length x widthx height mm 60x29x25 Maximum nominal clamping force N 120 Permanent multiple angle magnet Version Offering angles of 30°, 45°, 60°, 75° and 90° Temperature-resistant up to maximum 180 °C. Permanent magnet mitre square Version Ferrite magnet 108 5964 Mulfiple t o ang e magnet Ferrite Length x heightxthickness mm 100.5X65X12 Bore 0 mm 5 Maximum nominal clamping force N 100 Weight kg 0.3 Ferrite magnet Application All side faces including Vees are magnetic. The 45° angle faces are suitable for flat material, the Vee faces for round material. Temperature-resistant up to maximum 200 °C. For powerful, fixed support of flat and round components (pipe 0 up to 76 mm) in a variety of angular positions. 1085966 Permanent magnet mitre square Ferrite Length x heightxthickness Maximum nominal clamping force Weight mm N kg 184x45 x 43 680 1.65 "Hold fast" - pot magnet, AINiCo To lift the magnet from the component via a press release spindle. With 2 tapped holes M8 for fixing brackets. 0 mm 44 55 70 1085968 AINiCo Magnet body height mm 44.5 49.2 64.5 Nominal clamping force N 200 400 880 Weight kg 0.6 1 2 Remove the keeper plate before use ECUPSj; Magnetic lifter for plates, ferrite Version Strong permanent ferrite magnet in aluminium housing. With quick-release mechanism for releasing the plate. Application For safe transport of sheet metal plates and steel plates. Type 964 1 08 5970 Magnetic lifter for plates Ferrite Length x widthx height mm 118x98x38 Maximum clamping force along the axis N 1700 Maximum clamping force 90° to the axis N 340 Weight kg 2.8 1582 Main catalogue Hoffmann Group 46 085956 085964
