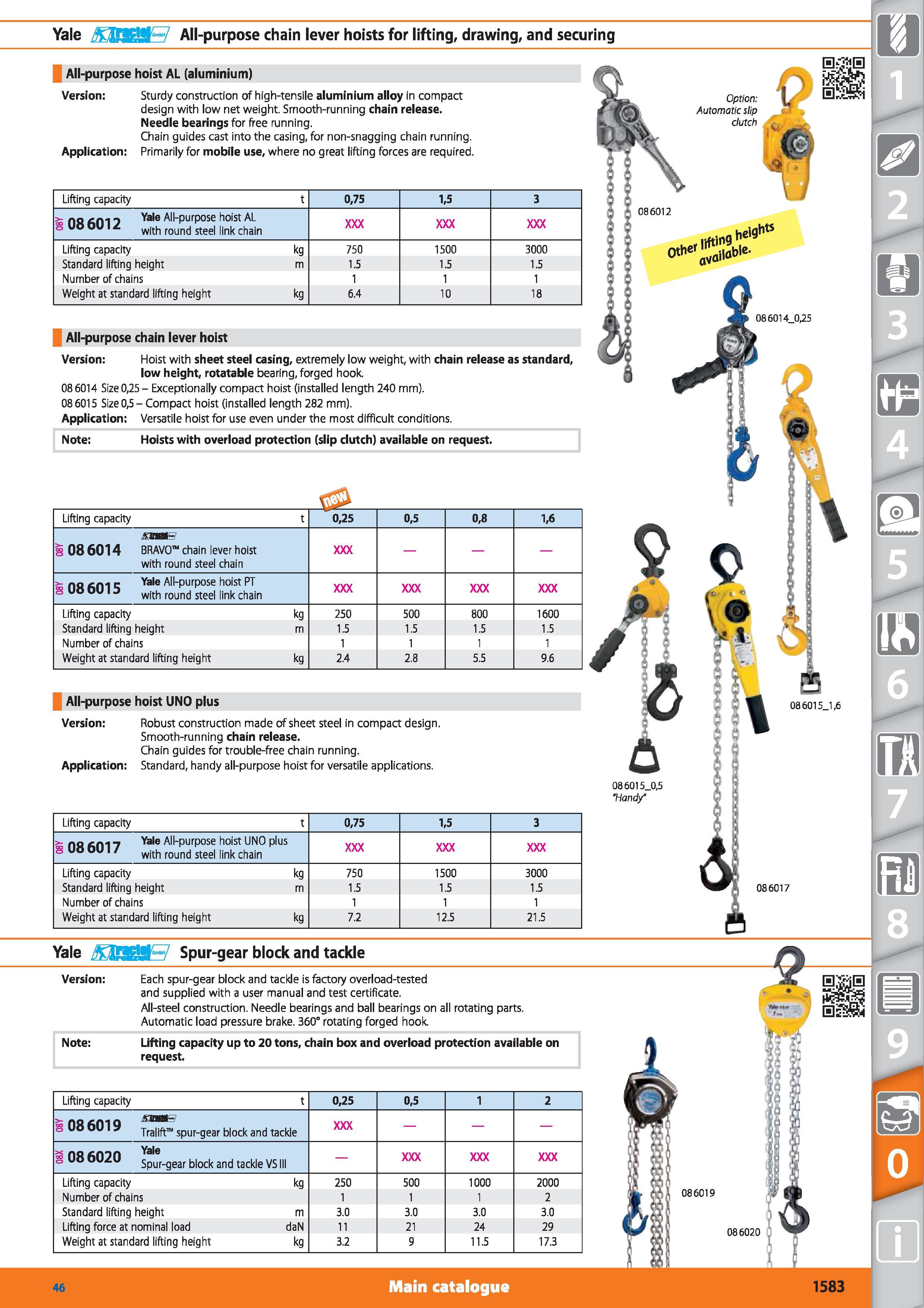

Yale ESSSSS All-purpose chain lever hoists for lifting, drawing, and All-purpose hoist AL (aluminium) Version Application Sturdy construction of high-tensile aluminium alloy in compact design with low net weight. Smooth-running chain release. Needle bearings for free running. Chain guides cast into the casing, for non-snagging chain running. Primarily for mobile use, where no great lifting forces are required. Lifting capacity t 0,75 1,5 3 >- nn (Lt\i j Yale All-purpose hoist AL with round steel link chain Lifting capacity kq 750 1500 3000 Standard lifting height m 1.5 1.5 1.5 Number of chains 1 1 1 Weight at standard lifting height kg 6.4 10 18 All-purpose chain lever hoist Version Hoist with sheet steel casing, extremely low weight, with chain release as standard, low height, rotatable bearing, forged hook. 08 6014 Size 0,25 - Exceptionally compact hoist (installed length 240 mm). 086015 Size0,5-Compact hoist (installed length 282 mm). Application Versatile hoist for use even under the most difficult conditions. Note Hoists with overload protection (slip clutch) available on request. Lifting capacity t 0,25 0,5 0,8 1,6 EWBtS 3 08 6014 BRAVO chain lever hoist with round steel chain >- nQ c Yale All-purpose hoist PT S Uo OU D W t roun(j stee link chajn Lifting capacity kg 250 500 800 1600 Standard lifting height m 1.5 1.5 1.5 1.5 Number of chains 1 Weight at standard lifting height kg 2.4 2.8 5.5 9.6 All-purpose hoist UNO plus Version Robust construction made of sheet steel in compact design. Smooth-running chain release. Chain guides for trouble-free chain running. Application Standard, handy all-purpose hoist for versatile applications. Lifting capacity t 0,75 1,5 3 >- -j Yale All-purpose hoist UNO plus s uo ou witp1 roun(j stee c ajn Lifting capacity kg 750 1500 3000 Standard lifting height m 1.5 1.5 1.5 Number of chains 1 1 1 Weight at standard lifting height kg 7.2 12.5 21.5 Yale EMSSSB Spur-gear block and tackle 9 Version Each spur-gear block and tackle is factory overload-tested and supplied with a user manual and test certificate. All-steel construction. Needle bearings and ball bearings on all rotating parts. Automatic load pressure brake. 360° rotating forged hook. Note Lifting capacity up to 20 tons, chain box and overload protection available on request. a a Lifting capacity t 0,25 0,5 1 2 nn ;ni a o UO OU l TraNft spur.gear b ock and tack e g 08 6020 spur-gear block and tackle VS III Lifting capacity kg 250 500 1000 2000 Number of chains 1 1 1 2 Standard lifting height m 3.0 3.0 3.0 3.0 Lifting force at nominal load daN 11 21 24 29 Weight at standard lifting height kg 3.2 9 11.5 17.3 Main catalogue Hoffmann Group 46 086019 086020 1583 securing 086015_0,5 'Handy Option Automatic slip clutch 086012 irfting hcightS °t ier av i ab'e" 08 6014_0,25 086017 08 6015J ,6
