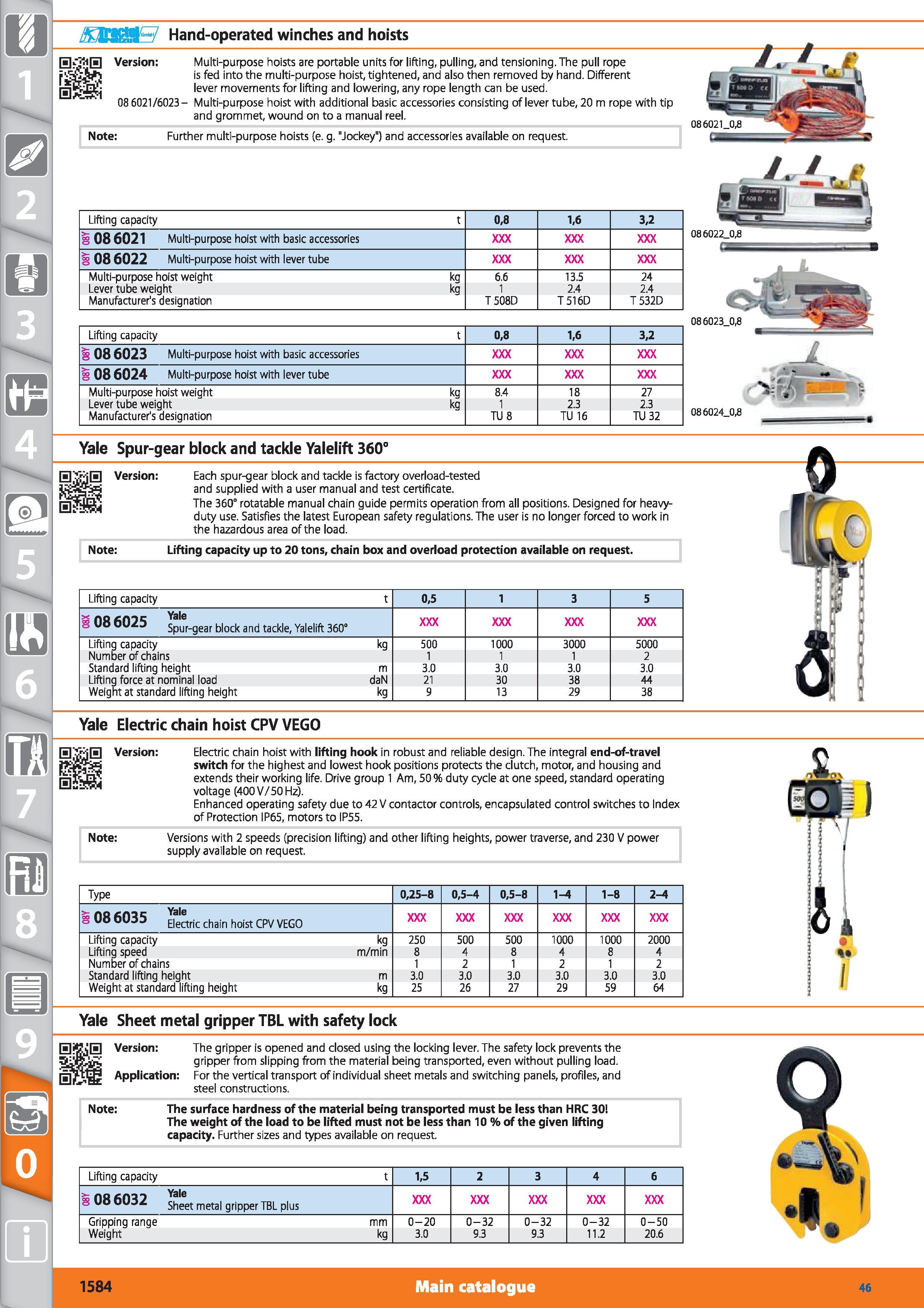

Hand-operated winches and hoists Version Multi-purpose hoists are portable units for lifting, pulling, and tensioning. The pull rope is fed into the multi-purpose hoist, tightened, and also then removed by hand. Different lever movements for lifting and lowering, any rope length can be used. 08 6021/6023 - Multi-purpose hoist with additional basic accessories consisting of lever tube, 20 m rope with tip and grommet, wound on to a manual reel. Note Further multi-purpose hoists (e. g. "Jockey") and accessories available on request. Lifting capacity t 0,8 1,6 3,2 08 6021 Multi-purpose hoist with basic accessories g 08 6022 Multi-purpose hoist with lever tube Multi-purpose hoist weight kg 6.6 13.5 24 Lever tube weight kg 1 2.4 2.4 Manufacturer's designation T508D T516D T532D Lifting capacity t 0,8 1,6 3,2 g 08 6023 Multi-purpose hoist with basic accessories 08 6024 Multi-purpose hoist with lever tube Multi-purpose hoist weight kg 8.4 18 27 Lever tube weight kg 1 2.3 2.3 Manufacturer's designation TU 8 TU 16 TU 32 V'- I re 08 6024_0,8 Yale Spur-gear block and tackle Yalelift 360° I Version Note Each spur-gear block and tackle is factory overload-tested and supplied with a user manual and test certificate. The 360° rotatable manual chain guide permits operation from all positions. Designed for heavy-duty use. Satisfies the latest European safety regulations. The user is no longer forced to work in the hazardous area of the load. Lifting capacity up to 20 tons, chain box and overload protection available on request. Lifting capacity t 0,5 1 3 5 08 6025 Spur-gear block and tackle, Yalelift 360° Lifting capacity kg 500 1000 3000 5000 Number of chains 1 1 1 2 Standard lifting height m 3.0 3.0 3.0 3.0 Lifting force at nominal load daN 21 30 38 44 Weight at standard lifting height kg 9 13 29 38 Yale Electric chain hoist CPV VEGO a Version Electric chain hoist with lifting hook in robust and reliable design. The integral end-of-travel switch for the highest and lowest hook positions protects the clutch, motor, and housing and extends their working life. Drive group 1 Am, 50% duty cycle at one speed, standard operating voltage (400 V/50 Hz). Enhanced operating safety due to 42 V contactor controls, encapsulated control switches to Index of Protection IP65, motors to IP55. Note Versions with 2 speeds (precision lifting) and other lifting heights, power traverse, and 230 V power supply available on request. Type 0,25-8 0,5-4 0,5-8 1-4 1-8 2-4 08 6035 Electric chain hoist CPV VEGO Lifting capacity kg 250 500 500 1000 1000 2000 Lifting speed m/min 8 4 8 4 8 4 Number of chains 1 2 1 2 1 2 Standard lifting height m 3.0 3.0 3.0 3.0 3.0 3.0 Weight at standard lifting height kg 25 26 27 29 59 64 Yale Sheet metal gripper TBL with safety lock Version The gripper is opened and closed using the locking lever. The safety lock prevents the gripper from slipping from the material being transported, even without pulling load. Application For the vertical transport of individual sheet metals and switching panels, profiles, and steel constructions. Note The surface hardness of the material being transported must be less than HRC 30 The weight of the load to be lifted must not be less than 10 of the given lifting capacity. Further sizes and types available on request. Lifting capacity t 1,5 2 3 4 6 s 08 6032 Yale Sheet metal gripper TBL plus Gripping range mm 0-20 0-32 0-32 0-32 0-50 Weight kg 3.0 9.3 9.3 11.2 20.6 086021_0,8 08 6023_0,8 1584 Main catalogue Hoffmann Group 46
