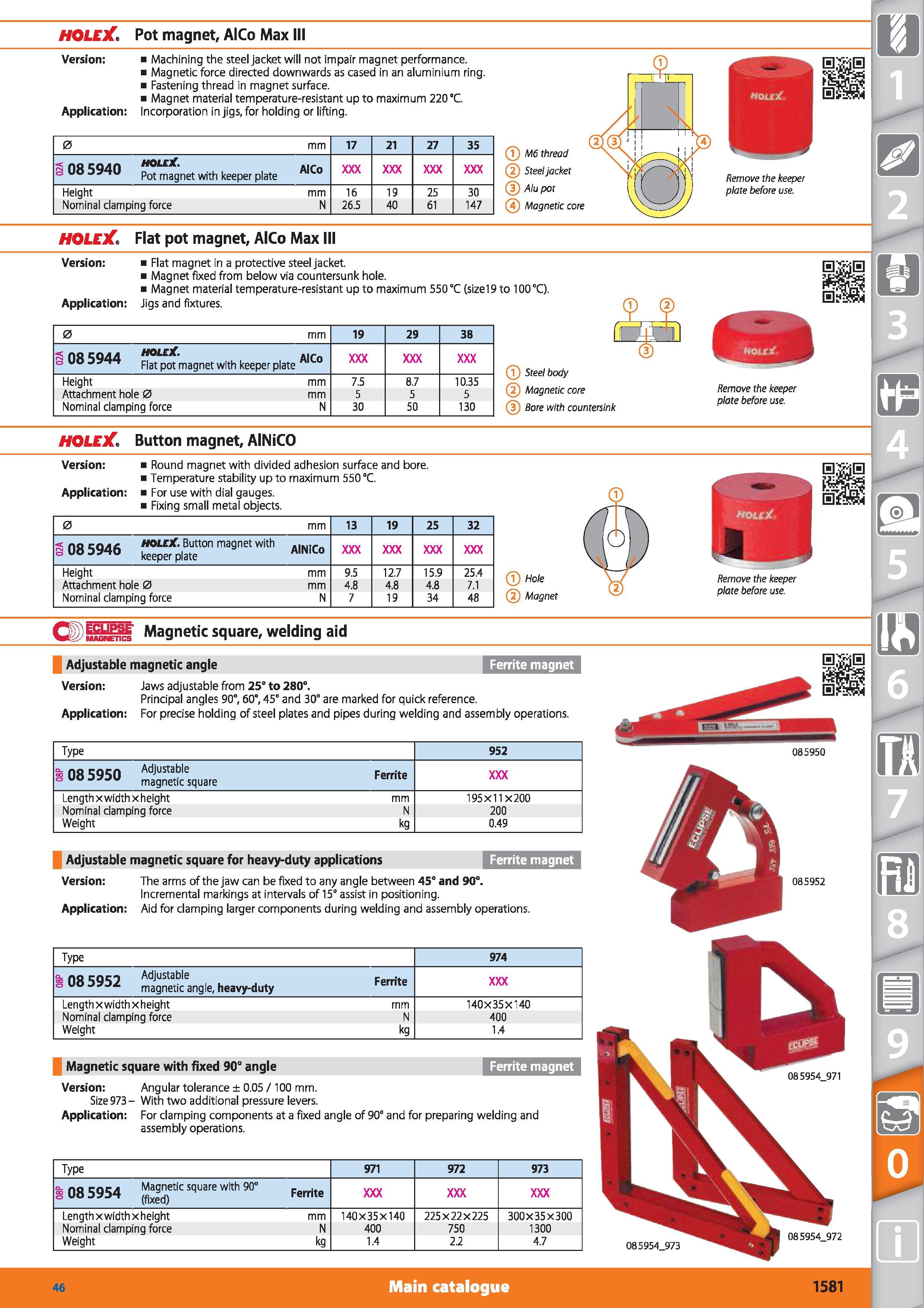

HOLElC1 Pot magnet, AlCo Max I Version Machining the steel jacket will not impair magnet performance. Magnetic force directed downwards as cased in an aluminium ring. Fastening thread in magnet surface. Magnet material temperature-resistant up to maximum 220 °C. Application Incorporation in jigs, for holding or lifting. 0 mm 17 21 27 35 s 08 5940 Pot mag‘net with keeper p ate AlCo Height mm 16 19 25 30 Nominal damping force N 26.5 40 61 147 (7) M6 thread (2) Steel jacket (j Alu pot (4) Magnetic core HOLEJC1 Flat pot magnet, AlCo Max I Version Flat magnet in a protective steel jacket. Magnet fixed from below via countersunk hole. Magnet material temperature-resistant up to maximum 550 °C (size 19 to 100°C). Application Jigs and fixtures. 0 mm 19 29 38 S nn 5Q44 holeX. plat pot magnet with keeper plate AlCo Height mm 7.5 8.7 10.35 Attachment hole 0 mm 5 5 5 Nominal clamping force N 30 50 130 ran (T) Steel body (2) Magnetic core (3) Bore with countersink Remove the keeper plate before use. HOLEJCButton magnet, AINiCO Version Round magnet with divided adhesion surface and bore. Temperature stability up to maximum 550 °C. Application For use with dial gauges. Fixing small metal objects. 0 mm 13 19 25 32 < no cn>i HOLEX Button magnet with S 08 5946 keeper p ate AINiCo Height mm 9.5 12.7 15.9 25.4 Attachment hole 0 mm 4.8 4.8 4.8 7.1 Nominal clamping force N 7 19 34 48 ( ) Hole (2) Magnet Remove the keeper plate before use. C ECUBjE- Magnetic square, welding aid Adjustable magnetic angle Version Ferrite magnet Application Jaws adjustable from 25° to 280°. Principal angles 90°, 60°, 45° and 30° are marked for quick reference. For precise holding of steel plates and pipes during welding and assembly operations. Type 952 Ss nn 5950 Adjustable uo magnetic sguare Ferrite Length x width x height mm 195x11x200 Nominal clamping force N 200 Weight kg 0.49 Adjustable magnetic square for heavy-duty applications Version Ferrite magnet Application The arms of the jaw can be fixed to any angle between 45° and 90°. Incremental markings at intervals of 15° assist in positioning. Aid for clamping larger components during welding and assembly operations. Type 974 08 5952 Adjustable o uo J7J magnetic angle, heavy-duty Ferrite Length x width x height mm 140X35X140 Nominal clamping force N 400 Weight kg 1.4 Magnetic square with fixed 90° angle Ferrite magnet Version Angular tolerance ± 0.05 / 100 mm. Size 973- With two additional pressure levers. Application For clamping components at a fixed angle of 90° and for preparing welding and assembly operations. Type 971 972 973 nn caw Magnetic sguare with 90° UO 3 3 1 (flxed) Ferrite Length x width x height mm 140 x 35x140 225x22x225 300x35x300 Nominal clamping force N 400 750 1300 Weight kg 1.4 2.2 4.7 085954_973 085954_971 08 5954_972 085950 085952 Main catalogue Hoffmann Group 46 1581
