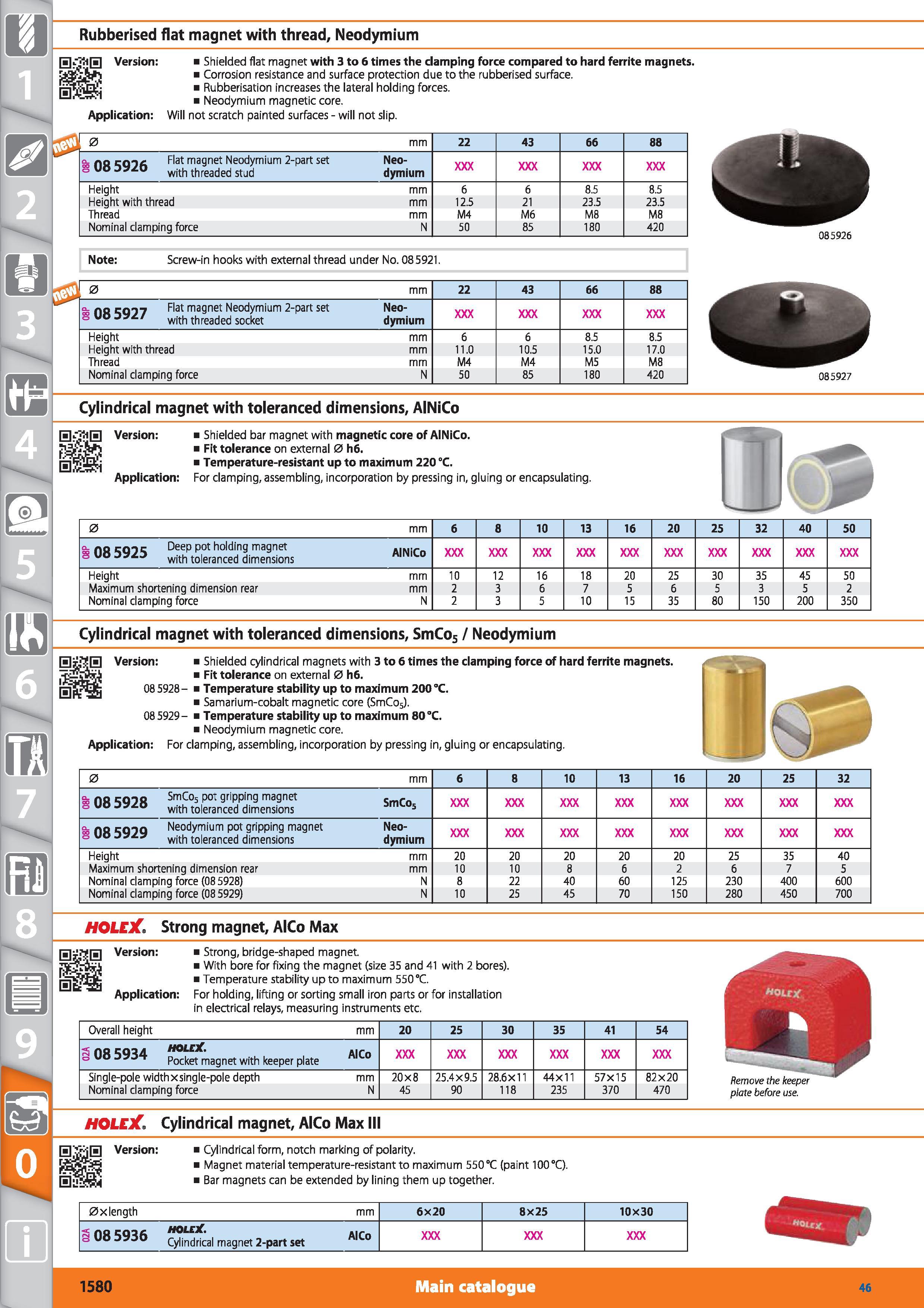

1 Rubberised flat magnet with thread, Neodymium Version 1 Shielded flat magnet with 3 to 6 times the damping force compared to hard ferrite magnets. Corrosion resistance and surface protection due to the rubberised surface. Rubberisation increases the lateral holding forces. Neodymium magnetic core. Application Will not scratch painted surfaces - will not slip. 0 mm 22 43 66 88 q- nQ cm Flat magnet Neodymium 2-part set o UO jvZO with threaded Stjd Neo- dymium Height mm 6 6 8.5 8.5 Height with thread mm 12.5 21 23.5 23.5 Thread mm M4 M6 M8 M8 Nominal clamping force N 50 85 180 420 085926 Note Screw-in hooks with external thread under No. 085921. 0 mm 22 43 66 88 nn n7 Flat magnet Neodymium 2-part set with threaded socket Neo- dymium Height mm 6 6 8.5 8.5 Height with thread mm 11.0 10.5 15.0 17.0 Thread mm M4 M4 M5 M8 Nominal clamping force N 50 85 180 420 085927 Cylindrical magnet with toleranced dimensions, AINiCo Version Application Shielded bar magnet with magnetic core of AINiCo. Fit tolerance on external 0 h6. Temperature-resistant up to maximum 220 °C. For clamping, assembling, incorporation by pressing in, gluing or encapsulating. 0 mm 6 8 10 13 16 20 25 32 40 50 q- aq cot c Deep pot holding magnet S uo jwj yynh toleranced dimensions AINiCo Height mm 10 12 16 18 20 25 30 35 45 50 Maximum shortening dimension rear mm 2 3 6 7 5 6 5 3 5 2 Nominal clamping force N 2 3 5 10 15 35 80 150 200 350 Cylindrical magnet with toleranced dimensions, SmCo5 / Neodymium 085928- Shielded cylindrical magnets with 3 to 6 times the clamping force of hard ferrite magnets. Fit tolerance on external 0 h6. Temperature stability up to maximum 200 °C. Samarium-cobalt magnetic core (SmCo5). 085929- Temperature stability up to maximum 80°C. Neodymium magnetic core. Application For clamping, assembling, incorporation by pressing in, gluing or encapsulating. 0 mm 6 8 10 13 16 20 25 32 cl rnnn SmCo5 pot gripping magnet o uo jyZo wnh toleranced dimensions SmCo5 OR qoiq Neodymium pot gripping magnet o Uo w t toleranced dimensions Neo- dymium Height mm 20 20 20 20 20 25 35 40 Maximum shortening dimension rear mm 10 10 8 6 2 6 7 5 Nominal clamping force (085928) N 8 22 40 60 125 230 400 600 Nominal clamping force (085929) N 10 25 45 70 150 280 450 700 HOLEX Strong magnet, AlCo Max Application Strong, bridge-shaped magnet. With bore for fixing the magnet (size 35 and 41 with 2 bores). Temperature stability up to maximum 550°C. For holding, lifting or sorting small iron parts or for installation in electrical relays, measuring instruments etc. ou Overall height mm 20 25 30 35 41 54 < aq rqn , JfOLfjf. S Uo pocket magnet with keeper plate AlCo Single-pole widthxsingle-pole depth mm 20x8 25.4x9.5 28.6x11 44x11 57x15 82x20 Nominal clamping force N 45 90 118 235 370 470 Remove the keeper plate before use. HOLCJC. Cylindrical magnet, AlCo Max I i Cylindrical form, notch marking of polarity. i Magnet material temperature-resistant to maximum 550 °C (paint 100 °C). i Bar magnets can be extended by lining them up together. 0x length mm 6x20 8x25 10x30 S OR UU holbC. vo Cylindrical magnet 2-part set AlCo 1580 Main catalogue Hoffmann Group 46
