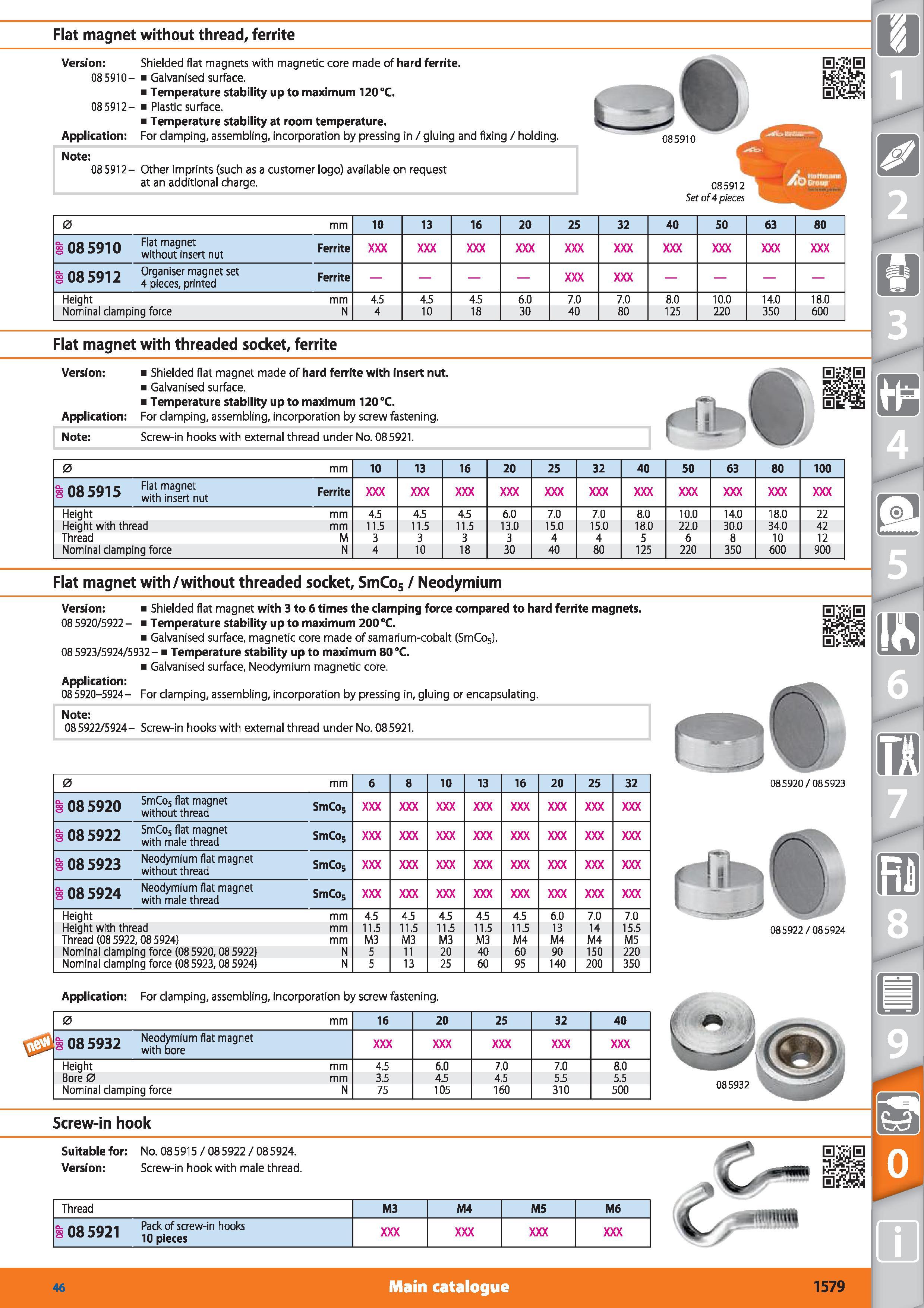

Flat magnet without thread, ferrite Version Shielded flat magnets with magnetic core made of hard ferrite. 08 5910- Galvanised surface. Temperature stability up to maximum 120°C. 085912- Plastic surface. Temperature stability at room temperature. Application For clamping, assembling, incorporation by pressing in / gluing and fixing / holding. Note 08 5912- Other imprints (such as a customer logo) available on request at an additional charge. 085912 Set of 4 pieces 0 mm 10 13 16 20 25 32 40 50 63 80 1085910 Flat magnet without insert nut Ferrite 1085912 Organiser magnet set 4 pieces, printed Ferrite Height mm 4.5 4.5 4.5 6.0 7.0 7.0 8.0 10.0 14.0 18.0 Nominal clamping force N 4 10 18 30 40 80 125 220 350 600 Flat magnet with threaded socket, ferrite Version Shielded flat magnet made of hard ferrite with insert nut. Galvanised surface. Temperature stability up to maximum 120°C. Application For clamping, assembling, incorporation by screw fastening. Note Screw-in hooks with external thread under No. 085921. 0 mm 10 13 16 20 25 32 40 50 63 80 100 OR SOI 5 F'at ma9net o Uo J5 j with insert nut Ferrite Height mm 4.5 4.5 4.5 6.0 7.0 7.0 8.0 10.0 14.0 18.0 22 Height with thread mm 11.5 11.5 11.5 13.0 15.0 15.0 18.0 22.0 30.0 34.0 42 Thread M 3 3 3 3 4 4 5 6 8 10 12 Nominal clamping force N 4 10 18 30 40 80 125 220 350 600 900 Flat magnet with/without threaded socket, SmCo5 / Neodymium Version Shielded flat magnet with 3 to 6 times the clamping force compared to hard ferrite magnets. 08 5920/5922 - Temperature stability up to maximum 200°C. Galvanised surface, magnetic core made of samarium-cobalt (SmCo5). 085923/5924/5932- Temperature stability up to maximum 80°C. Galvanised surface, Neodymium magnetic core. Application 085920-5924- For clamping, assembling, incorporation by pressing in, gluing or encapsulating. Note 085922/5924- Screw-in hooks with external thread under No. 085921. 0 mm 6 8 10 13 16 20 25 32 1085920 SmCo5 flat magnet without thread SmCo5 1085922 SmCo5 flat magnet with male thread SmCo5 1085923 Neodymium flat magnet without thread SmCo5 1085924 Neodymium flat magnet with male thread SmCo5 Height mm 4.5 4.5 4.5 4.5 4.5 6.0 7.0 7.0 Height with thread mm 11.5 11.5 11.5 11.5 11.5 13 14 15.5 Thread (08 5922,08 5924) mm M3 M3 M3 M3 M4 M4 M4 M5 Nominal clamping force (08 5920,08 5922) N 5 11 20 40 60 90 150 220 Nominal clamping force (08 5923,08 5924) N 5 13 25 60 95 140 200 350 Application For clamping, assembling, incorporation by screw fastening. 3; 0 mm 16 20 25 32 40 g, ng rQ31 Neodymium flat magnet UO with hQrg Height mm 4.5 6.0 7.0 7.0 8.0 Bore 0 mm 3.5 4.5 4.5 5.5 5.5 Nominal clamping force N 75 105 160 310 500 Screw-in hook Suitable for No. 085915 / 085922 / 085924. Version Screw-in hook with male thread. Thread M3 M4 M5 M6 no cn'ii Pack of screw-in hooks s 08 5921 10 pieces 46 Main catalogue
