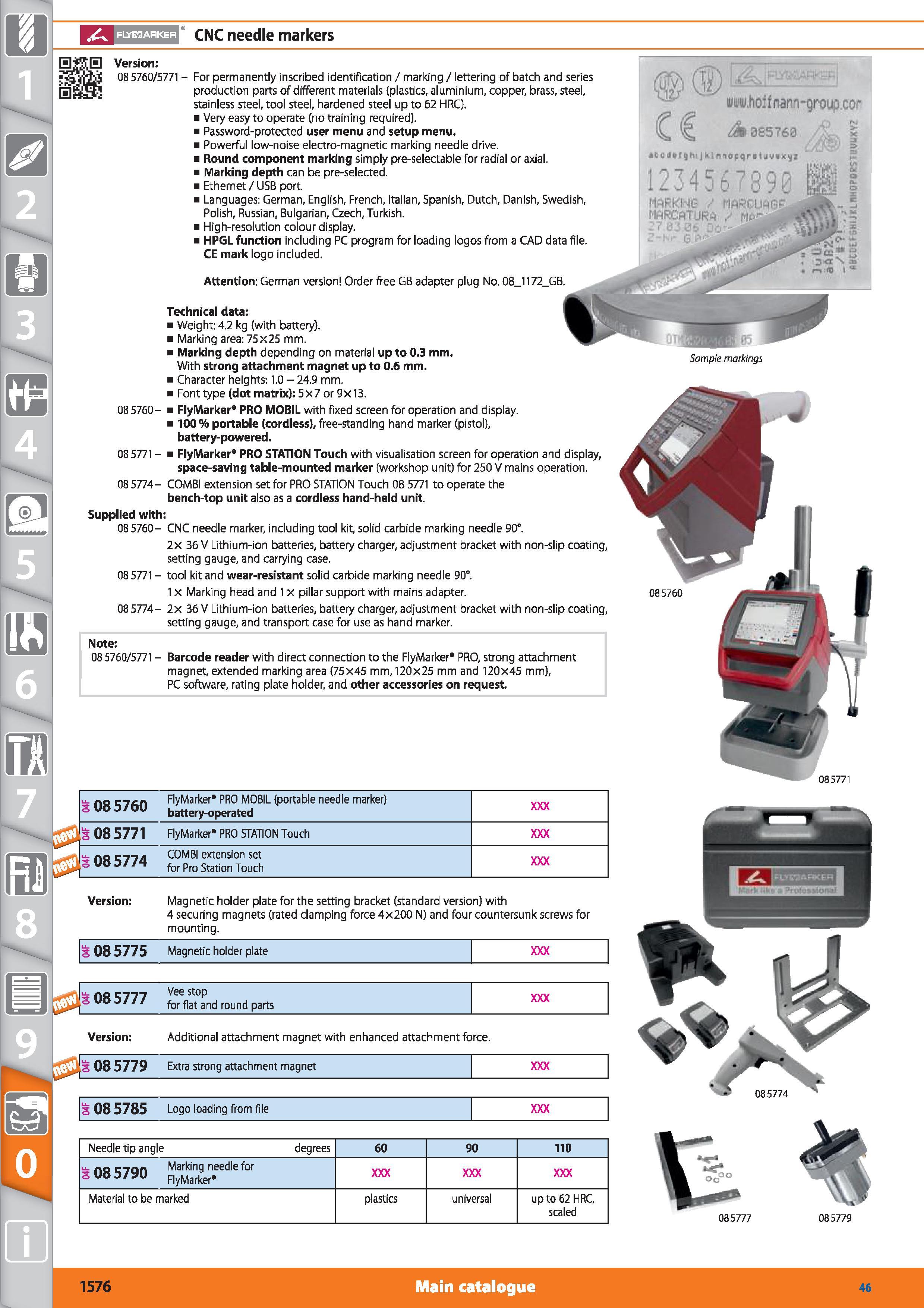

CNC needle markers u. no c7fio FlyMarker PRO MOBIL (portable needle marker) S UO 3/ DU battery-operated 3 08 5771 FlyMarker PRO STATION Touch OH 177A COMBI extension set S VOO//H for pro StatiQn Touch Version 08 5760/5771 - For permanently inscribed identification / marking / lettering of batch and series production parts of different materials (plastics, aluminium, copper, brass, steel, stainless steel, tool steel, hardened steel up to 62 HRC). Very easy to operate (no training required). Password-protected user menu and setup menu. Powerful low-noise electro-magnetic marking needle drive. Round component marking simply pre-selectable for radial or axial. Marking depth can be pre-selected. Ethernet / USB port. Languages German, English, French, Italian, Spanish, Dutch, Danish, Swedish, Polish, Russian, Bulgarian, Czech, Turkish. High-resolution colour display. HPGL function including PC program for loading logos from a CAD data file. CE mark logo included. Attention German version Order free GB adapter plug No. 08_1172_GB Technical data Weight 4.2 kg (with battery). Marking area 75x25 mm. Marking depth depending on material up to 0.3 mm. With strong attachment magnet up to 0.6 mm. Character heights 1.0 - 24.9 mm. Font type (dot matrix) 5x7 or 9x 13. 08 5760- FlyMarker8 PRO MOBIL with fixed screen for operation and display. 100% portable (cordless), free-standing hand marker (pistol), battery-powered. 08 5771 - FlyMarker' PRO STATION Touch with visualisation screen for operation and display, space-saving table-mounted marker (workshop unit) for 250 V mains operation. 08 5774- COMBI extension set for PRO STATION Touch 08 5771 to operate the bench-top unit also as a cordless hand-held unit. Supplied with 08 5760- CNC needle marker, including tool kit, solid carbide marking needle 90°. 2x 36 V Lithium-ion batteries, battery charger, adjustment bracket with non-slip coating, setting gauge, and carrying case. 08 5771 - tool kit and wear-resistant solid carbide marking needle 90°. 1 x Marking head and 1 x pillar support with mains adapter. 08 5774 - 2 x 36 V Lithium-ion batteries, battery charger, adjustment bracket with non-slip coating, setting gauge, and transport case for use as hand marker. 11iu1.h0ffnann-9r0up.c0n Jtcdftf qhijklAnopQratuvtxyi 1234567890 HARKING MAR MARCATURA 27 83 06 Do Z-Nr G Sample markings Note 08 5760/5771 - Barcode reader with direct connection to the FlyMarker PRO, strong attachment magnet, extended marking area (75 x45 mm, 120x25 mm and 120x45 mm), PC software, rating plate holder, and other accessories on request. Version Magnetic holder plate for the setting bracket (standard version) with 4 securing magnets (rated clamping force 4 x 200 N) and four countersunk screws for mounting. 3 08 5775 Magnetic holder plate s 08 5777 Vee stop for flat and round parts Version Additional attachment magnet with enhanced attachment force. 3 08 5779 Extra strong attachment magnet 3 08 5785 Logo loading from file Needle tip angle degrees 60 90 110 ll. nn rynn Marking needle for S Uo 3/yu FlyMarker Material to be marked plastics universal up to 62 HRC, scaled Main catalogue
