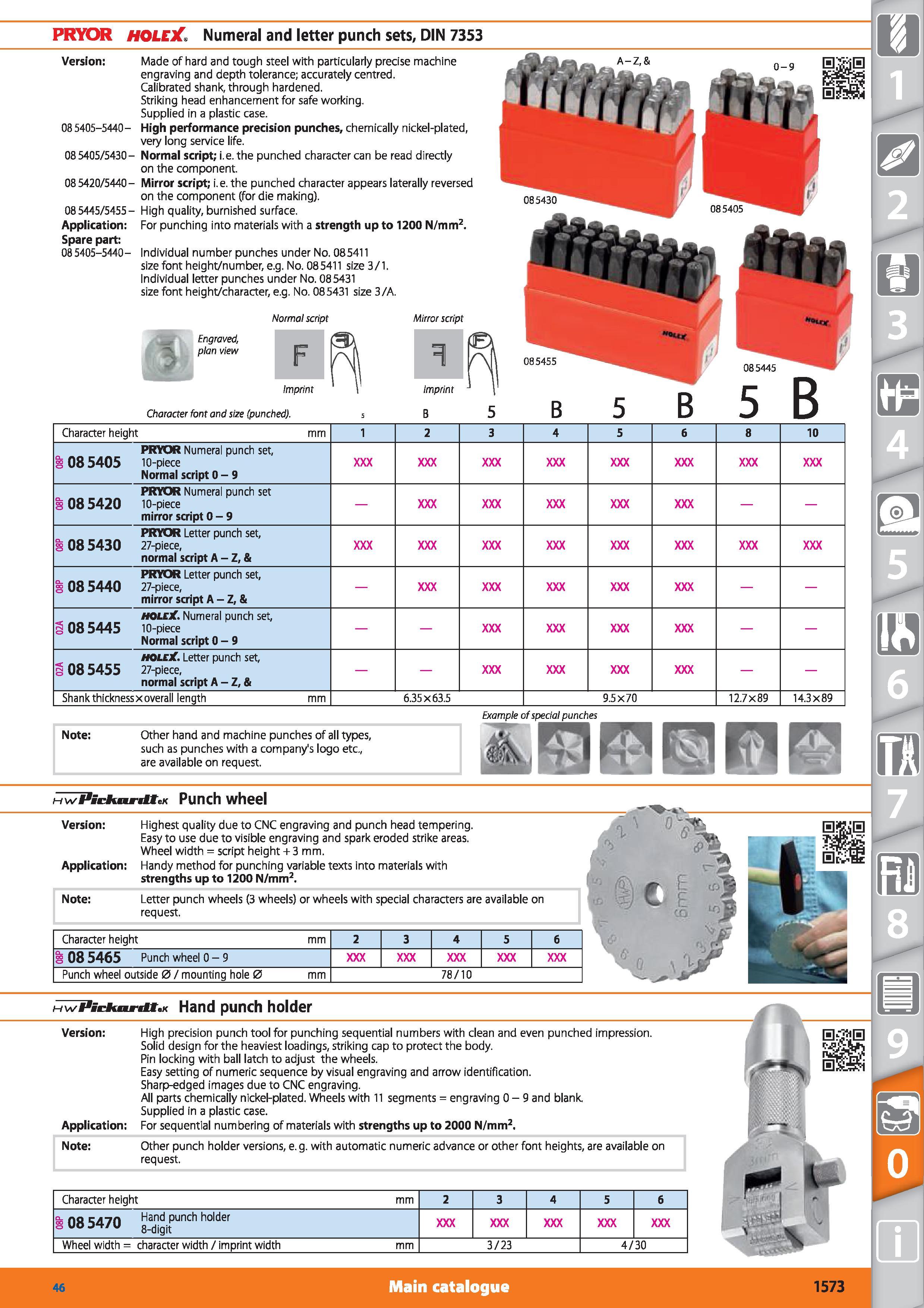

PRYOR Version 085405-5440- 085405/5430- 085420/5440- 085445/5455-Application Spare part 085405-5440- Character height mm 1 2 3 4 5 6 8 10 085405 PRVOR Numeral punch set, 10-piece Normal script 0-9 085420 PRVOR Numeral punch set 10-piece mirror script 0-9 085430 PRYOR Letter punch set, 27-piece, normal script A - Z, & 085440 PRYOR Letter punch set, 27-piece, mirror script A - Z, & 085445 HOLClC. Numeral punch set, 10-piece Normal script 0-9 08 5455 holcjC. Letter punch set, 27-piece, normal script A - Z, & Shank thickness xoverall length mm 6.35x63.5 9.5x70 12.7x89 14.3x89 Note Other hand and machine punches of all types, such as punches with a company's logo etc., are available on request. Example of special punches X rr”7vi nr JL rfianir Punch wheel Version Highest quality due to CNC engraving and punch head tempering. Easy to use due to visible engraving and spark eroded strike areas. Wheel width script height + 3 mm. Application Handy method for punching variable texts into materials with strengths up to 1200 N/mm2. Note Letter punch wheels (3 wheels) or wheels with special characters are available on request. Character height mm 2 3 4 5 6 08 5465 Punch wheel 0-9 Punch wheel outside 0 / mounting hole 0 mm 78/10 iciaartU.K Hand punch holder Version High precision punch tool for punching sequential numbers with clean and even punched impression. Solid design for the heaviest loadings, striking cap to protect the body. Pin locking with ball latch to adjust the wheels. Easy setting of numeric sequence by visual engraving and arrow identification. Sharp-edged images due to CNC engraving. All parts chemically nickel-plated. Wheels with 11 segments engraving 0-9 and blank. Supplied in a plastic case. Application For sequential num bering of materials with strengths up to 2000 N/mm2. Note Other punch holder versions, e.g. with automatic numeric advance or other font heights, are available on request. Character height mm 2 3 4 5 6 fe no c/no Hand punch holder 085470 8-digit Wheel width character width / imprint width mm 3/23 4/30 j L - Main catalogue Hoffmann Group 46 1573 Engraved, plan view Imprint Imprint HOLEX Numeral and letter punch sets, DIN 7353 A-Z,& 085430 085455 B Made of hard and tough steel with particularly precise machine engraving and depth tolerance; accurately centred. Calibrated shank, through hardened. Striking head enhancement for safe working. Supplied in a plastic case. High performance precision punches, chemically nickel-plated, very long service life. Normal script; i.e. the punched character can be read directly on the component. Mirror script; i.e. the punched character appears laterally reversed on the component (for die making). High quality, burnished surface. For punching into materials with a strength up to 1200 N/mm2. Individual number punches under No. 085411 size font height/number, e.g. No. 085411 size 3/1. Individual letter punches under No. 085431 size font height/character, e.g. No. 085431 size 3/A. Normal script Mirror script Character font and size (punched). s B 5
