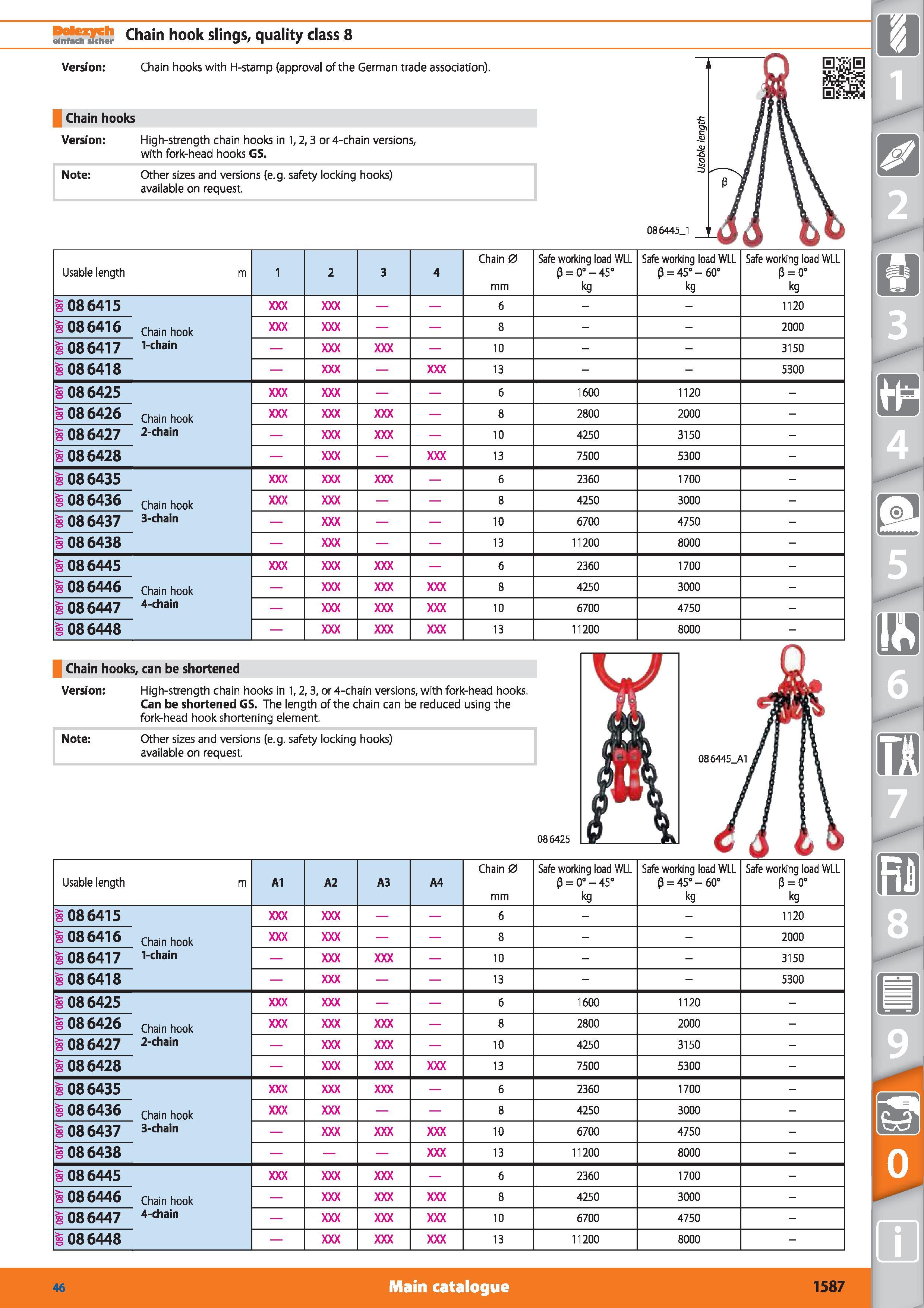

Chain hook slings, quality class 8 Version Chain hooks Version Chain hooks with H-stamp (approval of the German trade association). High-strength chain hooks in 1,2,3 or 4-chain versions, with fork-head hooks GS. Note Other sizes and versions (e.g. safety locking hooks) available on request. 086445J Usable length m 1 2 3 4 Chain 0 mm Safe working load WLL P 0° - 45° kg Safe working load WLL P 45° - 60° kg Safe working load WLL p o° kg 1086415 6 1120 1086416 Chain hook 8 2000 1086417 1-chain 10 3150 1086418 13 5300 086425 6 1600 1120 - 108 6426 Chain hook 8 2800 2000 - 1086427 2-chain 10 4250 3150 - 1086428 13 7500 5300 - 1086435 6 2360 1700 - 086436 Chain hook 8 4250 3000 - 1086437 3-chain 10 6700 4750 - 1086438 13 11200 8000 - 1086445 6 2360 1700 - 086446 Chain hook 8 4250 3000 - 086447 4-chain 10 6700 4750 - 086448 13 11200 8000 - Chain hooks, can be shortened Version High-strength chain hooks in 1,2,3, or 4-chain versions, with fork-head hooks. Can be shortened GS. The length of the chain can be reduced using the fork-head hook shortening element. Note Other sizes and versions (e.g. safety locking hooks) available on request. 086425 086445_A1 Usable length m A1 A2 A3 A4 Chain 0 mm Safe working load WLL P 0° - 45° kg Safe working load WLL P 45° - 60° kg Safe working load WLL p o° kg 086415 6 1120 086416 Chain hook 8 2000 086417 1-chain 10 3150 086418 13 5300 086425 6 1600 1120 - 086426 Chain hook 8 2800 2000 - 086427 2-chain 10 4250 3150 - 086428 13 7500 5300 - 086435 6 2360 1700 - 086436 Chain hook 8 4250 3000 - 086437 3-chain 10 6700 4750 - 086438 13 11200 8000 - 086445 6 2360 1700 - 086446 Chain hook 8 4250 3000 - 086447 4-chain 10 6700 4750 - 086448 13 11200 8000 - 46 Main catalogue
