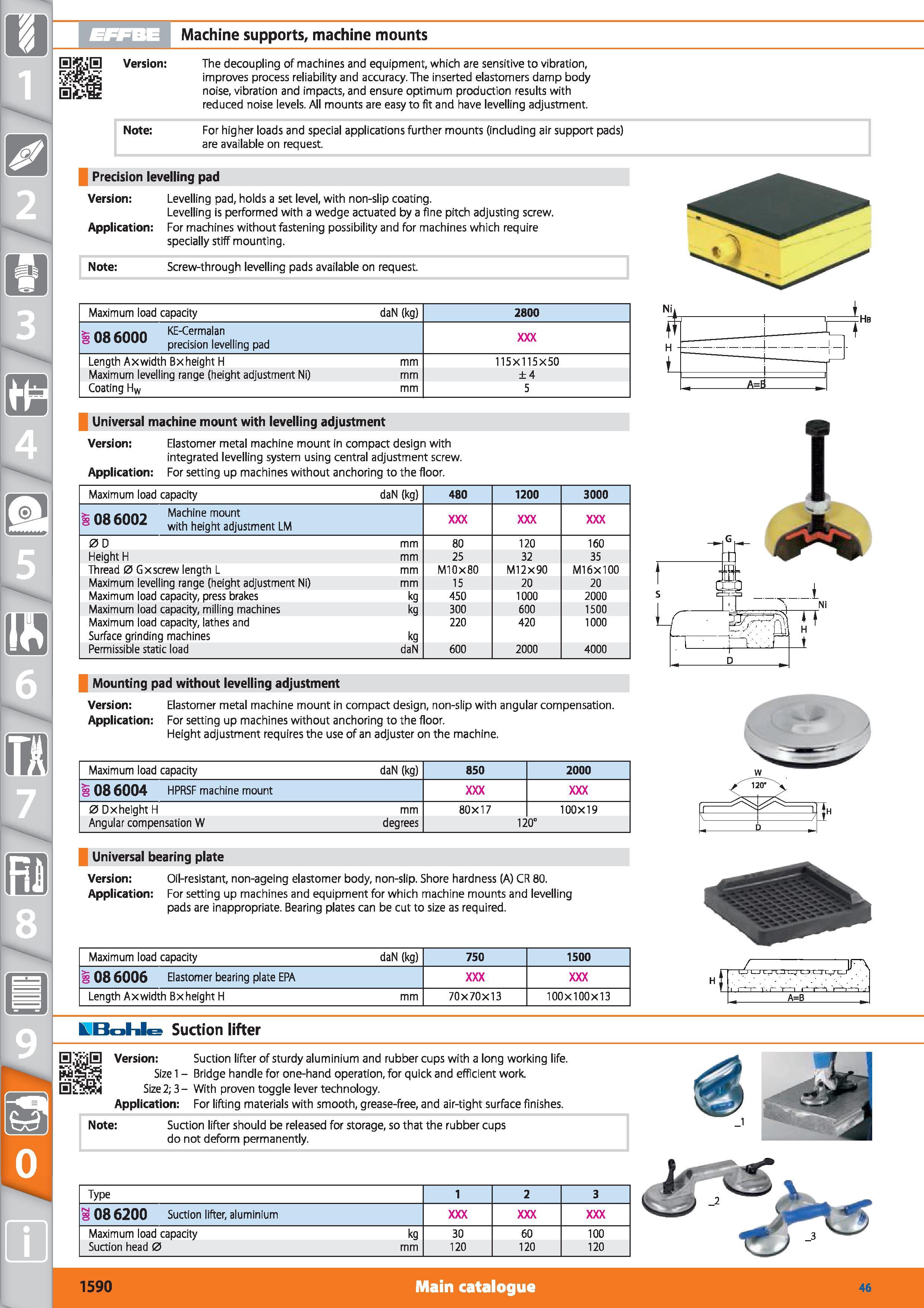

Machine supports, machine mounts The decoupling of machines and equipment, which are sensitive to vibration, improves process reliability and accuracy. The inserted elastomers damp body noise, vibration and impacts, and ensure optimum production results with reduced noise levels. All mounts are easy to fit and have levelling adjustment. Nate For higher loads and special applications further mounts (including air support pads) are available on request. Precision levelling pad Version Levelling pad, holds a set level, with non-slip coating. Levelling is performed with a wedge actuated by a fine pitch adjusting screw. Application For machines without fastening possibility and for machines which require specially stiff mounting. Note Screw-through levelling pads available on request. Maximum load capacity daN (kg) 2800 1086000 KE'Cerma an M. precision levelling pad Length Ax width Bx height FI mm 115X115X50 Maximum levelling range (height adjustment Ni) mm ±4 Coating Flw mm 5 Nil ttf i A=E Hb Universal machine mount with levelling adjustment Version Elastomer metal machine mount in compact design with integrated levelling system using central adjustment screw. Application For setting up machines without anchoring to the floor. Maximum load capacity daN (kg) 480 1200 3000 flH Machine mount S Uo OUUZ w t height adjustment LM 0 D mm 80 120 160 Height H mm 25 32 35 Thread 0 Gxscrew length L mm M10X80 M12X90 Ml 6x100 Maximum levelling range (height adjustment Ni) mm 15 20 20 Maximum load capacity, press brakes kg 450 1000 2000 Maximum load capacity, milling machines kg 300 600 1500 Maximum load capacity, lathes and Surface grinding machines kg 220 420 1000 Permissible static load daN 600 2000 4000 Mounting pad without levelling adjustment Version Elastomer metal machine mount in compact design, non-slip with angular compensation. Application For setting up machines without anchoring to the floor. Height adjustment requires the use of an adjuster on the machine. Maximum load capacity daN (kg) 850 2000 08 6004 HPRSF machine mount 0 Dxheight H mm 80x17 100x19 Angular compensation W degrees 120° Universal bearing plate Version Oil-resistant, non-ageing elastomer body, non-slip. Shore hardness (A) CR 80. Application For setting up machines and equipment for which machine mounts and levelling pads are inappropriate. Bearing plates can be cut to size as required. Maximum load capacity daN (kg) 750 1500 1 08 6006 Elastomer bearing plate EPA Length Ax width Bx height H mm 70x70x13 100x100x13 H w i r wj-u l_j L-J.i j L_ri_r A=B HBohle Suction lifter HXjH Version Suction lifter of sturdy aluminium and rubber cups with a long working life. Size 1 - Bridge handle for one-hand operation, for quick and efficient work. Size 2; 3- With proven toggle lever technology. Application For lifting materials with smooth, grease-free, and air-tight surface finishes. Note Suction lifter should be released for storage, so that the rubber cups do not deform permanently. Type 1 2 3 S 08 6200 Suction lifter, aluminium Maximum load capacity kg 30 60 100 Suction head 0 mm 120 120 120 1590 Main catalogue Hoffmann Group 46
