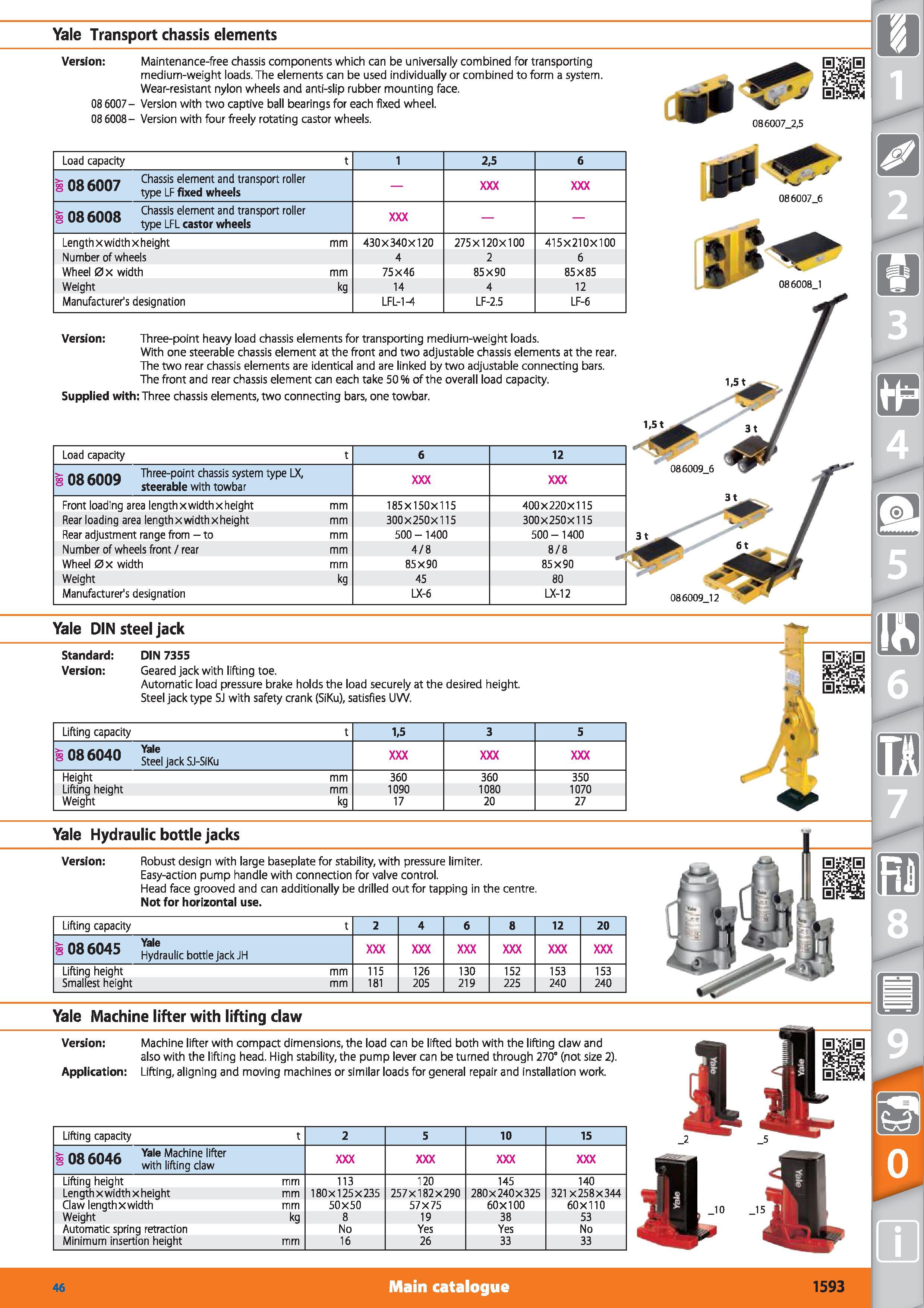

Yale Transport chassis elements Version Maintenance-free chassis components which can be universally combined for transporting medium-weight loads. The elements can be used individually or combined to form a system. Wear-resistant nylon wheels and anti-slip rubber mounting face. 08 6007 - Version with two captive ball bearings for each fixed wheel. 08 6008- Version with four freely rotating castor wheels. 086007_2,5 Load capacity t 1 2,5 6 S oq Chassis element and transport roller Uo OUU/ type LF fixed wheels >- no fnno Chassis element and transport roller 08 6008 type LFL castor whee s Lengthxwidthxheight mm 430X340X120 275X120X100 415X210X100 Number of wheels 4 2 6 Wheel 0 x width mm 75X46 85X90 85X85 Weight kg 14 4 12 Manufacturer's designation LFL-1-4 LF-2.5 LF-6 Version Three-point heavy load chassis elements for transporting medium-weight loads. With one steerable chassis element at the front and two adjustable chassis elements at the rear. The two rear chassis elements are identical and are linked by two adjustable connecting bars. The front and rear chassis element can each take 50% of the overall load capacity. Supplied with Three chassis elements, two connecting bars, one towbar. 086008 l Load capacity t 6 12 5- no e.nnn Three-point chassis system type LX, 086009 steerab ewithtowt;ar Front loading area lengthxwidthxheight mm 185X150X115 400X 220X115 Rear loading area lengthxwidthxheight mm 300 X 250X115 300X 250X115 Rear adjustment range from - to mm 500-1400 500-1400 Number of wheels front / rear mm 4/8 8/8 Wheel 0x width mm 85X90 85X90 Weight kg 45 80 Manufacturer's designation LX-6 LX-12 086009_6 Yale DIN steel jack Standard DIN 7355 Version Geared jack with lifting toe. Automatic load pressure brake holds the load securely at the desired height. Steel jack type SJ with safety crank (SiKu), satisfies UW. Lifting capacity t 1,5 3 5 1086040 IJackSJ.SiKu Height mm 360 360 350 Lifting height mm 1090 1080 1070 Weight kg 17 20 27 Yale Hydraulic bottle jacks Version Robust design with large baseplate for stability, with pressure limiter. Easy-action pump handle with connection for valve control. Head face grooved and can additionally be drilled out for tapping in the centre. Not for horizontal use. Lifting capacity t 2 4 6 8 12 20 08 6045 Hydraulic bottle jack JH Lifting height mm 115 126 130 152 153 153 Smallest height mm 181 205 219 225 240 240 Yale Machine lifter with lifting claw Version Machine lifter with compact dimensions, the load can be lifted both with the lifting claw and also with the lifting head. High stability, the pump lever can be turned through 270° (not size 2). Application Lifting, aligning and moving machines or similar loads for general repair and installation work. Lifting capacity t 2 5 10 15 no n>ic Yale Machine lifter 08 6046 with ifting daw Lifting height mm 113 120 145 140 Length x width x height mm 180x125x235 257x182x290 280x240x325 321x258x344 Claw lengthxwidth mm 50X50 57X75 60X100 60X110 Weight kg 8 19 38 53 Automatic spring retraction No Yes Yes No Minimum insertion height mm 16 26 33 33 10 Main catalogue Hoffmann Group 46 1593
