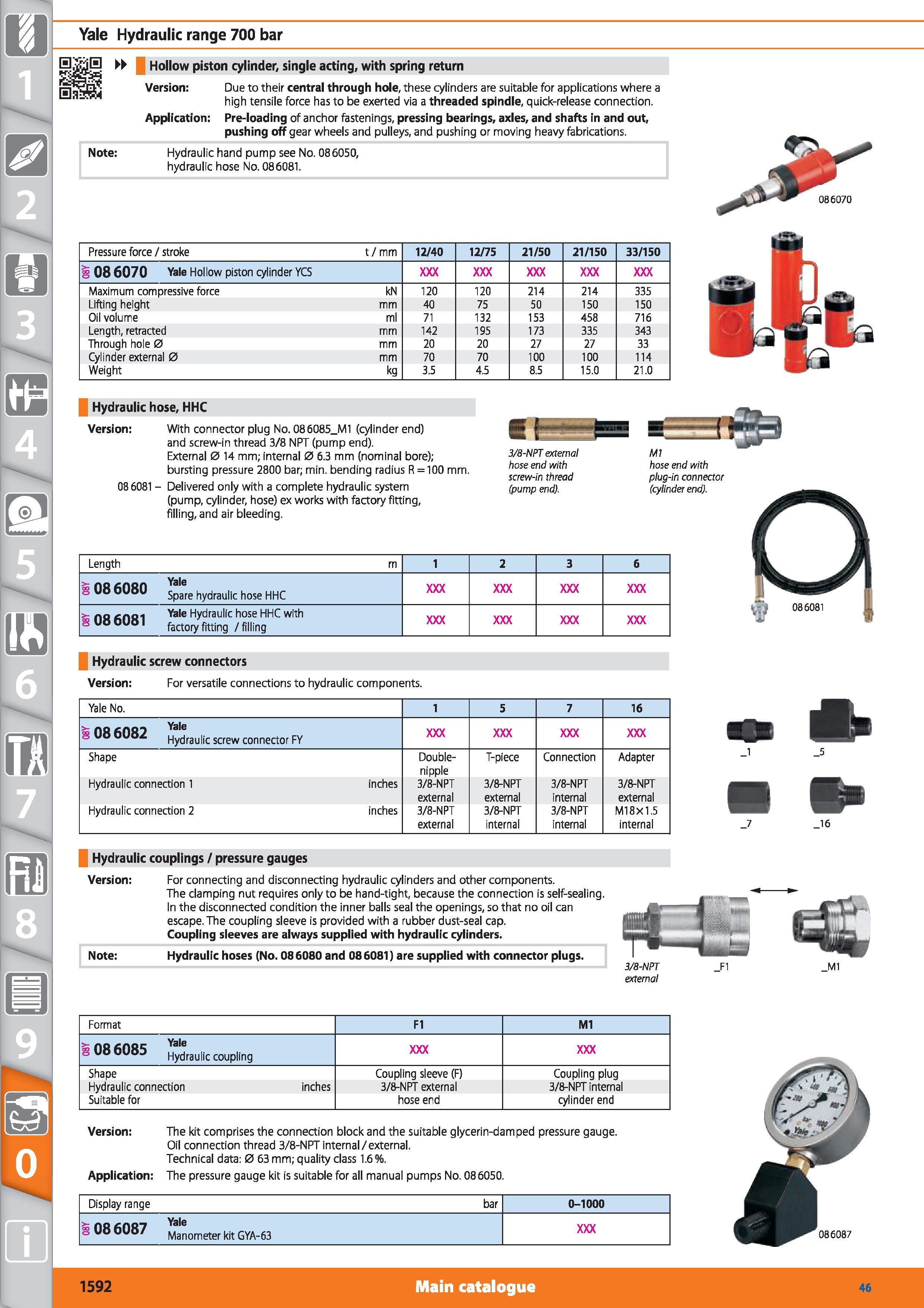

Yale Hydraulic range 700 bar Hollow piston cylinder, single acting, with spring return Version Due to their central through hole, these cylinders are suitable for applications where a high tensile force has to be exerted via a threaded spindle, quick-release connection. Application Pre-loading of anchor fastenings, pressing bearings, axles, and shafts in and out, pushing off gear wheels and pulleys, and pushing or moving heavy fabrications. Note Hydraulic hand pump see No. 086050, hydraulic hose No. 086081. Pressure force / stroke t/mm 12/40 12/75 21/50 21/150 33/150 08 6070 Yale Hollow piston cylinder YCS Maximum compressive force kN 120 120 214 214 335 Lifting height mm 40 75 50 150 150 Oil volume ml 71 132 153 458 716 Length, retracted mm 142 195 173 335 343 Through hole 0 mm 20 20 27 27 33 Cylinder external 0 mm 70 70 100 100 114 Weight kg 3.5 4.5 8.5 15.0 21.0 Hydraulic hose, HHC Version 08 6081 - With connector plug No. 086085_M1 (cylinder end) and screw-in thread 3/8 NPT (pump end). External 0 14 mm; internal 0 6.3 mm (nominal bore); bursting pressure 2800 bar; min. bending radius R 100 mm. Delivered only with a complete hydraulic system (pump, cylinder, hose) ex works with factory fitting, filling, and air bleeding. j tin _1-1 3/8-NPT external hose end with screw-in thread (pump end). Ml hose end with plug-in connector (cylinder end). Length m 1 2 3 6 086080 Yale Spare hydraulic hose HHC 086081 Yale Hydraulic hose HHC with factory fitting /filling Hydraulic screw connectors Version For versatile connections to hydraulic components. Yale No. 1 5 7 16 08 6082 Hydrau ic screw connector FY Shape Double- nipple T-piece Connection Adapter Hydraulic connection 1 inches 3/8-NPT external 3/8-NPT external 3/8-NPT internal 3/8-NPT external Hydraulic connection 2 inches 3/8-NPT external 3/8-NPT internal 3/8-NPT internal M18X1.5 internal Hydraulic couplings / pressure gauges Version _16 For connecting and disconnecting hydraulic cylinders and other components. The clamping nut requires only to be hand-tight, because the connection is self-sealing. In the disconnected condition the inner balls seal the openings, so that no oil can escape. The coupling sleeve is provided with a rubber dust-seal cap. Coupling sleeves are always supplied with hydraulic cylinders. Note Hydraulic hoses (No. 086080 and 086081) are supplied with connector plugs. Format FI Ml 08 6085 ual , Hydraulic coupling Shape Coupling sleeve (F) Coupling plug Hydraulic connection inches 3/8-NPT external 3/8-NPT internal Suitable for hose end cylinder end Version The kit comprises the connection block and the suitable glycerin-damped pressure gauge. Oil connection thread 3/8-NPT internal/external. Technical data 0 63 mm; quality class 1.6%. Application The pressure gauge kit is suitable for all manual pumps No. 086050. Display range bar 0-1000 086087 Yale Manometer kit GYA-63 1592 Main catalogue Hoffmann Group 46 086070 3/8-NPT _F1 _M1 external 086087
