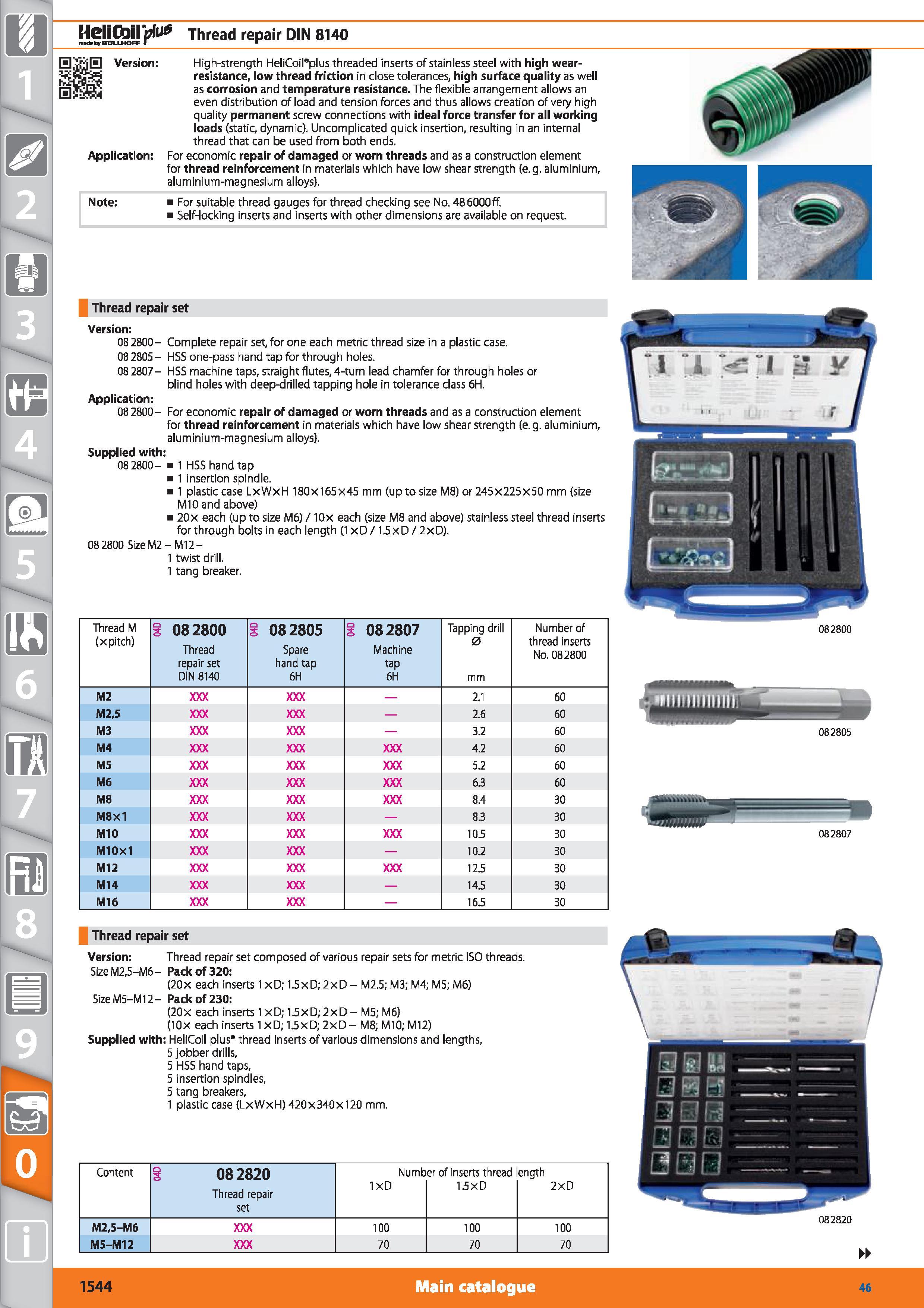

HeNCbilplU Thread repair DIN 8140 nudSbyBOLLHOFF I 1 Version High-strength HeliCoiTplus threaded inserts of stainless steel with high wear- resistance, low thread friction in close tolerances, high surface quality as well as corrosion and temperature resistance. The flexible arrangement allows an even distribution of load and tension forces and thus allows creation of very high quality permanent screw connections with ideal force transfer for all working loads (static, dynamic). Uncomplicated quick insertion, resulting in an internal thread that can be used from both ends. Application For economic repair of damaged or worn threads and as a construction element for thread reinforcement in materials which have low shear strength (e.g. aluminium, aluminium-magnesium alloys). Note For suitable thread gauges for thread checking see No. 486000ff. Self-locking inserts and inserts with other dimensions are available on request. Thread repair set Version 08 2800- Complete repair set, for one each metric thread size in a plastic case. 08 2805 - HSS one-pass hand tap for through holes. 08 2807- HSS machine taps, straight flutes, 4-turn lead chamfer for through holes or blind holes with deep-drilled tapping hole in tolerance class 6H. Application 08 2800- For economic repair of damaged or worn threads and as a construction element for thread reinforcement in materials which have low shear strength (e.g. aluminium, aluminium-magnesium alloys). Supplied with 08 2800- 1 HSS hand tap 1 insertion spindle. 1 plastic case LxWxH 180x165x45 mm (up to size M8) or 245x225x50 mm (size M10 and above) 20x each (up to size M6) / lOx each (size M8 and above) stainless steel thread inserts for through bolts in each length (1 xD / 1.5xD / 2xD). 08 2800 Size M2-Ml 2- 1 twist drill. 1 tang breaker. Thread M (x pitch) s 082800 Thread repair set DIN 8140 i 082805 Spare hand tap 6H i 082807 Machine tap 6H Tapping drill 0 mm Number of thread inserts No. 082800 M2 2.1 60 M2,5 2.6 60 M3 3.2 60 M4 4.2 60 M5 5.2 60 M6 6.3 60 M8 8.4 30 M8X1 8.3 30 M10 10.5 30 M10X1 10.2 30 M12 12.5 30 M14 14.5 30 M16 16.5 30 082800 082805 082807 Thread repair set Version Thread repair set composed of various repair sets for metric ISO threads. SizeM2,5-M6- Pack of 320 (20x each inserts 1 xD; 1.5xD; 2xD - M2.5; M3; M4; M5; M6) SizeM5-M12- Pack of 230 (20x each inserts 1 xD; 1.5xD; 2xD - M5; M6) (lOx each inserts 1 xD; 1.5xD; 2xD - M8; M10; M12) Supplied with HeliCoil plus thread inserts of various dimensions and lengths, 5 jobber drills, 5 HSS hand taps, 5 insertion spindles, 5 tang breakers, 1 plastic case (LxWxH) 420x340x120 mm. Content s 082820 Thread repair set Numb IxD er of inserts thread 1.5 xD ength 2xD M2.5-M6 100 100 100 M5-M12 70 70 70 1544 Main catalogue Hoffmann Group 46
