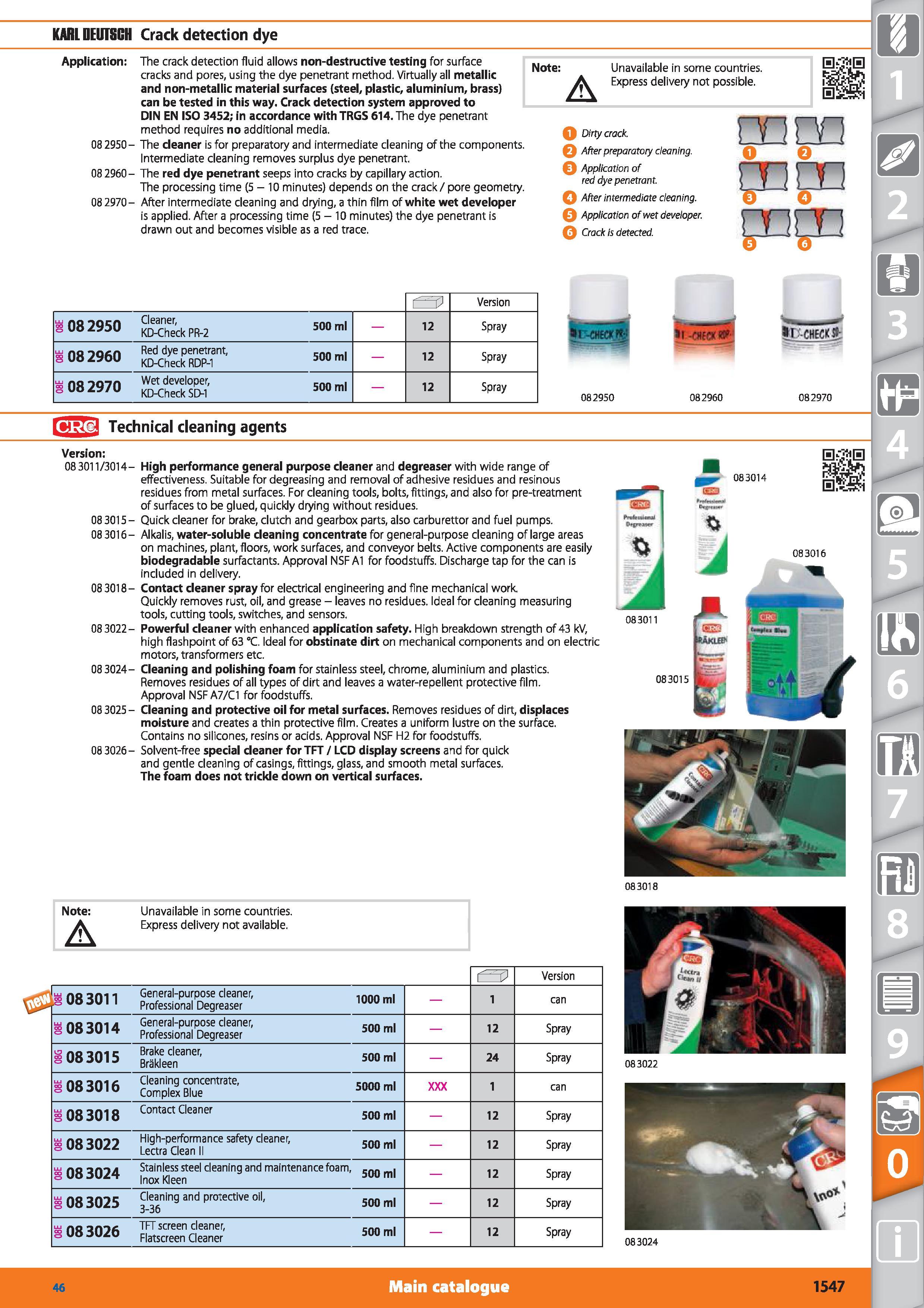

KARL DEIfTSGH Crack detection dye Application The crack detection fluid allows non-destructive testing for surface cracks and pores, using the dye penetrant method. Virtually all metallic and non-metallic material surfaces (steel, plastic, aluminium, brass) can be tested in this way. Crack detection system approved to DIN EN ISO 3452; in accordance with TRGS 614. The dye penetrant method requires no additional media. 08 2950 - The cleaner is for preparatory and intermediate cleaning of the components. Intermediate cleaning removes surplus dye penetrant. 08 2960- The red dye penetrant seeps into cracks by capillary action. The processing time (5 - 10 minutes) depends on the crack / pore geometry. 08 2970- After intermediate cleaning and drying, a thin film of white wet developer is applied. After a processing time (5 - 10 minutes) the dye penetrant is drawn out and becomes visible as a red trace. Note Unavailable in some countries. Express delivery not possible. A Q Dirty crack. After preparatory cleaning. Application of red dye penetrant. After intermediate cleaning. Application of wet developer. 0 Crack is detected. mm o mm ir o mm Version 08 2950 Cleaner, KD-Check PR-2 500 ml 12 Spray s 08 2960 Red dye penetrant, KD-Check RDP-1 500 ml 12 Spray 08 2970 Wet developer, KD-Check SD-1 500 ml 12 Spray 082950 082960 082970 Technical cleaning agents Version 083011/3014- High performance general purpose cleaner and degreaser with wide range of effectiveness. Suitable for degreasing and removal of adhesive residues and resinous residues from metal surfaces. For cleaning tools, bolts, fittings, and also for pre-treatment of surfaces to be glued, quickly drying without residues. 08 3015- Quick cleaner for brake, clutch and gearbox parts, also carburettor and fuel pumps. 08 3016 - Alkalis, water-soluble cleaning concentrate for general-purpose cleaning of large areas on machines, plant, floors, work surfaces, and conveyor belts. Active components are easily biodegradable surfactants. Approval NSF A1 for foodstuffs. Discharge tap for the can is included in delivery. 08 3018- Contact cleaner spray for electrical engineering and fine mechanical work Quickly removes rust, oil, and grease - leaves no residues. Ideal for cleaning measuring tools, cutting tools, switches, and sensors. 08 3022- Powerful cleaner with enhanced application safety. High breakdown strength of 43 kV, high flashpoint of 63 °C. Ideal for obstinate dirt on mechanical components and on electric motors, transformers etc. 08 3024- Cleaning and polishing foam for stainless steel, chrome, aluminium and plastics. Removes residues of all types of dirt and leaves a water-repellent protective film. Approval NSF A7/C1 for foodstuffs. 08 3025 - Cleaning and protective oil for metal surfaces. Removes residues of dirt, displaces moisture and creates a thin protective film. Creates a uniform lustre on the surface. Contains no silicones, resins or acids. Approval NSF H2 for foodstuffs. 08 3026 - Solvent-free special cleaner for TFT / LCD display screens and for quick and gentle cleaning of casings, fittings, glass, and smooth metal surfaces. The foam does not trickle down on vertical surfaces. 0 0 Note A Unavailable in some countries. Express delivery not available. Version 1083011 General-purpose cleaner. Professional Degreaser 1000 ml 1 can 08 3014 General-purpose cleaner, Professional Degreaser 500 ml 12 Spray 083015 Brake cleaner, Brakleen 500 ml 24 Spray 08 3016 Cleaning concentrate, Complex Blue 5000 ml 1 can 08 3018 Contact Cleaner 500 ml 12 Spray 083022 High-performance safety cleaner, Lectra Clean II 500 ml 12 Spray 083024 Stainless steel cleaning and maintenance foam, Inox Kleen 500 ml 12 Spray 083025 Cleaning and protective oil, 3-36 500 ml 12 Spray 083026 TFT screen cleaner, Flatscreen Cleaner 500 ml 12 Spray 083022 Lj j r 083024 Main catalogue Hoffmann Group 46 1547
