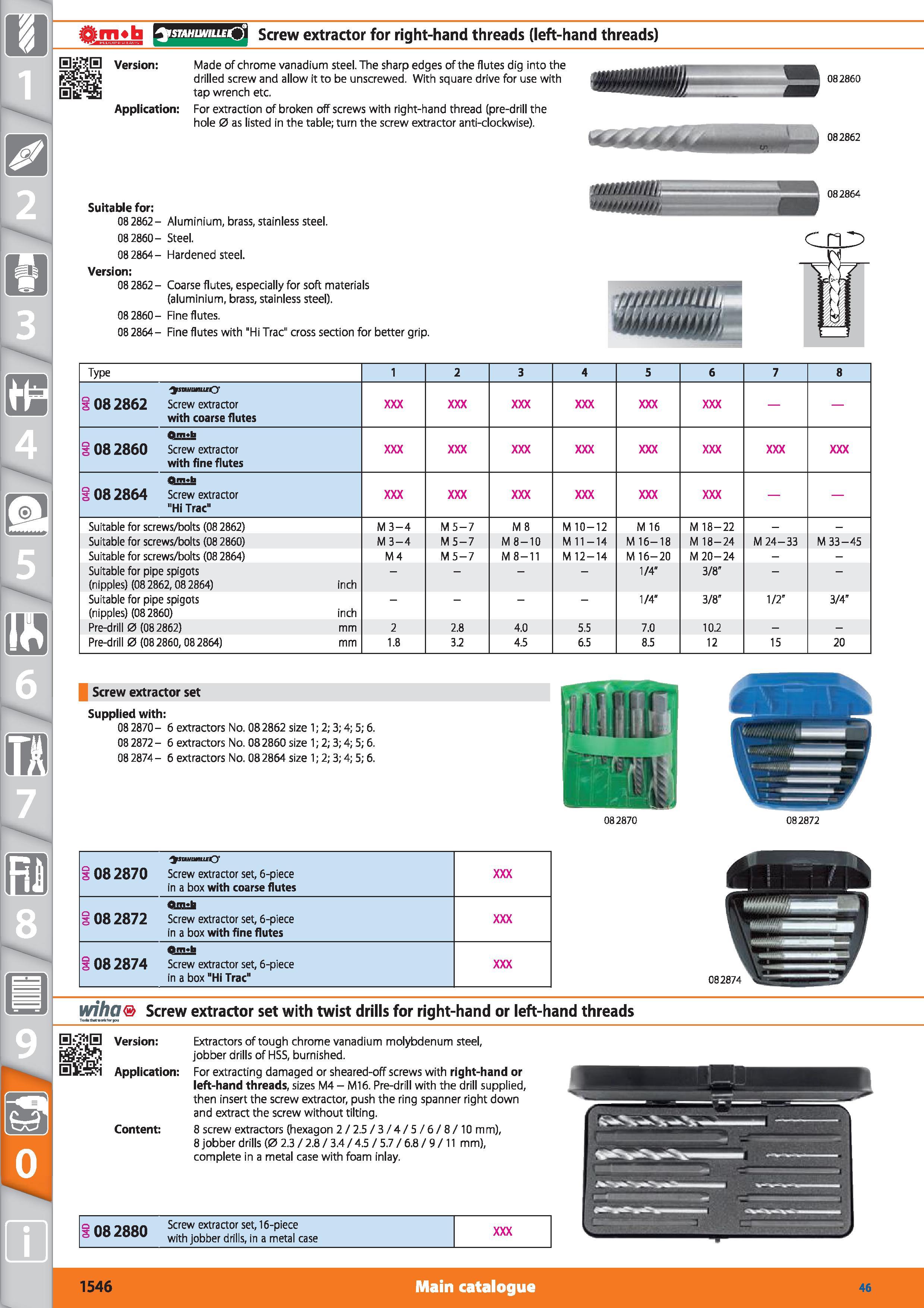

istahiwilleQ Screw extractor for right-hand threads (left-hand threads) Made of chrome vanadium steel. The sharp edges of the flutes dig into the drilled screw and allow it to be unscrewed. With square drive for use with tap wrench etc. Application For extraction of broken off screws with right-hand thread (pre-drill the hole 0 as listed in the table; turn the screw extractor anti-clockwise). Suitable for 08 2862- Aluminium, brass, stainless steel. 08 2860- Steel. 08 2864- Hardened steel. Version 08 2862- 08 2860-08 2864- Coarse flutes, especially for soft materials (aluminium, brass, stainless steel). Fine flutes. Fine flutes with "Hi Trac" cross section for better grip. 082860 082862 082864 c ro Type 1 2 3 4 5 6 7 8 SDKMIHUfO 08 2862 Screw extractor with coarse flutes flm h 08 2860 Screw extractor with fine flutes Qmjta 1 08 2864 Screw extractor "Hi Trac" Suitable for screws/bolts (08 2862) M 3-4 M 5 7 M 8 M 10-12 M 16 M 18-22 Suitable for screws/bolts (08 2860) M 3-4 M 5-7 M 8-10 M 11-14 M 16-18 M 18-24 M 24-33 M 33-45 Suitable for screws/bolts (08 2864) M 4 M 5 7 M 8-11 M 12-14 M 16-20 M 20-24 Suitable for pipe spigots (nipples) (08 2862,08 2864) inch 1/4' 3/8" Suitable for pipe spigots (nipples) (082860) inch 1/4' 3/8" 1/2" 3/4" Pre-drill 0 (082862) mm 2 2.8 4.0 5.5 7.0 10.2 Pre-drill 0 (08 2860,08 2864) mm 1.8 3.2 4.5 6.5 8.5 12 15 20 Screw extractor set Supplied with 08 2870 - 6 extractors No. 082862 size ; 2; 3; 4; 5; 6. 08 2872- 6 extractors No. 082860 size ; 2; 3; 4; 5; 6. 08 2874- 6 extractors No. 08 2864 size ; 2; 3; 4; 5; 6. 1082870 SnHUHU (y Screw extractor set, 6-piece in a box with coarse flutes 082872 flm h Screw extractor set, 6-piece in a box with fine flutes 082874 Om b Screw extractor set, 6-piece in a box "Hi Trac" 082870 082872 wiha Screw extractor set with twist drills for right-hand or left-hand threads T< ta1h l wk >riou Version Extractors of tough chrome vanadium molybdenum steel, jobber drills of HSS, burnished. Application For extracting damaged or sheared-off screws with right-hand or left-hand threads, sizes M4 - M16. Pre-drill with the drill supplied, then insert the screw extractor, push the ring spanner right down and extract the screw without tilting. Content 8 screw extractors (hexagon 2/2.5 / 3/ 4/ 5/ 6/ 8/10mm), 8 jobber drills (0 2.3 / 2.8 / 3.4 / 4.5 / 5.7 / 6.8 / 9 /11 mm), complete in a metal case with foam inlay. 1082880 Screw extractor set, 16-piece with jobber drills, in a metal case 1546 Main catalogue Hoffmann Group 46 082874
