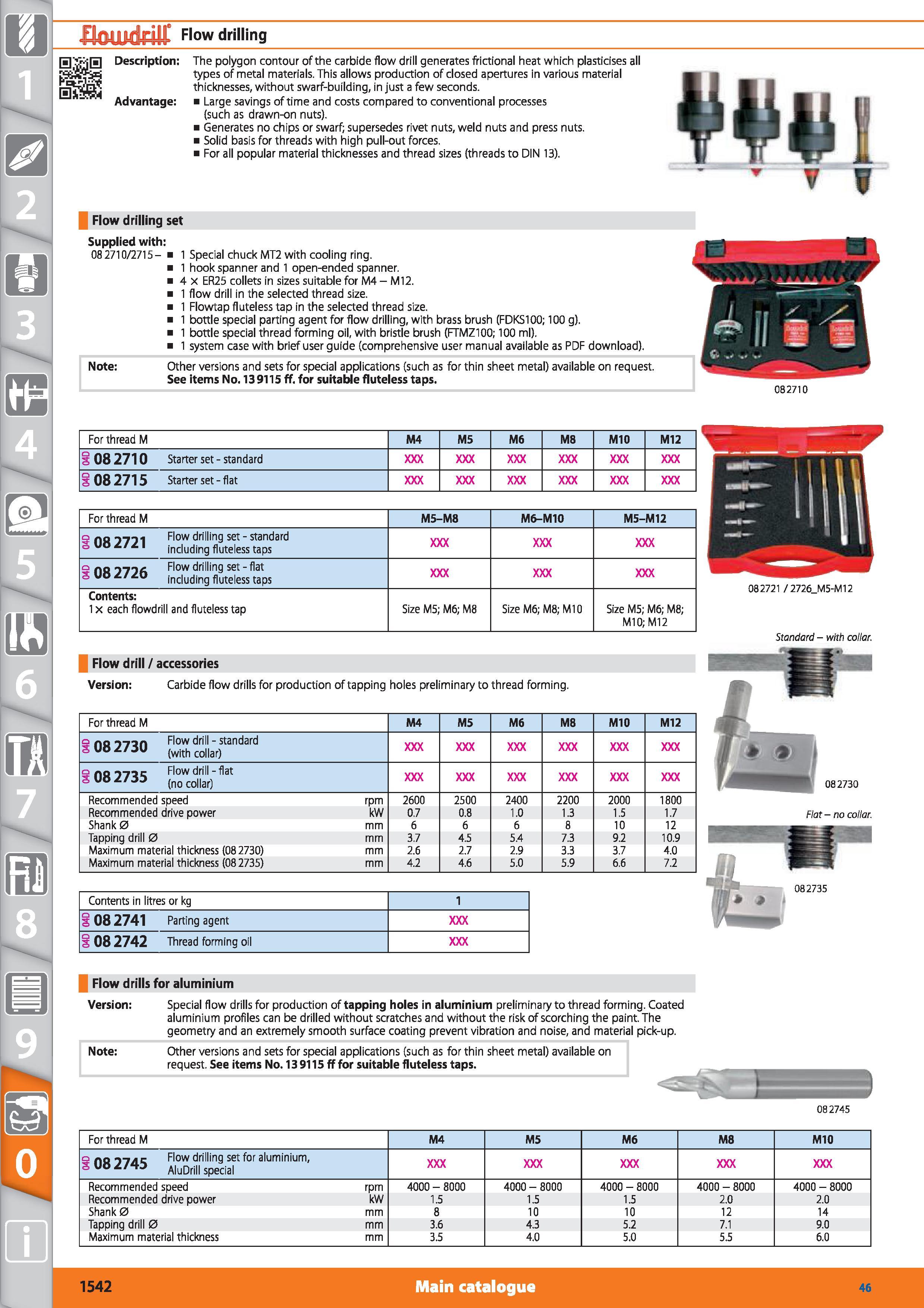

HOUldHlC Flow drilling Description Advantage The polygon contour of the carbide flow drill generates frictional heat which plasticises all types of metal materials. This allows production of closed apertures in various material thicknesses, without swarf-building, in just a few seconds. Large savings of time and costs compared to conventional processes (such as drawn-on nuts). Generates no chips or swarf; supersedes rivet nuts, weld nuts and press nuts. Solid basis for threads with high pull-out forces. For all popular material thicknesses and thread sizes (threads to DIN 13). Flow drilling set v 9 Note Other versions and sets for special applications (such as for thin sheet metal) available on request. See items No. 139115 ff. for suitable fluteless taps. Supplied with 082710/2715- 1 Special chuckMT2 with cooling ring. 1 hook spanner and 1 open-ended spanner. 4 x ER25 collets in sizes suitable for M4 - M12. 1 flow drill in the selected thread size. 1 Flowtap fluteless tap in the selected thread size. 1 bottle special parting agent for flow drilling, with brass brush (FDKS100; 100 g). 1 bottle special thread forming oil, with bristle brush (FTMZ100; 100 ml). 1 system case with brief user guide (comprehensive user manual available as PDF download). 082710 For thread M M4 M5 M6 M8 M10 M12 082710 Starter set - standard 082715 Starter set - flat For thread M M5-M8 M6-M10 M5-M12 SnR77'31 Flow drilling set - standard including fluteless taps o nn Flow drilling set - flat 3 UD z/zo including fluteless taps Contents 1 x each flowdrill and fluteless tap Size M5; M6; M8 Size M6; M8; M10 Size M5; M6; M8; Ml 0; Ml 2 Flow drill / accessories Version Carbide flow drills for production of tapping holes preliminary to thread forming. For thread M M4 M5 M6 M8 M10 M12 no -i-ron Flow drill - standard s 08 2730 (with coNar) o ao no c Flow drill - flat s 08 2735 (no coNar) Recommended speed rpm 2600 2500 2400 2200 2000 1800 Recommended drive power kW 0.7 0.8 1.0 1.3 1.5 1.7 Shank 0 mm 6 6 6 8 10 12 Tapping drill 0 mm 3.7 4.5 5.4 7.3 9.2 10.9 Maximum material thickness (082730) mm 2.6 2.7 2.9 3.3 3.7 4.0 Maximum material thickness (082735) mm 4.2 4.6 5.0 5.9 6.6 7.2 082721 /2726_M5-M12 Standard - with collar. 082730 Contents in litres or kg 1 08 2741 Parting agent 08 2742 Thread forming oil Flow drills for aluminium Version Special flow drills for production of tapping holes in aluminium preliminary to thread forming. Coated aluminium profiles can be drilled without scratches and without the risk of scorching the paint. The geometry and an extremely smooth surface coating prevent vibration and noise, and material pick-up. Note Other versions and sets for special applications (such as for thin sheet metal) available on request. See items No. 139115 ff for suitable fluteless taps. 082745 For thread M M4 M5 M6 M8 M10 no c Flow drilling set for aluminium, S 08 2745 A uDriM spe ia Recommended speed rpm 4000 - 8000 4000 - 8000 4000 - 8000 4000 - 8000 4000 - 8000 Recommended drive power kW 1.5 1.5 1.5 2.0 2.0 Shank 0 mm 8 10 10 12 14 Tapping drill 0 mm 3.6 4.3 5.2 7.1 9.0 Maximum material thickness mm 3.5 4.0 5.0 5.5 6.0 1542 Main catalogue Hoffmann Group 46
