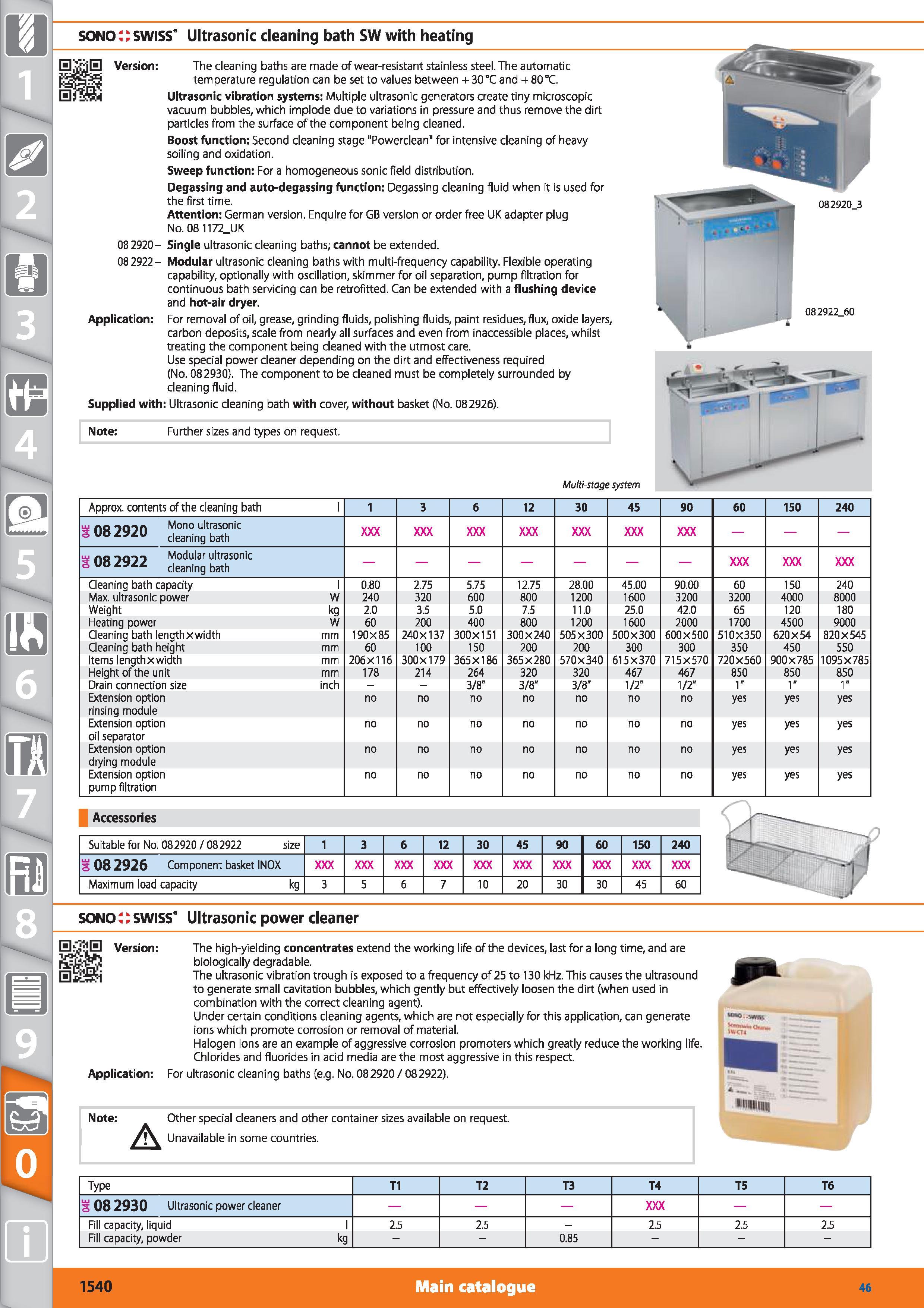

1 SONO SWISS’ Ultrasonic cleaning bath SW with heating Version The cleaning baths are made of wear-resistant stainless steel. The automatic tern perature regulation can be set to values between + 30 "C and + 80 °C. Ultrasonic vibration systems Multiple ultrasonic generators create tiny microscopic vacuum bubbles, which implode due to variations in pressure and thus remove the dirt particles from the surface of the component being cleaned. Boost function Second cleaning stage "Powerdean" for intensive cleaning of heavy soiling and oxidation. Sweep function For a homogeneous sonic field distribution. Degassing and auto-degassing function Degassing cleaning fluid when it is used for the first time. Attention German version. Enquire for GB version or order free UK adapter plug No. 081172_UK 08 2920- Single ultrasonic cleaning baths; cannot be extended. 08 2922 - Modular ultrasonic cleaning baths with multi-frequency capability. Flexible operating capability, optionally with oscillation, skimmer for oil separation, pump filtration for continuous bath servicing can be retrofitted. Can be extended with a flushing device and hot-air dryer. Application For removal of oil, grease, grinding fluids, polishing fluids, paint residues, flux, oxide layers, carbon deposits, scale from nearly all surfaces and even from inaccessible places, whilst treating the component being cleaned with the utmost care. Use special power cleaner depending on the dirt and effectiveness required (No. 08 2930). The component to be cleaned must be completely surrounded by cleaning fluid. Supplied with Ultrasonic cleaning bath with cover, without basket (No. 082926). 082922_60 Note Further sizes and types on request. Multi-stage system Approx. contents of the cleaning bath 1 1 3 6 12 30 45 90 60 150 240 m aq lam Mono ultrasonic 3 Uo ZVZU C eaning bath m no ion Modular ultrasonic Uo cleaning bath Cleaning bath capacity 1 0.80 2.75 5.75 12.75 28.00 45.00 90.00 60 150 240 Max. ultrasonic power W 240 320 600 800 1200 1600 3200 3200 4000 8000 Weight kg 2.0 3.5 5.0 7.5 11.0 25.0 42.0 65 120 180 Heating power W 60 200 400 800 1200 1600 2000 1700 4500 9000 Cleaning bath lengthxwidth mm 190X85 240X137 300X151 300X240 505X300 500X300 600X500 510X350 620X54 820X545 Cleaning bath height mm 60 100 150 200 200 300 300 350 450 550 Items lengthxwidth mm 206x116 300x179 365x186 365x280 570x340 615x370 715x570 720x560 900x785 1095 x 785 Height of the unit mm 178 214 264 320 320 467 467 850 850 850 Drain connection size inch 3/8” 3/8” 3/8” 1/2" 172- r 1” 1” Extension option rinsing module no no no no no no no yes yes yes Extension option oil separator no no no no no no no yes yes yes Extension option drying module no no no no no no no yes yes yes Extension option pump filtration no no no no no no no yes yes yes Accessories Suitable for No. 082920/082922 size 1 3 6 12 30 45 90 60 150 240 3 08 2926 Component basket INOX Maximum load capacity kg 3 5 6 7 10 20 30 30 45 60 SONO;i SWISS Ultrasonic power cleaner 0 'jB Version The high-yielding concentrates extend the working life of the devices, last for a long time, and are jGSWj biologically degradable. The ultrasonic vibration trough is exposed to a frequency of 25 to 130 kHz. This causes the ultrasound to generate small cavitation bubbles, which gently but effectively loosen the dirt (when used in combination with the correct cleaning agent). Under certain conditions cleaning agents, which are not especially for this application, can generate ions which promote corrosion or removal of material. Halogen ions are an example of aggressive corrosion promoters which greatly reduce the working life. Chlorides and fluorides in acid media are the most aggressive in this respect. Application For ultrasonic clea ni ng baths (e.g. No. 08 2920 / 08 2922). Note Other special cleaners and other container sizes available on request. /f\ Unavailable in some countries. VMM '“ .I Type T1 T2 T3 T4 T5 T6 3 08 2930 Ultrasonic power cleaner Fill capacity, liquid I 2.5 2.5 - 2.5 2.5 2.5 Fill capacity, powder kg 0.85 - 1540 Main catalogue Hoffmann Group 46
