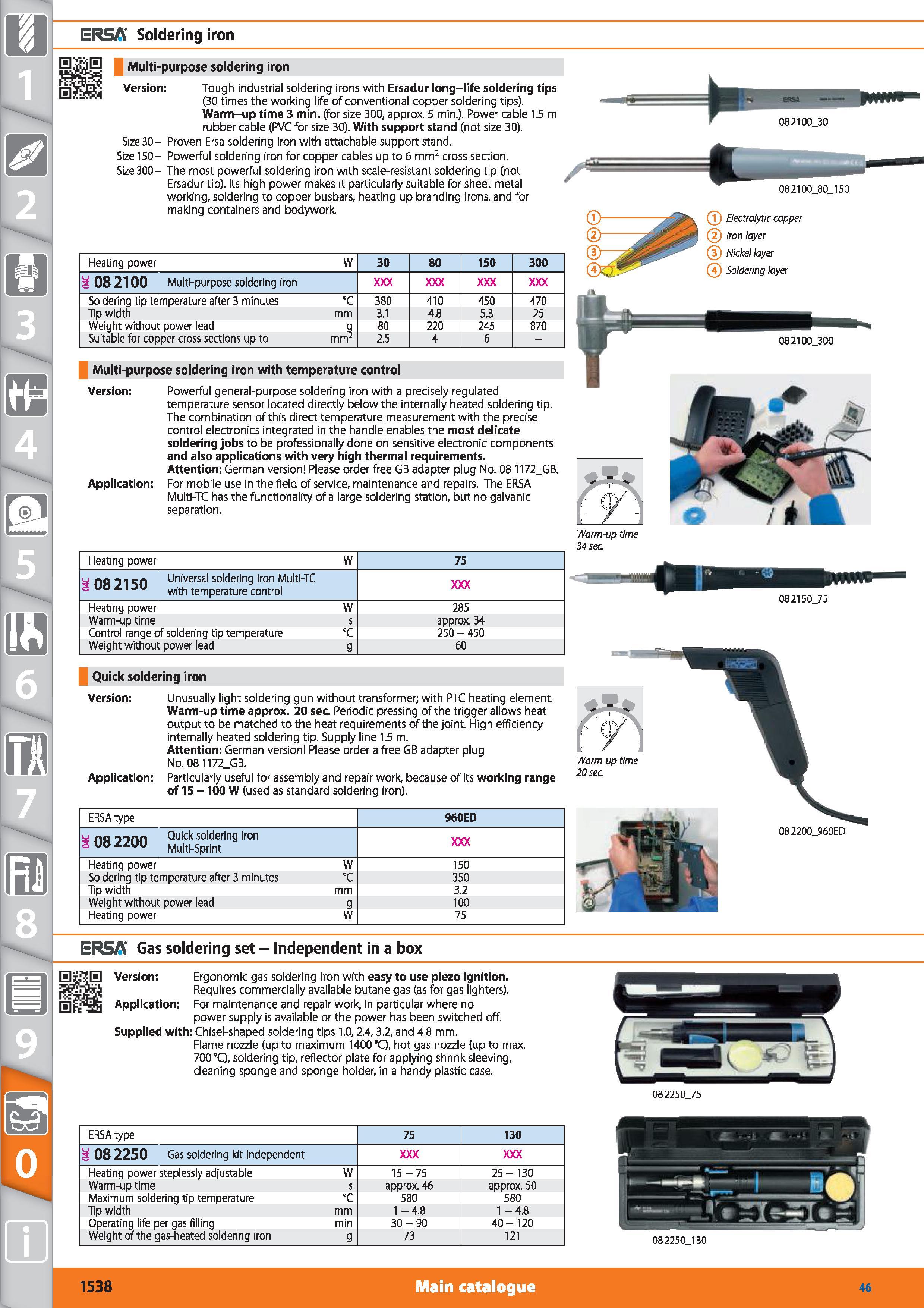

ERSA Soldering iron Multi-purpose soldering iron Version Tough industrial soldering irons with Ersadur long-life soldering tips (30 times the working life of conventional copper soldering tips). Warm-up time 3 min. (for size 300, approx. 5 min.). Power cable 1.5 m rubber cable (PVC for size 30). With support stand (not size 30). Size 30- Proven Ersa soldering iron with attachable support stand. Size 150- Powerful soldering iron for copper cables up to 6 mm2 cross section. Size 300- The most powerful soldering iron with scale-resistant soldering tip (not Ersadur tip). Its high power makes it particularly suitable for sheet metal working, soldering to copper busbars, heating up branding irons, and for making containers and bodywork 082100_80_150 Heating power W 30 80 150 300 S 08 2100 Multi-purpose soldering iron Soldering tip temperature after 3 minutes "C 380 410 450 470 Tip width mm 3.1 4.8 5.3 25 Weight without power lead 3 mm2 80 220 245 870 Suitable for copper cross sections up to 2.5 4 6 - Multi-purpose soldering iron with temperature control Quick soldering iron Version Unusually light soldering gun without transformer; with PTC heating element. Warm-up time approx. 20 sec. Periodic pressing of the trigger allows heat output to be matched to the heat requirements of the joint. High efficiency internally heated soldering tip. Supply line 1.5 m. Attention German version Please order a free GB adapter plug No. 081172_GB. Application Particularly useful for assembly and repair work, because of its working range of 15 -100 W (used as standard soldering iron). Version Powerful general-purpose soldering iron with a precisely regulated temperature sensor located directly below the internally heated soldering tip. The combination of this direct temperature measurement with the precise control electronics integrated in the handle enables the most delicate soldering jobs to be professionally done on sensitive electronic components and also applications with very high thermal requirements. Attention German version Please order free GB adapter plug No. 08 1172_GB. Application For mobile use in the field of service, maintenance and repairs. The ERSA Multi-TC has the functionality of a large soldering station, but no galvanic separation. Heating power W 75 y no 71 cn Universal soldering iron Multi-TC with temperature control Heating power W 285 Warm-up time s approx. 34 Control range of soldering tip temperature t 250 - 450 Weight without power lead g 60 ERSA type 960ED y n0 Tj/in Quick soldering iron s ue zzuu Mu ti_Sprint Heating power W 150 Soldering tip temperature after 3 minutes °C 350 Tip width mm 3.2 Weight without power lead g 100 Heating power W 75 ( Electrolytic copper (j Iron layer (3 Nickel layer (4 Soldering layer Warm-up time 34 sec 082150_75 ERSA Gas soldering set - Independent in a box Version Ergonomic gas soldering iron with easy to use piezo ignition. Requires commercially available butane gas (as for gas lighters). Application For maintenance and repair work, in particular where no power supply is available or the power has been switched off. Supplied with Chisel-shaped soldering tips 1.0,2.4,3.2, and 4.8 mm. Flame nozzle (up to maximum 1400 °Q, hot gas nozzle (up to max. 700°C), soldering tip, reflector plate for applying shrink sleeving, cleaning sponge and sponge holder, in a handy plastic case. 082250_75 ERSA type 75 130 H 08 2250 Gas soldering kit Independent Heating power steplessly adjustable W 15-75 25-130 Warm-up time s approx. 46 approx. 50 Maximum soldering tip temperature °C 580 580 Tip width mm 1-4.8 1 -4.8 Operating life per gas filling mm 30-90 40-120 Weight of the gas-heated soldering iron g 73 121 08 2250J 30 1538 Main catalogue Hoffmann Group 46
