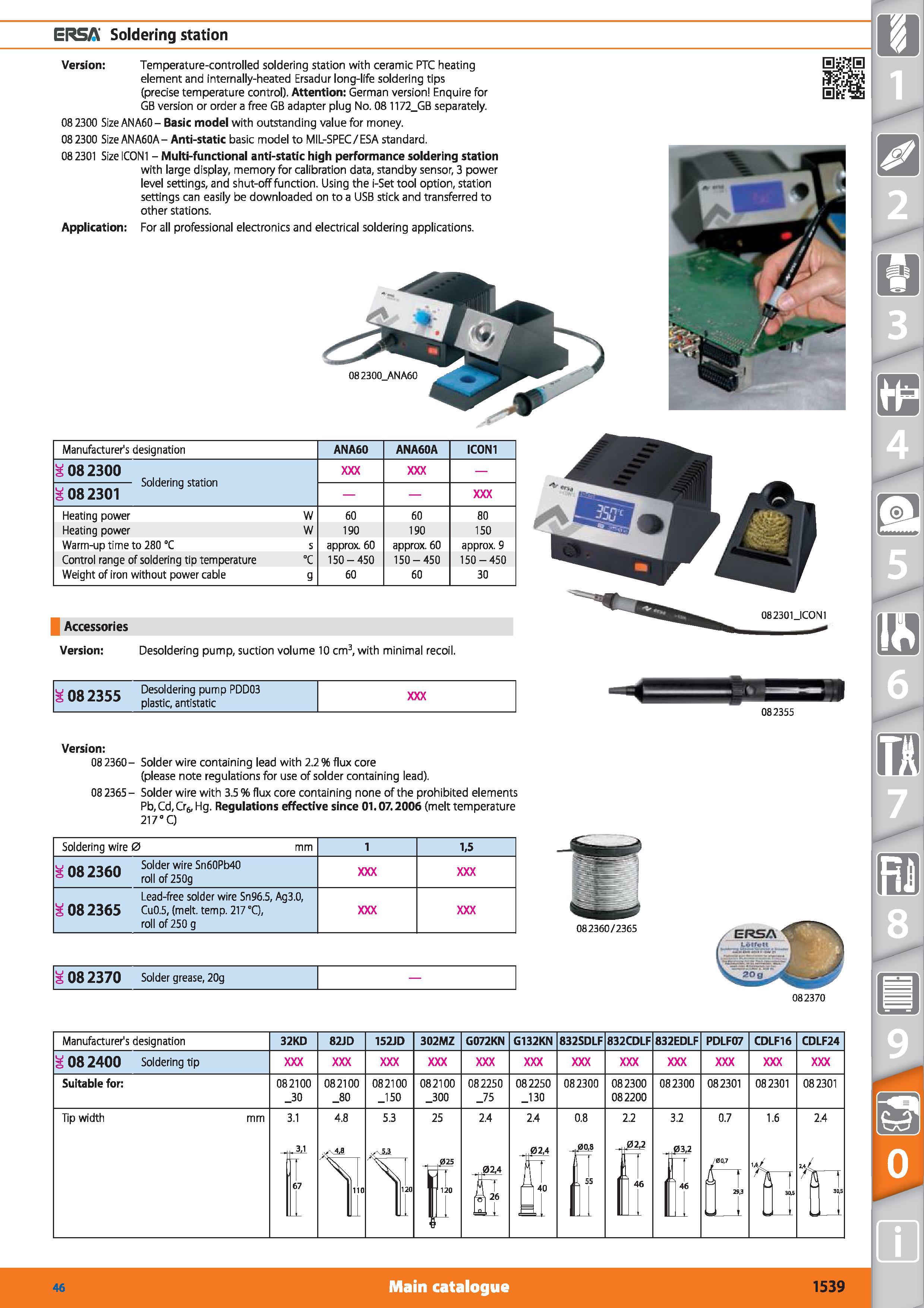

ERSA Soldering station Version Temperature-controlled soldering station with ceramic PTC heating element and internally-heated Ersadur long-life soldering tips (precise temperature control). Attention German version Enquire for GB version or order a free GB adapter plug No. 081172_GB separately. 08 2300 SizeANA60- Basic model with outstanding value for money. 08 2300 Size ANA60A-Anti-static basic model to MIL-SPEC/ESA standard. 08 2301 Size ICON1 - Multi-functional anti-static high performance soldering station with large display, memory for calibration data, standby sensor, 3 power level settings, and shut-off function. Using the i-Set tool option, station settings can easily be downloaded on to a USB stick and transferred to other stations. Application For all professional electronics and electrical soldering applications. Manufacturer's designation ANA60 ANA60A IC0N1 8 082300 Solderinq stdtion 8082301 Heating power W 60 60 80 Heating power W 190 190 150 Warm-up time to 280 °C s approx 60 approx. 60 approx. 9 Control range of soldering tip temperature °C 150 - 450 150-450 150-450 Weight of iron without power cable g 60 60 30 Accessories Version Desoldering pump, suction volume 10 cm3, with minimal recoil. w no oacc Desoldering pump PDD03 S Uo plastic, antistatic 082355 Version 08 2360 Solder wire containing lead with 2.2 flux core (please note regulations for use of solder containing lead). 08 2365- Solder wire with 3.5% flux core containing none of the prohibited elements Pb, Cd,Cr6, Hg. Regulations effective since 01.07.2006 (melt temperature 217° C) Soldering wire 0 mm 1 1,5 8 082360 Solder wire Sn60Pb40 roll of 250g 8082365 Lead-free solder wire Sn96.5, Ag3.0, Cu0.5, (melt. temp. 217 °Q, roll of 250 g 8082370 Solder grease, 20g 082360/2365 082370 Main catalogue Hoffmann Group 46 1539 08 2300_ANA60
