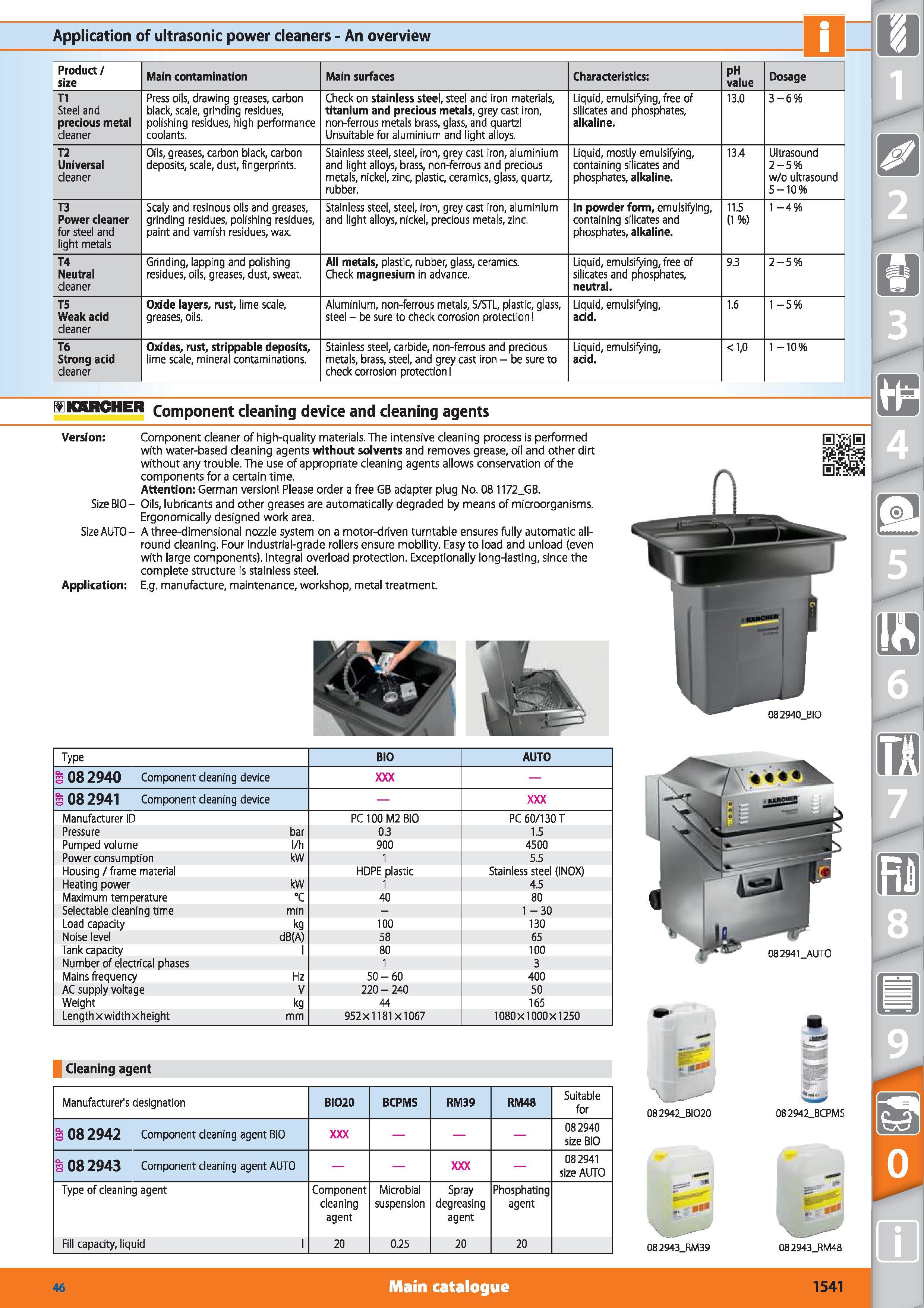

1541 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1541

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1541 1541 ENG Lab2u

Application of ultrasonic power cleaners - An overview u Product / size Main contamination Main surfaces Characteristics pH value Dosage Tl Steel and precious metal cleaner Press oils, drawing greases, carbon black, scale, grinding residues, polishing residues, high performance coolants. Check on stainless steel, steel and iron materials, titanium and precious metals, grey cast iron, non-ferrous metals brass, glass, and quartz Unsuitable for aluminium and light alloys. Liquid, emulsifying, free of silicates and phosphates, alkaline. 13.0 3-6% T2 Universal cleaner Oils, greases, carbon black, carbon deposits, scale, dust, fingerprints. Stainless steel, steel, iron, grey cast iron, aluminium and light alloys, brass, non-ferrous and precious metals, nickel, zinc, plastic, ceramics, glass, quartz, rubber. Liquid, mostly emulsifying, containing silicates and phosphates, alkaline. 13.4 Ultrasound 2-5% w/o ultrasound 5-10% T3 Power cleaner for steel and light metals Scaly and resinous oils and greases, grinding residues, polishing residues, paint and varnish residues, wax. Stainless steel, steel, iron, grey cast iron, aluminium and light alloys, nickel, precious metals, zinc. In powder form, emulsifying, containing silicates and phosphates, alkaline. 11.5 (1%) 1 -4% T4 Neutral cleaner Grinding, lapping and polishing residues, oils, greases, dust, sweat. All metals, plastic, rubber, glass, ceramics. Check magnesium in advance. Liquid, emulsifying, free of silicates and phosphates, neutral. 9.3 2-5% T5 Weak acid cleaner Oxide layers, rust, lime scale, greases, oils. Aluminium, non-ferrous metals, S/STL, plastic, glass, steel - be sure to check corrosion protection Liquid, emulsifying, acid. 1.6 1 -5% T6 Strong acid cleaner Oxides, rust, strippable deposits, lime scale, mineral contaminations. Stainless steel, carbide, non-ferrous and precious metals, brass, steel, and grey cast iron - be sure to check corrosion protection Liquid, emulsifying, acid. <1,0 1-10% Component cleaning device and cleaning agents Version Component cleaner of high-quality materials. The intensive cleaning process is performed with water-based cleaning agents without solvents and removes grease, oil and other dirt without any trouble. The use of appropriate cleaning agents allows conservation of the components for a certain time. Attention German version Please order a free GB adapter plug No. 081172_GB. Size BIO- Oils, lubricants and other greases are automatically degraded by means of microorganisms. Ergonomically designed work area. Size AUTO- A three-dimensional nozzle system on a motor-driven turntable ensures fully automatic allround cleaning. Four industrial-grade rollers ensure mobility. Easy to load and unload (even with large components). Integral overload protection. Exceptionally long-lasting, since the complete structure is stainless steel. Application E.g. manufacture, maintenance, workshop, metal treatment. 082940_B 0 Type BIO AUTO 3 08 2940 Component cleaning device S 08 2941 Component cleaning device Manufacturer ID PC 100 M2 BIO PC 60/130 T Pressure bar 0.3 1.5 Pumped volume l/h 900 4500 Power consumption kW 1 5.5 Flousing / frame material HDPE plastic Stainless steel (INOX) Heating power kW 1 4.5 Maximum temperature °C 40 80 Selectable cleaning time min - 1 -30 Load capacity kg 100 130 Noise level dB(A) 58 65 Tank capacity 1 80 100 Number of electrical phases 1 3 Mains frequency Hz 50-60 400 AC supply voltage V 220 - 240 50 Weight kg 44 165 Lengthxwidthxheight mm 952X1181X1067 1080X1000X1250 082941_AUTO Cleaning agent Manufacturer's designation BI020 BCPMS RM39 RM48 Suitable for 082942_BI020 3 08 2942 Component cleaning agent BIO 082940 size BIO S 08 2943 Component cleaning agent AUTO 082941 size AUTO Type of cleaning agent Component Microbial Spray Phosphating cleaning suspension degreasing agent agent agent Fill capacity, liquid 1 20 0.25 20 20 082943_RM39 082942_BCPMS 082943_RM48 Main catalogue Hoffmann Group 46 1541
