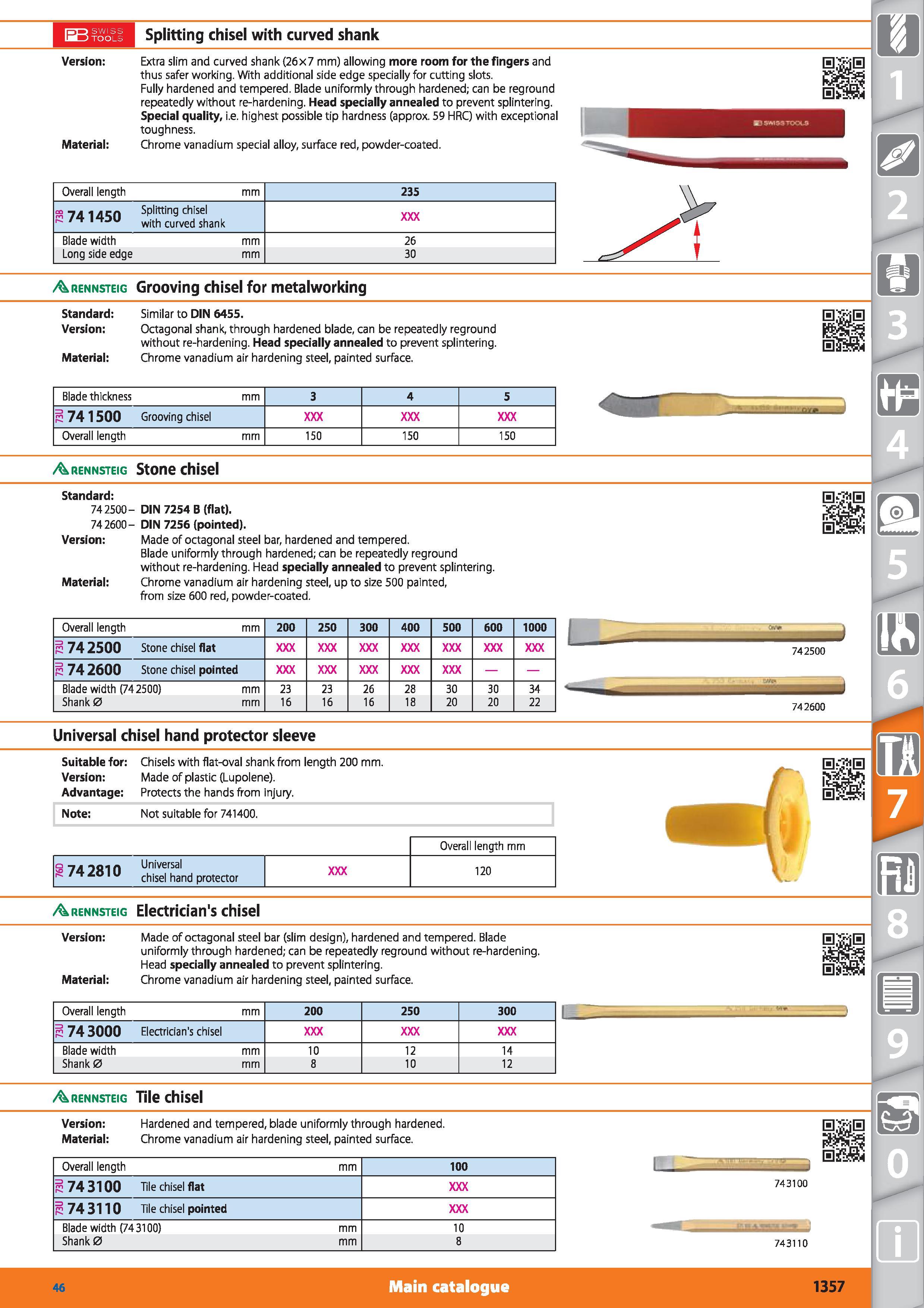

Splitting chisel with curved shank Version Extra slim and curved shank (26x7 mm) allowing more room for the fingers and thus safer working. With additional side edge specially for cutting slots. Fully hardened and tempered. Blade uniformly through hardened; can be reground repeatedly without re-hardening. Head specially annealed to prevent splintering. Special quality, i.e. highest possible tip hardness (approx. 59 HRC) with exceptional toughness. Material Chrome vanadium special alloy, surface red, powder-coated. IS SWI Overall length mm 235 a 741450 Splitting chisel with curved shank Blade width mm 26 Long side edge mm 30 Arennsteig Grooving chisel for metalworking Standard Similar to DIN 6455. Version Octagonal shank, through hardened blade, can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Material Chrome vanadium air hardening steel, painted surface. Blade thickness mm 3 4 5 g 741500 Grooving chisel Overall length mm 150 150 150 Arennsteig Stone chisel Standard 742500- DIN 7254 B (flat). 742600- DIN 7256 (pointed). Version Made of octagonal steel bar, hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Material Chrome vanadium air hardening steel, up to size 500 painted, from size 600 red, powder-coated. Overall length mm 200 250 300 400 500 600 1000 a 74 2500 Stone chisel flat a 74 2600 Stone chisel pointed Blade width (742500) mm 23 23 26 28 30 30 34 Shank 0 mm 16 16 16 18 20 20 22 Universal chisel hand protector sleeve Suitable for Chisels with flat-oval shank from length 200 mm. Version Made of plastic (Lupolene). Advantage Protects the hands from injury. Note Not suitable for 741400. Overall length mm a -j. -join Universal s chisel hand protector 120 Arennsteig Electrician's chisel Version Made of octagonal steel bar (slim design), hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Material Chrome vanadium air hardening steel, painted surface. Overall length mm 200 250 300 a 74 3000 Electrician's chisel Blade width mm 10 12 14 Shank 0 mm 8 10 12 Arennsteig Tile chisel Version Hardened and tempered, blade uniformly through hardened. Material Chrome vanadium air hardening steel, painted surface. Overall length mm 100 r 743100 Tile chisel flat r 743110 Tile chisel pointed Blade width (743100) mm 10 Shank 0 mm 8 I sp EES Main catalogue Hoffmann Group 46 1357
