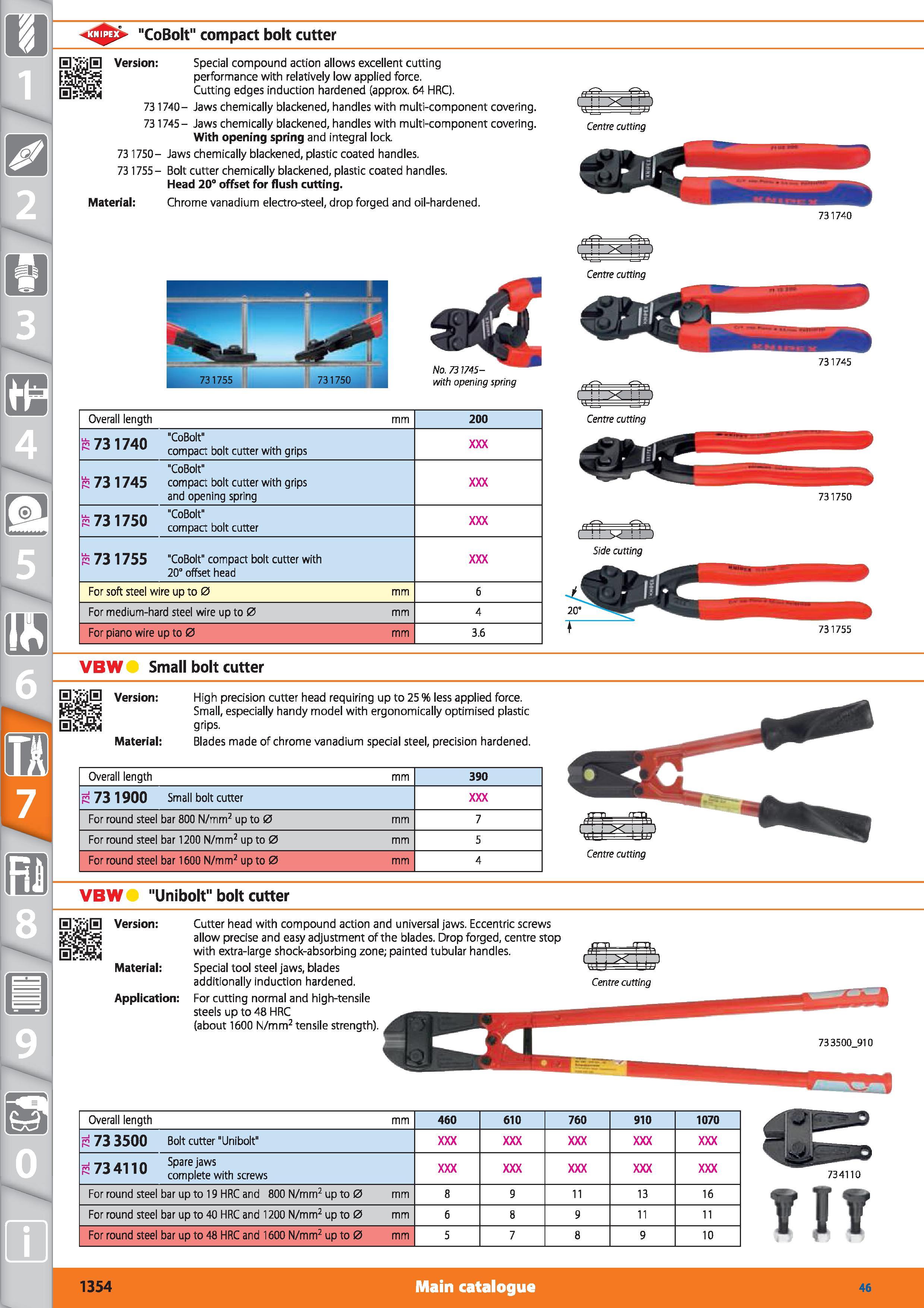

<3 > "CoBolt" compact bolt cutter Version Special compound action allows excellent cutting performance with relatively low applied force. Cutting edges induction hardened (approx. 64 HRC). 73 1 740- Jaws chemically blackened, handles with multi-component covering. 731745- Jaws chemically blackened, handles with multi-component covering. With opening spring and integral lock 73 1750- Jaws chemically blackened, plastic coated handles. 73 1755- Bolt cutter chemically blackened, plastic coated handles. Head 20° offset for flush cutting. Material Chrome vanadium electro-steel, drop forged and oil-hardened. Centre cutting 731740 x i n 731755 731750 No. 731745-with opening spring Overall length mm 200 ft 731740 "CoBolt" compact bolt cutter with grips ft 731745 "CoBolt" compact bolt cutter with grips and opening spring ft 731750 "CoBolt" compact bolt cutter ft 731755 "CoBolt" compact bolt cutter with 20° offset head For soft steel wire up to 0 mm 6 For medium-hard steel wire up to 0 mm 4 For piano wire up to 0 mm 3.6 VBW Small bolt cutter High precision cutter head requiring up to 25 less applied force. Small, especially handy model with ergonomically optimised plastic grips. Material Blades made of chrome vanadium special steel, precision hardened. Overall length mm 390 ft 73 1900 Small bolt cutter For round steel bar 800 N/mm2 up to 0 mm 7 For round steel bar 1200 N/mm2 up to 0 mm 5 For round steel bar 1600 N/mm2 up to 0 mm 4 Centre cutting r x in Centre cutting ( m w in Side cutting 731745 731750 731755 Centre cutting VBW "Unibolt" bolt cutter Version Cutter head with compound action and universal jaws. Eccentric screws allow precise and easy adjustment of the blades. Drop forged, centre stop with extra-large shock-absorbing zone; painted tubular handles. Material Special tool steel jaws, blades additionally induction hardened. Application For cutting normal and high-tensile steels up to 48 HRC (about 1600 N/mm2 tensile strength). Centre cutting Overall length mm 460 610 760 910 1070 ft 73 3500 Bolt cutter "Unibolt" ft 734110 Spare jaws complete with screws For round steel bar up to 19 HRC and 800 N/mm2 up to 0 mm 8 9 11 13 16 For round steel bar up to 40 HRC and 1200 N/mm2 up to 0 mm 6 8 9 11 11 For round steel bar up to 48 HRC and 1600 N/mm2 up to 0 mm 5 7 8 9 10 1354 46 734110 TIT
