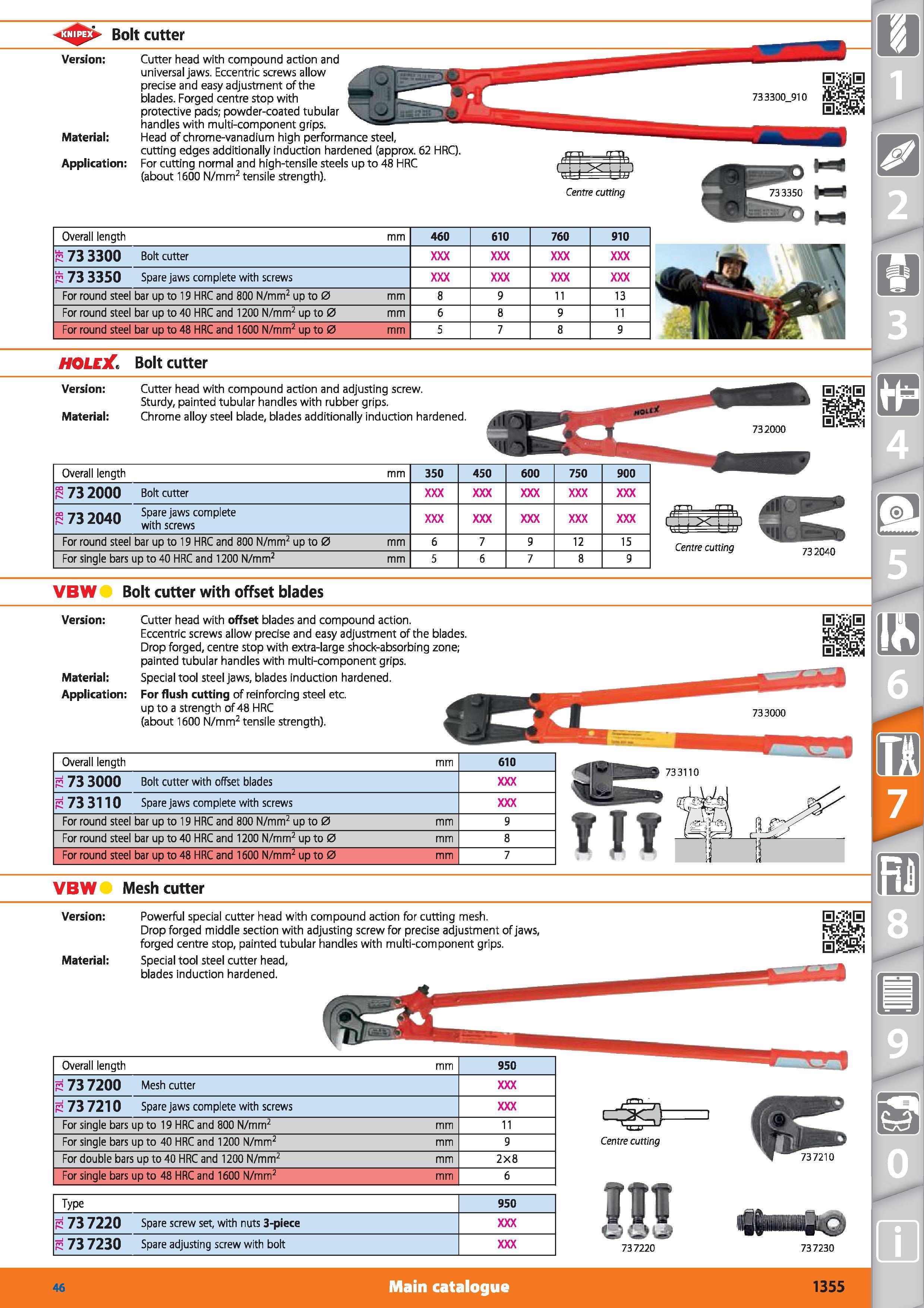

Bolt cutter Version Cutter head with compound action and universal jaws. Eccentric screws allow precise and easy adjustment of the blades. Forged centre stop with protective pads; powder-coated tubular handles with multi-component grips. Material Head of chrome-vanadium high performance steel, cutting edges additionally induction hardened (approx. 62 HRC). Application For cutting normal and high-tensile steels up to 48 HRC (about 1600 N/mm2 tensile strength). Centre cutting Overall length mm 460 610 760 910 R 73 3300 Bolt cutter R 73 3350 Spare jaws complete with screws For round steel bar up to 19 HRC and 800 N/mm2 up to 0 mm 8 9 11 13 For round steel bar up to 40 HRC and 1200 N/mm2 up to 0 mm 6 8 9 11 For round steel bar up to 48 HRC and 1600 N/mm2 up to 0 mm 5 7 8 9 HOLEX Bolt cutter Version Material Cutter head with compound action and adjusting screw. Sturdy, painted tubular handles with rubber grips. Chrome alloy steel blade, blades additionally induction hardened Overall length mm 350 450 600 750 900 S 73 2000 Bolt cutter S 73 2040 Spare jaws complete with screws For round steel bar up to 19 HRC and 800 N/mm2 up to 0 mm 6 7 9 12 15 For single bars up to 40 HRC and 1200 N/mm2 mm 5 6 7 8 9 VBW Bolt cutter with offset blades Version Material Application Cutter head with offset blades and compound action. Eccentric screws allow precise and easy adjustment of the blades. Drop forged, centre stop with extra-large shock-absorbing zone; painted tubular handles with multi-component grips. Special tool steel jaws, blades induction hardened. For flush cutting of reinforcing steel etc. up to a strength of 48 HRC (about 1600 N/mm2 tensile strength). Overall length mm 610 R 73 3000 Bolt cutter with offset blades R 73 3110 Spare jaws complete with screws For round steel bar up to 19 HRC and 800 N/mm2 up to 0 mm 9 For round steel bar up to 40 HRC and 1200 N/mm2 up to 0 mm 8 For round steel bar up to 48 HRC and 1600 N/mm2 up to 0 mm 7 VBW Mesh cutter Version Powerful special cutter head with compound action for cutting mesh Drop forged middle section with adjusting screw for precise adjustment of jaws, forged centre stop, painted tubular handles with multi-component grips. Material Special tool steel cutter head, blades induction hardened. Overall length mm 950 R 73 7200 Mesh cutter r 73 7210 Spare jaws complete with screws For single bars up to 19 HRC and 800 N/mm2 mm 11 For single bars up to 40 HRC and 1200 N/mm2 mm 9 For double bars up to 40 HRC and 1200 N/mm2 mm 2X8 For single bars up to 48 HRC and 1600 N/mm2 mm 6 Type 950 r 73 7220 Spare screw set, with nuts 3-piece R 73 7230 Spare adjusting screw with bolt (JOU 737220 Main catalogue Hoffmann Group 46 1355
