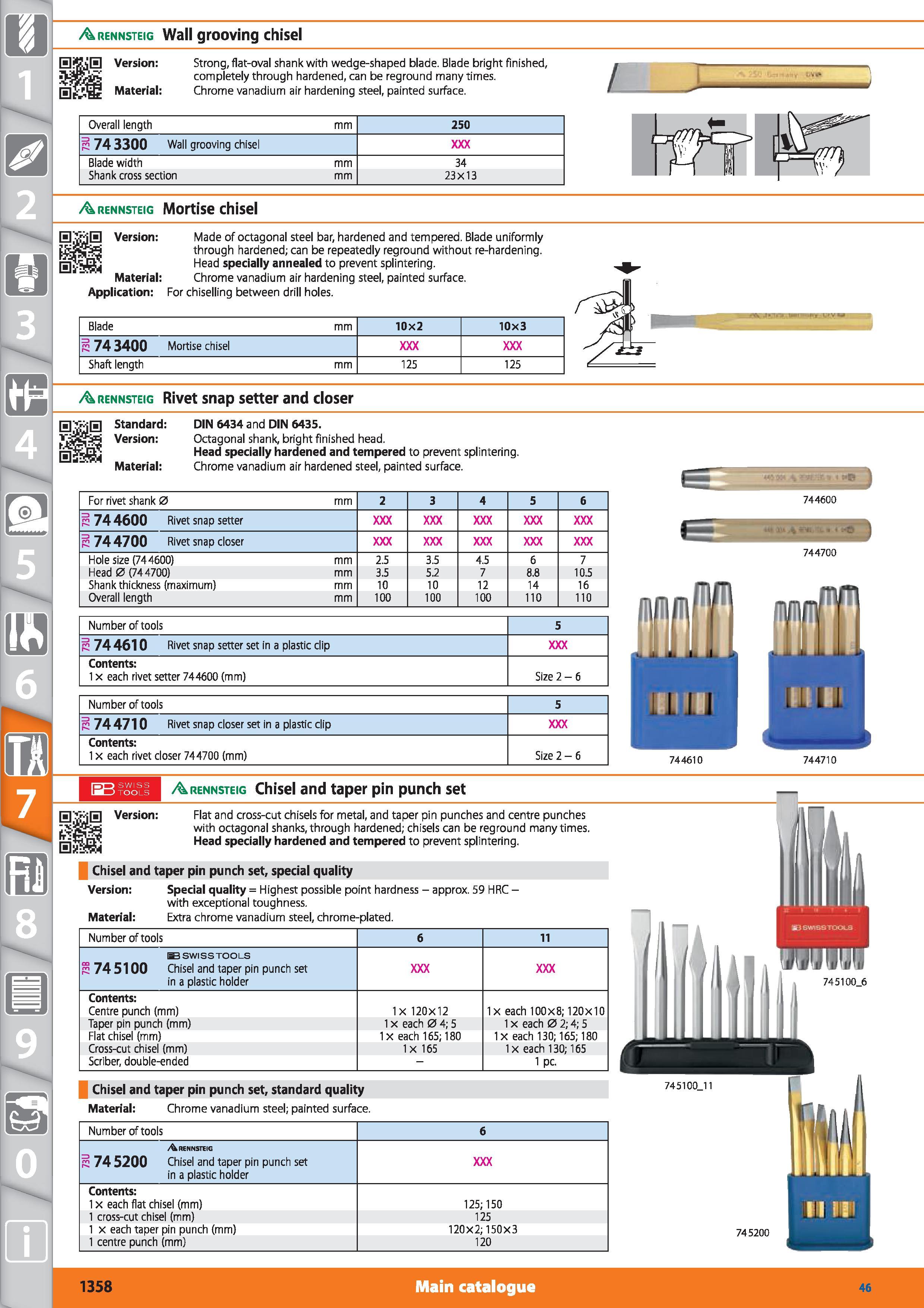

1 Arennsteig Wall grooving chisel 0 Version Material Strong, flat-oval shank with wedge-shaped blade. Blade bright finished, completely through hardened, can be reground many times. Chrome vanadium air hardening steel, painted surface. i.kr Overall length mm 250 R 74 3300 Wall grooving chisel Blade width mm 34 Shank cross section mm 23X13 Arennsteig Mortise chisel Version Made of octagonal steel bar, hardened and tempered. Blade uniformly through hardened; can be repeatedly reground without re-hardening. Head specially annealed to prevent splintering. Material Chrome vanadium air hardening steel, painted surface. Application For chiselling between drill holes. Blade mm 10x2 10x3 R 74 3400 Mortise chisel Shaft length mm 125 125 Arennsteig Rivet snap setter and closer 0 Standard Version Material DIN 6434 and DIN 6435. Octagonal shank, bright finished head. Head specially hardened and tempered to prevent splintering. Chrome vanadium air hardened steel, painted surface. For rivet shank 0 mm 2 3 4 5 6 r 74 4600 Rivet snap setter R 74 4700 Rivet snap closer Hole size (744600) mm 2.5 3.5 4.5 6 7 Head 0 (744700) mm 3.5 5.2 7 8.8 10.5 Shank thickness (maximum) mm 10 10 12 14 16 Overall length mm 100 100 100 110 110 744600 744700 Number of tools 5 R 74 4610 Rivet snap setter set in a plastic clip Contents 1 x each rivet setter 744600 (mm) Size 2-6 Number of tools 5 R 74 4710 Rivet snap closer set in a plastic clip Contents 1 x each rivet closer 744700 (mm) Size 2-6 744610 Arennsteig Chisel and taper pin punch set Version Flat and cross-cut chisels for metal, and taper pin punches and centre punches with octagonal shanks, through hardened; chisels can be reground many times. Head specially hardened and tempered to prevent splintering. Chisel and taper pin punch set, special quality Version Special quality Highest possible point hardness - approx. 59 HRC - with exceptional toughness. Material Extra chrome vanadium steel, chrome-plated. Number of tools 6 11 ESWISSTOOLS r 74 5100 Chisel and taper pin punch set in a plastic holder Contents Centre punch (mm) 1x 120X12 lx each 100x8; 120x10 Taper pin punch (mm) 1 x each 0 4; 5 1 x each 0 2; 4; 5 Flat chisel (mm) lx each 165; 180 ixeach 130; 165; 180 Cross-cut chisel (mm) 1x 165 ixeach 130; 165 Scriber, double-ended - 1 pc. Chisel and taper pin punch set, standard quality Material Chrome vanadium steel; painted surface. Number of tools 6 Arennsteig r 74 5200 Chisel and taper pin punch set in a plastic holder Contents 1 x each flat chisel (mm) 125; 150 1 cross-cut chisel (mm) 125 1 x each taper pin punch (mm) 120x2; 150x3 1 centre punch (mm) 120 745200 744710 1358 Main catalogue Hoffmann Group 46
