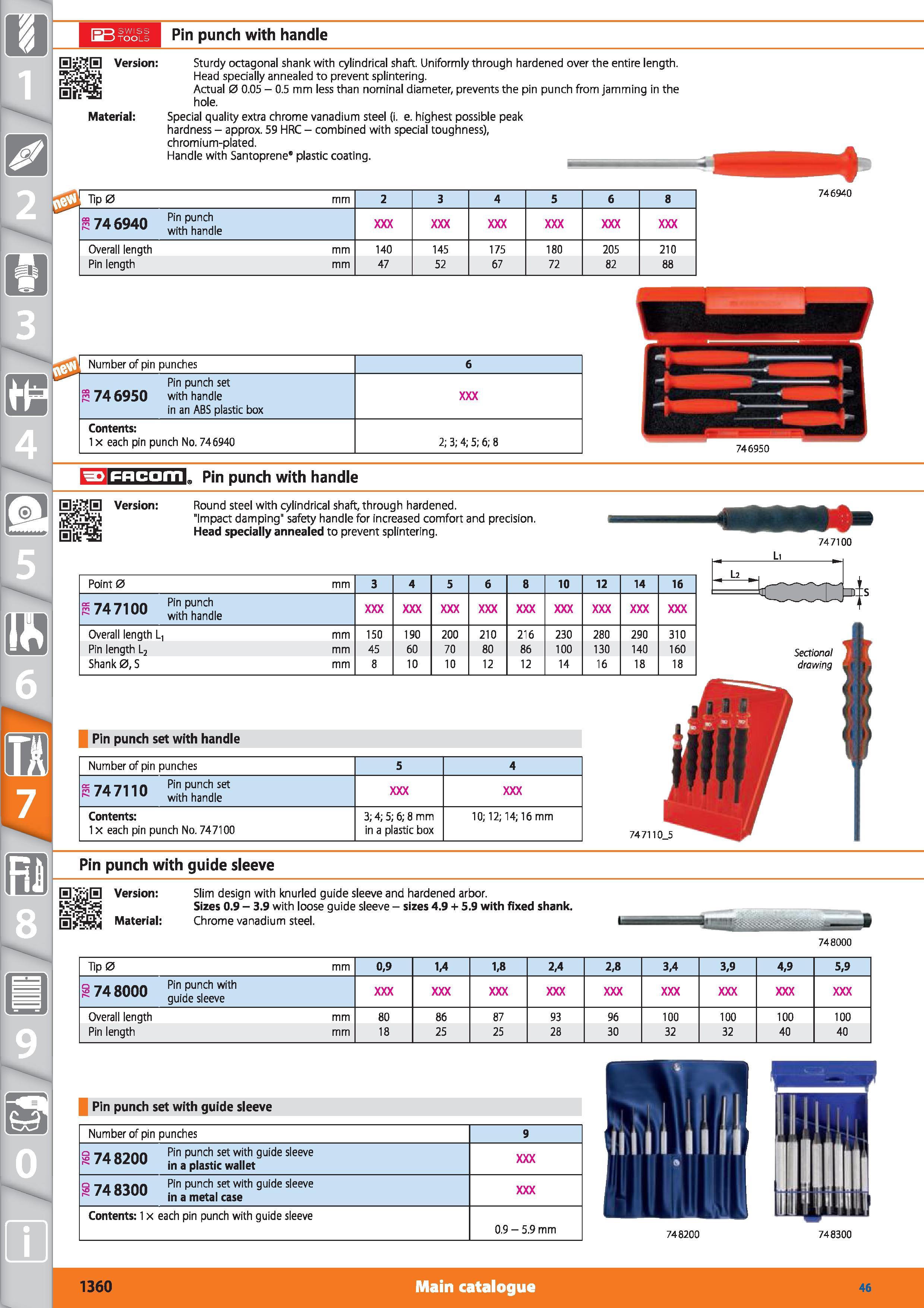

1360 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1360

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1360 1360 ENG Lab2u

1 Pin punch with handle 0j 50 Version Bpffi Material Sturdy octagonal shank with cylindrical shaft. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Actual 0 0.05 - 0.5 mm less than nominal diameter, prevents the pin punch from jamming in the hole. Special quality extra chrome vanadium steel (i. e. highest possible peak hardness - approx. 59 HRC - combined with special toughness), chromium-plated. Handle with Santoprene” plastic coating. Tip 0 mm 2 3 4 5 6 8 fi 74 6940 Pin punch with handle Overall length mm 140 145 175 180 205 210 Pin length mm 47 52 67 72 82 88 746940 Number of pin punches 6 Pin punch set fi 74 6950 with handle in an ABS plastic box Contents 1 x each pin punch No. 746940 2; 3; 4; 5; 6; 8 746950 pncom Pin punch with handle HeS-H Version Round steel with cylindrical shaft, through hardened. jjgOjgji "Impact damping" safety handle for increased comfort and precision. Head specially annealed to prevent splintering. 747100 Point 0 mm 3 4 5 6 8 10 12 14 16 “747100 Pin punch -./‘I/IUU with handle Overall length L, mm 150 190 200 210 216 230 280 290 310 Pin length L2 mm 45 60 70 80 86 100 130 140 160 Shank 0, S mm 8 10 10 12 12 14 16 18 18 Sectional drawing Pin punch set with handle Number of pin punches 5 4 ‘E-jji-iim Pin punch set K 747110 with handle Contents 1 x each pin punch No. 747100 3; 4; 5; 6; 8 mm in a plastic box 10; 12; 14; 16 mm 747110_5 Pin punch with guide sleeve HSjjH Version Material Slim design with knurled guide sleeve and hardened arbor. Sizes 0.9 - 3.9 with loose guide sleeve - sizes 4.9 + 5.9 with fixed shank. Chrome vanadium steel. 748000 Tip 0 mm 0,9 1,4 1,8 2,4 2,8 3,4 3,9 4,9 5,9 748000 Pin punch with guide sleeve Overall length mm 80 86 87 93 96 100 100 100 100 Pin length mm 18 25 25 28 30 32 32 40 40 Pin punch set with guide sleeve Number of pin punches 9 -7 a oonn P'n Punch set with guide sleeve s ozuu jn a p astjc waMet q oonn Pin punch set with guide sleeve 74 8300 rf.i in a metal case Contents 1 x each pin punch with guide sleeve 0.9 - 5.9 mm 748200 748300 1360 Main catalogue Hoffmann Group 46
