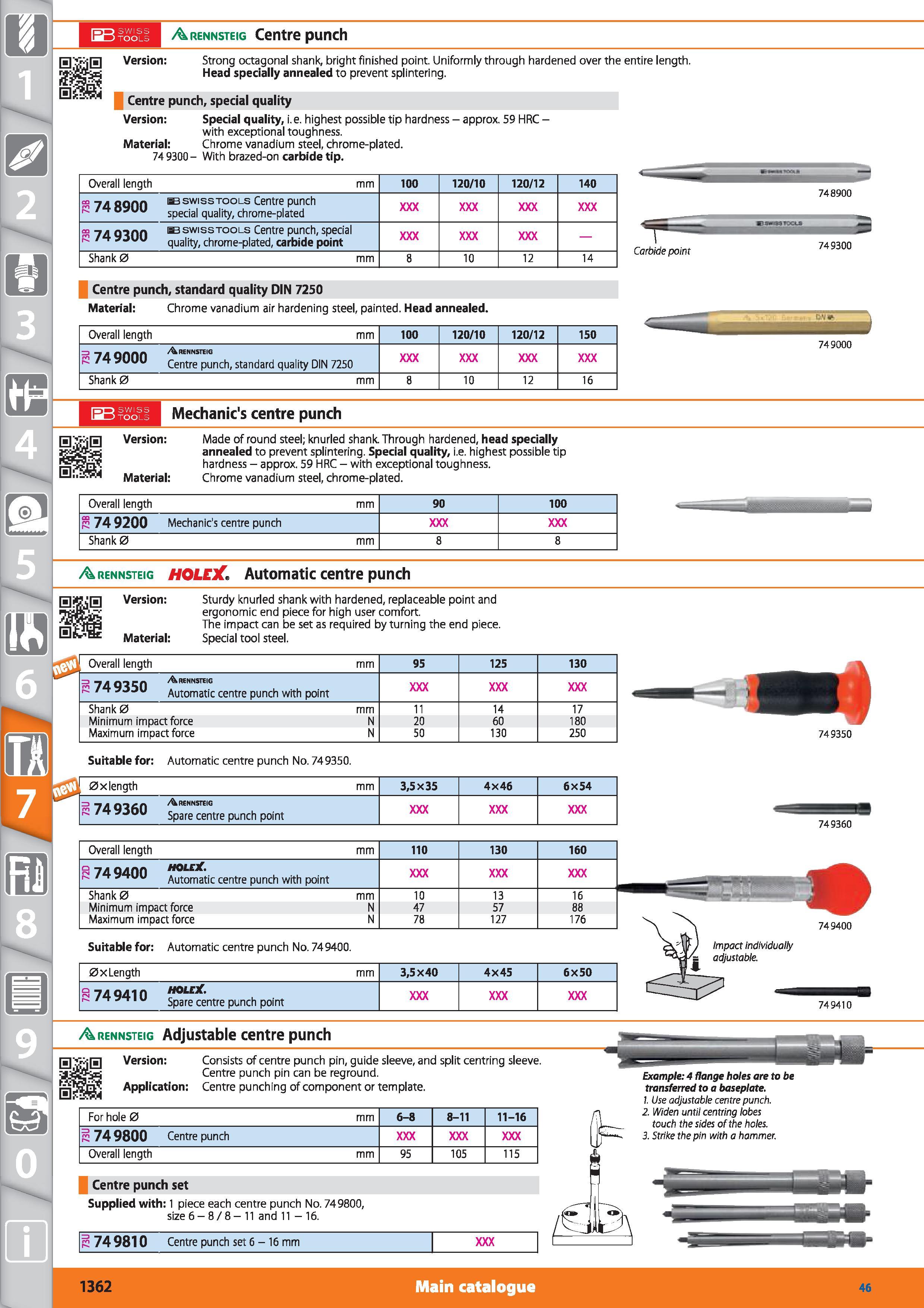

1 Arennsteig Centre punch Version Strong octagonal shank, bright finished point. Uniformly through hardened over the entire length. Head specially annealed to prevent splintering. Centre punch, special quality Version Special quality, i.e. highest possible tip hardness - approx. 59 HRC - with exceptional toughness. Material Chrome vanadium steel, chrome-plated. 74 9300- With brazed-on carbide tip. Overall length mm 100 120/10 120/12 140 g 74 8900 ie swiss tools Centre punch special quality, chrome-plated g 74 9300 ib swisstools Centre punch, special quality, chrome-plated, carbide point Shank 0 mm 8 10 12 14 748900 B Carbide point 749300 Centre punch, standard quality DIN 7250 Material Chrome vanadium air hardening steel, painted. Head annealed. Overall length mm 100 120/10 120/12 150 r 749000 Arennsteig Centre punch, standard quality DIN 7250 Shank 0 mm 8 10 12 16 749000 Mechanic's centre punch Version Made of round steel; knurled shank Through hardened, head specially annealed to prevent splintering. Special quality, i.e. highest possible tip hardness - approx. 59 HRC - with exceptional toughness. Material Chrome vanadium steel, chrome-plated. Overall length mm 90 100 g 74 9200 Mechanic's centre punch Shank 0 mm 8 8 Arennsteig HOLEX Automatic centre punch Version Sturdy knurled shank with hardened, replaceable point and ergonomic end piece for high user comfort. The impact can be set as required by turning the end piece. Material Special tool steel. Overall length mm 95 125 130 7 girn Arennsteig R /H SJjU Automatic centre punch with point Shank 0 mm 11 14 17 Minimum impact force N 20 60 180 Maximum impact force N 50 130 250 749350 Suitable for Automatic centre punch No. 749350. 0x length mm 3,5x35 4x46 6x54 =3 7 Q n Arennsteig r yjOU Spare centre punch point 749360 Overall length mm 110 130 160 S 74 9400 Automatic centre punch with point Shank 0 mm 10 13 16 Minimum impact force N 47 57 88 Maximum impact force N 78 127 176 Suitable for Automatic centre punch No. 749400. 0x Length mm 3,5X40 4X45 6X50 S 74 041 n HOLEX r' Spare centre punch point Impact individually adjustable. 749400 749410 Arennsteig Adjustable centre punch Version Consists of centre punch pin, guide sleeve, and split centring sleeve. Centre punch pin can be reground. Application Centre punching of component or template. For hole 0 mm 6-8 8-11 11-16 R 74 9800 Centre punch Overall length mm 95 105 115 Example 4 flange holes are to be transferred to a baseplate. 1. Use adjustable centre punch. 2. Widen until centring lobes touch the sides of the holes. 3. Strike the pin with a hammer. Centre punch set Supplied with 1 piece each centre punch No. 749800, size 6-878- 11 and 11 - 16. 1749810 Centre punch set 6 - 16 mm 1362 Main catalogue Hoffmann Group 46
