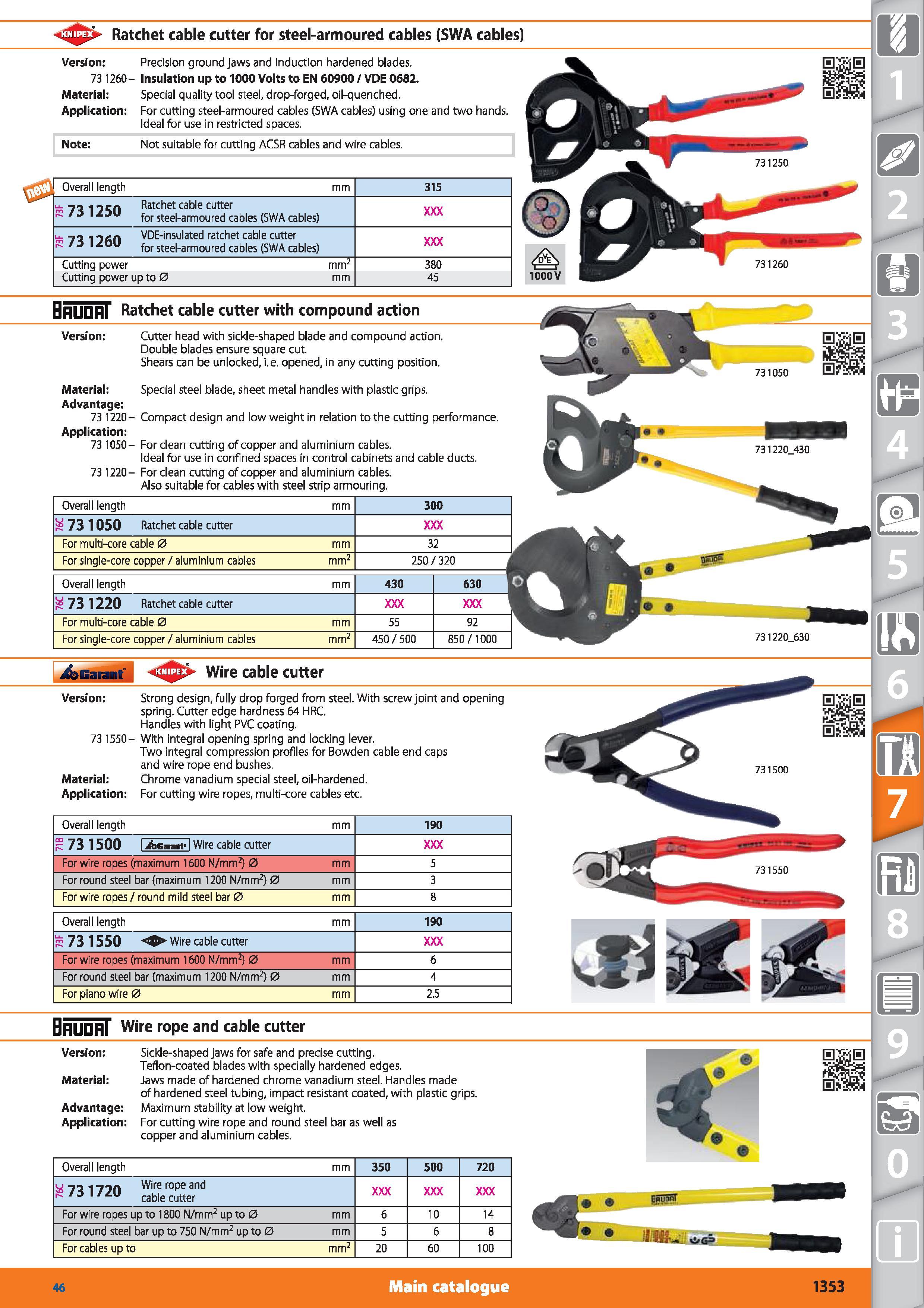

1353 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1353

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1353 1353 ENG Lab2u

BhudhT Version Material Advantage Application Wire rope and cable cutter Sickle-shaped jaws for safe and precise cutting. Teflon-coated blades with specially hardened edges. Jaws made of hardened chrome vanadium steel. Handles made of hardened steel tubing, impact resistant coated, with plastic grips. Maximum stability at low weight. For cutting wire rope and round steel bar as well as copper and aluminium cables. Overall length mm 350 500 720 -> Wire rope and S 73 1720 1 For wire ropes up to 1800 N/mm2 up to 0 mm 6 10 14 For round steel bar up to 750 N/mm2 up to 0 mm 5 6 8 For cables up to mm2 20 60 100 Main catalogue Overall length mm 190 73 1500 1 i&Gnif 1 Wire cable cutter For wire ropes (maximum 1600 N/mm2) 0 mm 5 For round steel bar (maximum 1200 N/mm2) 0 mm 3 For wire ropes / round mild steel bar 0 mm 8 Overall length mm 190 ft 73 1550 Wire cable cutter For wire ropes (maximum 1600 N/mm2) 0 mm 6 For round steel bar (maximum 1200 N/mm2) 0 mm 4 For piano wire 0 mm 2.5 Overall length mm 315 ft 731250 Ratchet cable cutter for steel-armoured cables (SWA cables) ft 731260 VDE-insulated ratchet cable cutter for steel-armoured cables (SWA cables) Cutting power mm2 380 Cutting power up to 0 mm 45 Note Not suitable for cutting ACSR cables and wire cables. 731220_630 j&Garant" J;J Wire cable cutter Ratchet cable cutter for steel-armoured cables (SWA cables) Version Precision ground jaws and induction hardened blades. 73 1260- Insulation up to 1000 Volts to EN 60900 / VDE 0682. Material Special quality tool steel, drop-forged, oil-quenched. Application For cutting steel-armoured cables (SWA cables) using one and two hands. Ideal for use in restricted spaces. BHUDHT Ratchet cable cutter with compound action Version 73 1550- Material Application 0J0 hT Version Material Advantage 73 1220-Application 73 1050- 73 1220- Cutter head with sickle-shaped blade and compound action. Double blades ensure square cut. Shears can be unlocked, i.e. opened, in any cutting position. Special steel blade, sheet metal handles with plastic grips. Compact design and low weight in relation to the cutting performance. For clean cutting of copper and aluminium cables. Ideal for use in confined spaces in control cabinets and cable ducts. For clean cutting of copper and aluminium cables. Also suitable for cables with steel strip armouring. Overall length 731050 Ratchet cable cutter For multi-core cable 0 For single-core copper / aluminium cables 250/320 Overall length 731220 Ratchet cable cutter For multi-core cable 0 For single-core copper/aluminium cables 450 / 500 850/1000 Strong design, fully drop forged from steel. With screw joint and opening spring. Cutter edge hardness 64 HRC. Handles with light PVC coating. With integral opening spring and locking lever. Two integral compression profiles for Bowden cable end caps and wire rope end bushes. Chrome vanadium special steel, oil-hardened. For cutting wire ropes, multi-core cables etc. 731550
