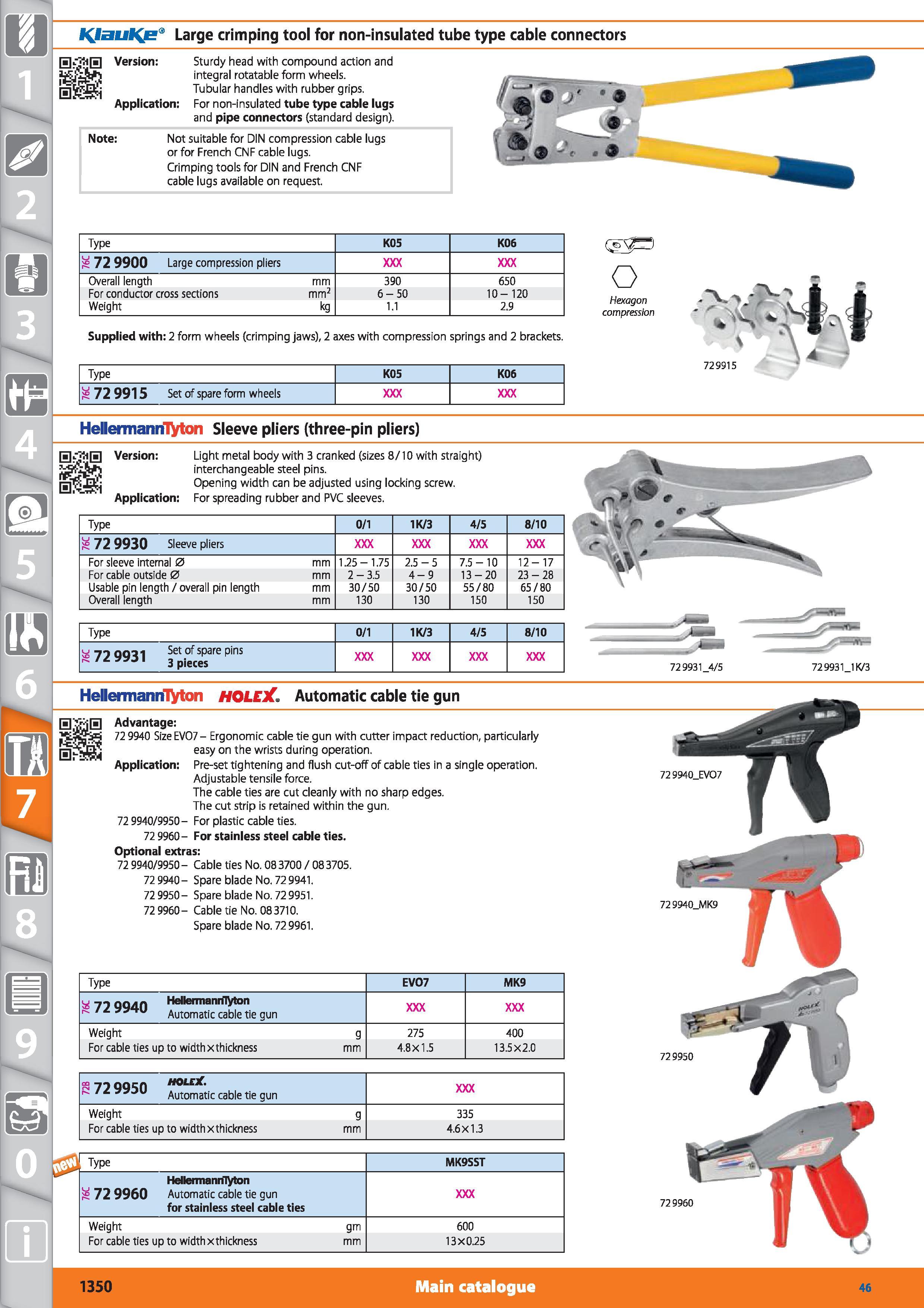

f(fauf(e Large crimping tool for non-insulated tube type cable connectors 0 10 Version Application Sturdy head with compound action and integral rotatable form wheels. Tubular handles with rubber grips. For non-insulated tube type cable lugs and pipe connectors (standard design). Note Not suitable for DIN compression cable lugs or for French CNF cable lugs. Crimping tools for DIN and French CNF cable lugs available on request. Type K05 K06 is 72 9900 Large compression pliers Overall length mm 390 650 For conductor cross sections mm2 6-50 10-120 Weight kg 1.1 2.9 Supplied with 2 form wheels (crimping jaws), 2 axes with compression springs and 2 brackets. Type K05 K06 is 72 9915 Set of spare form wheels o Hexagon compression 729915 \ 4 Hellermanriiyton Sleeve pliers (three-pin pliers) 0 110 Version Light metal body with 3 cranked (sizes 8/10 with straight) interchangeable steel pins. Opening width can be adjusted using locking screw. Application For spreading rubber and PVC sleeves. Type 0/1 IK/3 4/5 8/10 is 72 9930 Sleeve pliers For sleeve internal 0 mm 1.25-1.75 2.5-5 7.5-10 12-17 For cable outside 0 mm 2-3.5 4-9 13-20 23-28 Usable pin length / overall pin length mm 30/50 30/50 55/80 65/80 Overall length mm 130 130 150 150 Type 0/1 IK/3 4/5 8/10 77 0011 Set of spare pins 31 3 pieces Hellermanriiyton HOLEX Automatic cable tie gun Advantage 72 9940 Size EV07 - Ergonomic cable tie gun with cutter impact reduction, particularly easy on the wrists during operation. Application Pre-set tightening and flush cut-off of cable ties in a single operation. Adjustable tensile force. The cable ties are cut cleanly with no sharp edges. The cut strip is retained within the gun. 72 9940/9950- For plastic cable ties. 72 9960- For stainless steel cable ties. Optional extras 72 9940/9950 - Cable ties No. 08 3700 / 08 3705. 729940- Spare blade No. 72 9941. 729950- Spare blade No. 729951. 72 9960- Cable tie No. 083710. Spare blade No. 729961. Type EV07 MK9 72 9940 HeUermanriiyton Automatic cable tie gun Weight g 275 400 For cable ties up to widthxthickness mm 4.8 X 1.5 13.5X2.0 IS 72 9950 HOLEX Automatic cable tie gun Weight g 335 For cable ties up to widthxthickness mm 4.6 X 1.3 Type MK9SST HeHernianrfiyton 1729960 Automatic cable tie gun for stainless steel cable ties Weight For cable ties up to widthxthickness gm mm 600 13x0.25 1350 Main catalogue Hoffmann Group 46 729931_4/5 729931JK/3 72 9940_EV07 72 9940_MK9 729950 729960
