1349 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1349

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1349 1349 ENG Lab2u

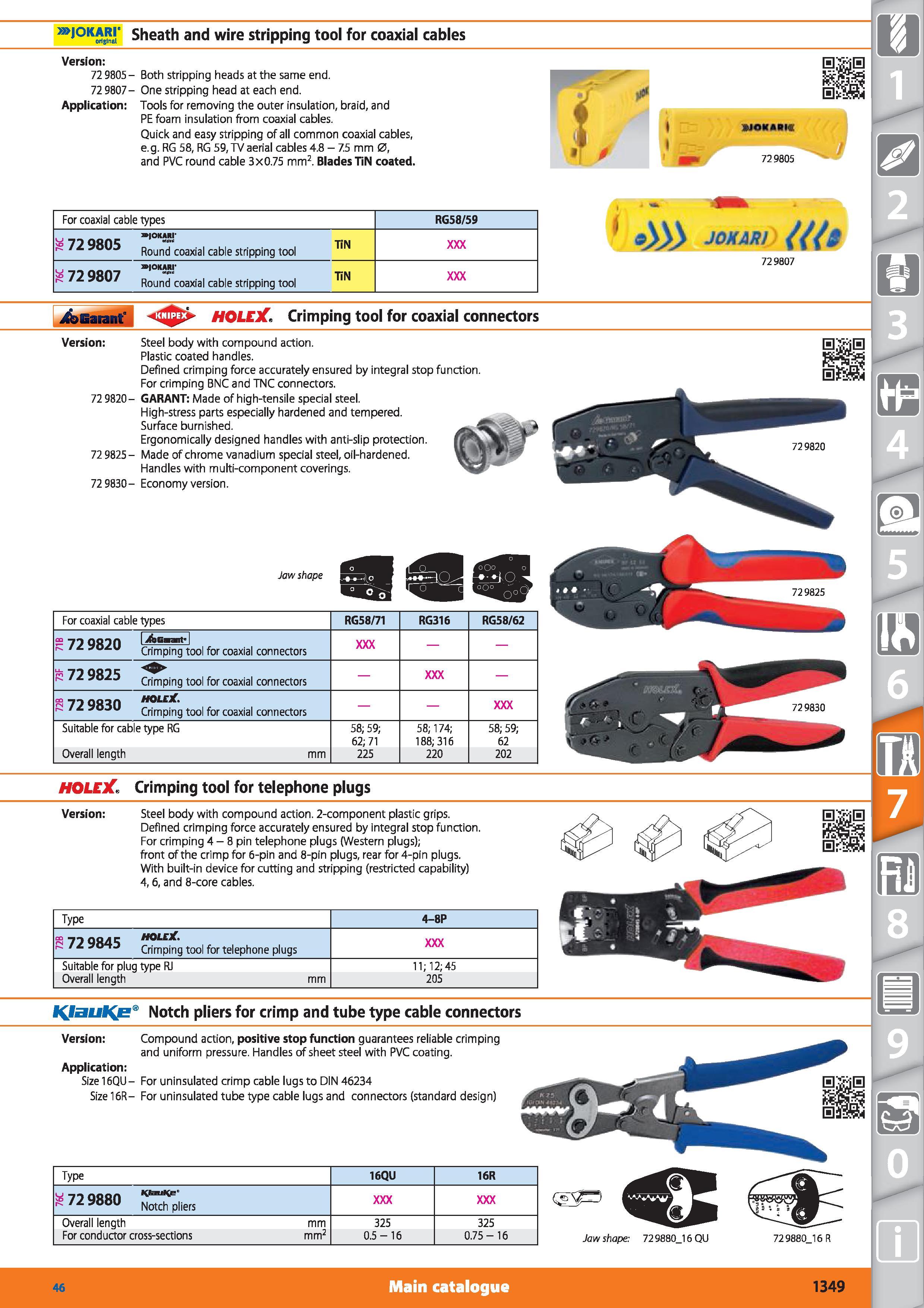

> JOkari- sheath and wire stripping tool for coaxial cables Version 72 9805 - Both stripping heads at the same end. 72 9807- One stripping head at each end. Application Tools for removing the outer insulation, braid, and PE foam insulation from coaxial cables. Quick and easy stripping of all common coaxial cables, e.g. RG 58, RG 59, TV aerial cables 4.8 - 7.5 mm 0, and PVC round cable 3x0.75 mm2. Blades TiN coated. For coaxial cable types RG58/S9 w JOKARI S 72 9805 Round coaxial cable stripping tool T'N non ,OKSS ’ K 72 9807 Round coaxial cable stripping tool Tiiail HOLEX Crimping tool for coaxial connectors Version Steel body with compound action. Plastic coated handles. Defined crimping force accurately ensured by integral stop function. For crimping BNC and TNC connectors. 72 9820- GARANT Made of high-tensile special steel. High-stress parts especially hardened and tempered. Surface burnished. Ergonomically designed handles with anti-slip protection. 72 9825- Made of chrome vanadium special steel, oil-hardened. Handles with multi-component coverings. 72 9830- Economy version. Jaw shape For coaxial cable types RG58/71 RG316 RG58/62 S 72 9820 1 jfecnnt 1 Crimping tool for coaxial connectors ft 72 9825 Crimping tool for coaxial connectors 8 72 9830 HOLEX Crimping tool for coaxial connectors Suitable for cable type RG 58; 59; 62; 71 58; 174; 188; 316 58; 59; 62 Overall length mm 225 220 202 HOLEJlCrimping tool for telephone plugs Version Steel body with compound action. 2-component plastic grips. Defined crimping force accurately ensured by integral stop function. For crimping 4 - 8 pin telephone plugs (Western plugs); front of the crimp for 6-pin and 8-pin plugs, rear for 4-pin plugs. With built-in device for cutting and stripping (restricted capability) 4,6, and 8-core cables. Type 4-8P m 79 9845 holcjC Crimping tool for telephone plugs Suitable for plug type RJ 11; 12; 45 Overall length mm 205 Notch pliers for crimp and tube type cable connectors Version Compound action, positive stop function guarantees reliable crimping and uniform pressure. Handles of sheet steel with PVC coating. Application Size 16QU- For uninsulated crimp cable lugs to DIN 46234 Size 16R- For uninsulated tube type cable lugs and connectors (standard design) Type 16QU 16R K 72 9880 Overall length mm 325 325 For conductor cross-sections mm2 0.5-16 0.75-16 Jaw shape 729880J6QU 729880_16 R m Main catalogue Hoffmann Group 46 1349
