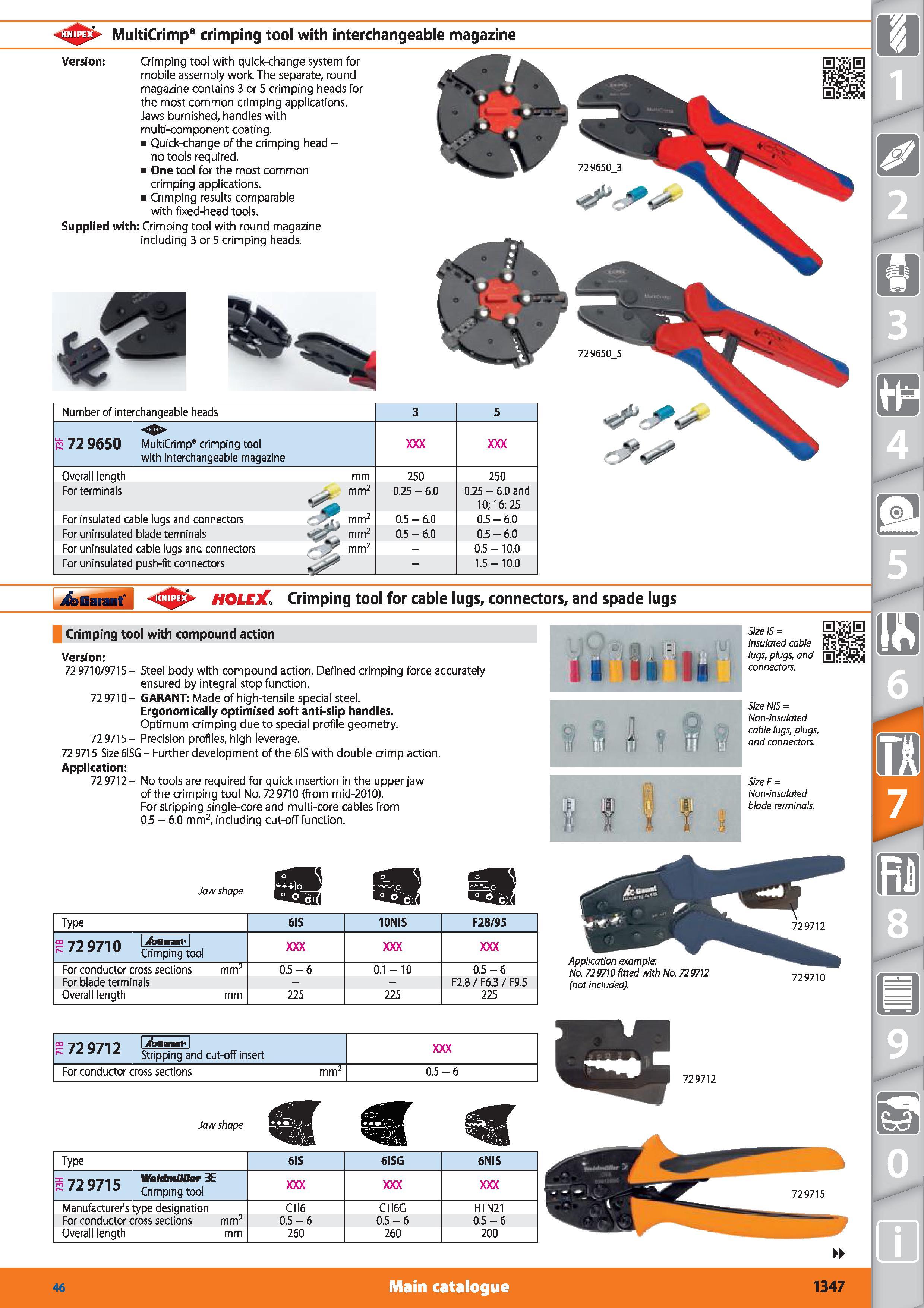

1347 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1347

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1347 1347 ENG Lab2u

MultiCrimp crimping tool with interchangeable magazine Version Crimping tool with quick-change system for mobile assembly work. The separate, round magazine contains 3 or 5 crimping heads for the most common crimping applications. Jaws burnished, handles with multi-component coating. Quick-change of the crimping head -no tools required. One tool for the most common crimping applications. Crimping results comparable with fixed-head tools. Supplied with Crimping tool with round magazine including 3 or 5 crimping heads. It Number of interchangeable heads i 72 9650 MultiCrimp crimping tool with interchangeable magazine Overall length For terminals For insulated cable lugs and connectors For uninsulated blade terminals For uninsulated cable lugs and connectors For uninsulated push-fit connectors mnrr mm2 250 0.25 - 6.0 0.5 - 6.0 0.5 - 6.0 250 3.25 - 6.0 and 10; 16; 25 0.5 - 6.0 0.5 - 6.0 0.5-10.0 1.5-10.0 j&Garant" HOLEX Crimping tool for cable lugs, connectors, and spade lugs Crimping tool with compound action Version 72 9710/9715 72 9710- 72 9715- Steel body with compound action. Defined crimping force accurately ensured by integral stop function. GARANT Made of high-tensile special steel. Ergonomically optimised soft anti-slip handles. Optimum crimping due to special profile geometry. Precision profiles, high leverage. 72 9715 Size 6ISG - Further development of the 6IS with double crimp action. Application 72 9712- No tools are required for quick insertion in the upper jaw of the crimping tool No. 729710 (from mid-2010). For stripping single-core and multi-core cables from 0.5 - 6.0 mm2, including cut-off function. ll II 111 f S At 9 I f Size IS Insulated cable lugs, plugs, and gjl connectors. Size NIS -Non-insulated cable lugs, plugs, and connectors. Size F -Non-insulated blade terminals. Type 6IS 10NIS F28/95 “77 <171 n f r'/zs/lu Crimping tool For conductor cross sections mm2 0.5-6 0.1 -10 0.5-6 For blade terminals F2.8/F6.3/F9.5 Overall length mm 225 225 225 (not included). “72 0712 lAcmfl Stripping and cut-off insert For conductor cross sections mm2 0.5-6 Jaw shape Type 6IS 6ISG 6NIS m -j-. . Weidmuller H 72 9715 Crimping tool Manufacturer's type designation CTI6 CTI6G HTN21 For conductor cross sections mm2 0.5-6 0.5-6 0.5-6 Overall length mm 260 260 200 729712 729715 72 9650_3 72 9650_5 Main catalogue Hoffmann Group 46 1347
