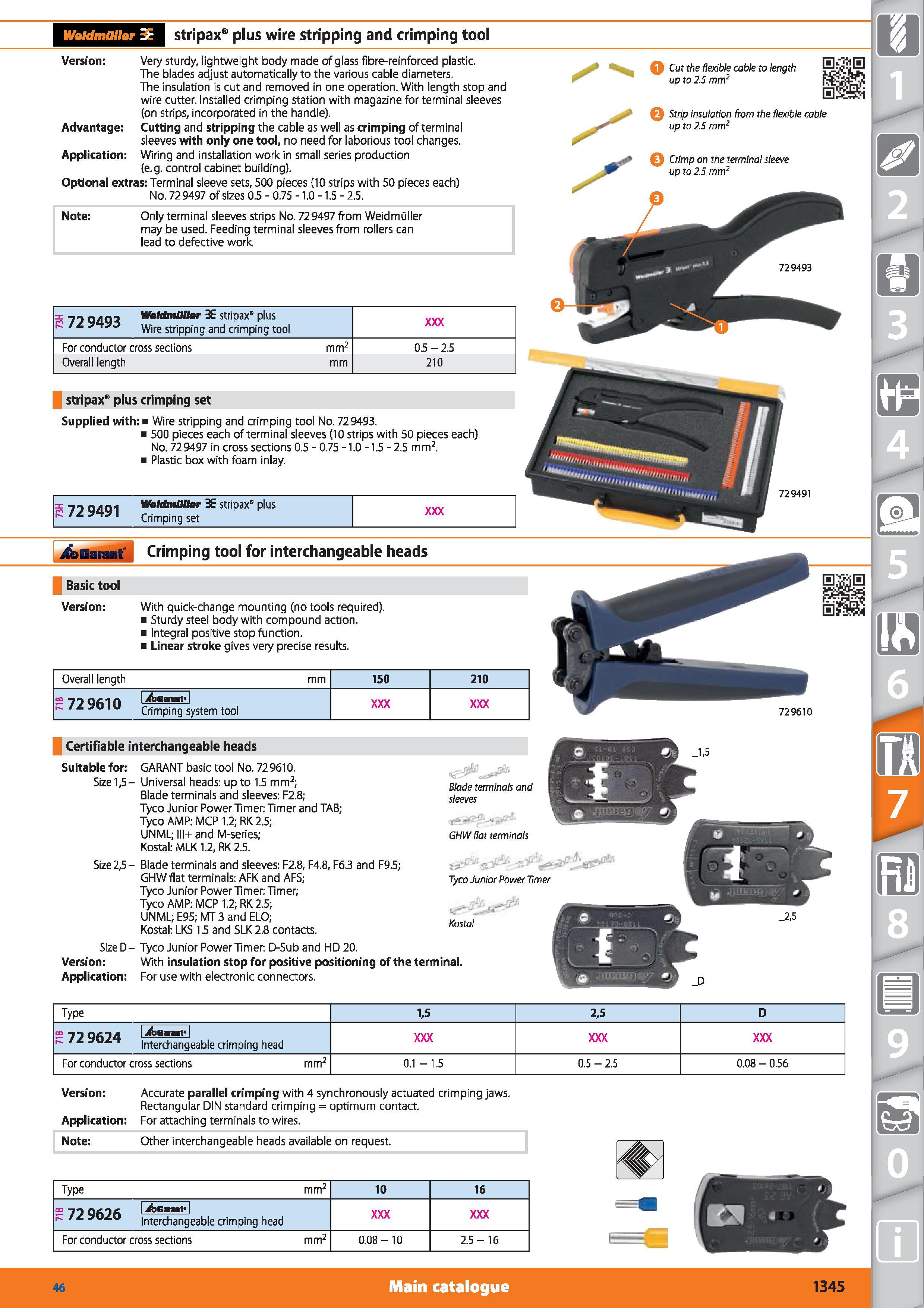

Weidmiille 3E stripax plus wire stripping and crimping tool \t\ Version Very sturdy, lightweight body made of glass fibre-reinforced plastic. The blades adjust automatically to the various cable diameters. The insulation is cut and removed in one operation. With length stop and wire cutter. Installed crimping station with magazine for terminal sleeves (on strips, incorporated in the handle). Advantage Cutting and stripping the cable as well as crimping of terminal sleeves with only one tool, no need for laborious tool changes. Application Wiring and installation work in small series production (e.g. control cabinet building). Optional extras Terminal sleeve sets, 500 pieces (10 strips with 50 pieces each) No. 729497 of sizes 0.5 - 0.75 -1.0 -1.5 - 2.5. Q Cut the flexible cable to length up to 2.5 mm2 Strip insulation from the flexible cable up to 2.5 mm2 Crimp on the terminal sleeve up to 2.5 mm2 Note Only terminal sleeves strips No. 729497 from Weidmuller may be used. Feeding terminal sleeves from rollers can lead to defective work k 72 9493 Weidmuller 38 stripax plus Wire stripping and crimping tool For conductor cross sections mm2 0.5 - 2.5 Overall length mm 210 stripax8 plus crimping set Supplied with Wire stripping and crimping tool No. 729493. 500 pieces each of terminal sleeves (10 strips with 50 pieces each) No. 729497 in cross sections 0.5 - 0.75 -1.0 -1.5 - 2.5 mm2. Plastic box with foam inlay. k 72 9491 Weidmuller 3E stripax plus Crimping set 729491 jSonaranf Crimping tool for interchangeable heads Basic tool Version With quick-change mounting (no tools required). Sturdy steel body with compound action. Integral positive stop function. Linear stroke gives very precise results. Overall length mm 150 210 “72 9610 r. / u Crimping system tool 729610 m Type 1,5 2,5 D 72 9624 I xSaGMii" I Interchangeable crimping head For conductor cross sections mm2 0.1 - 1.5 0.5 - 2.5 0.08 - 0.56 Version Accurate parallel crimping with 4 synchronously actuated crimping jaws. Rectangular DIN standard crimping optimum contact. Application For attaching terminals to wires. Note Other interchangeable heads available on request. Type mm2 10 16 “72 9626 Interchangeable crimping head For conductor cross sections mm2 0.08-10 2.5-16 Main catalogue Hoffmann Group 46 1345 Certifiable interchangeable heads SizeD- Tyco Junior Power Timer D-Sub and HD 20. Version With insulation stop for positive positioning of the terminal. Application For use with electronic connectors. Suitable for Size 1,5- Size 2,5 - GARANT basic tool No. 729610. Universal heads up to 1.5 mm2; Blade terminals and sleeves F2.8; Tyco Junior Power Timer Timer and TAB; Tyco AMP MCP 1.2; RK 2.5; UNML; 111+ and M-series; Kostal MLK 1.2, RK 2.5. Blade terminals and sleeves F2.8, F4.8, F6.3 and F9.5; GHW flat terminals AFK and AFS; Tyco Junior Power Timer Timer; Tyco AMP MCP 1.2; RK 2.5; UNML; E95; MT 3 and ELO; Kostal LKS 1.5 and SLK 2.8 contacts. Blade terminals and sleeves GHW flat terminals Tyco Junior Power Timer Kostal
