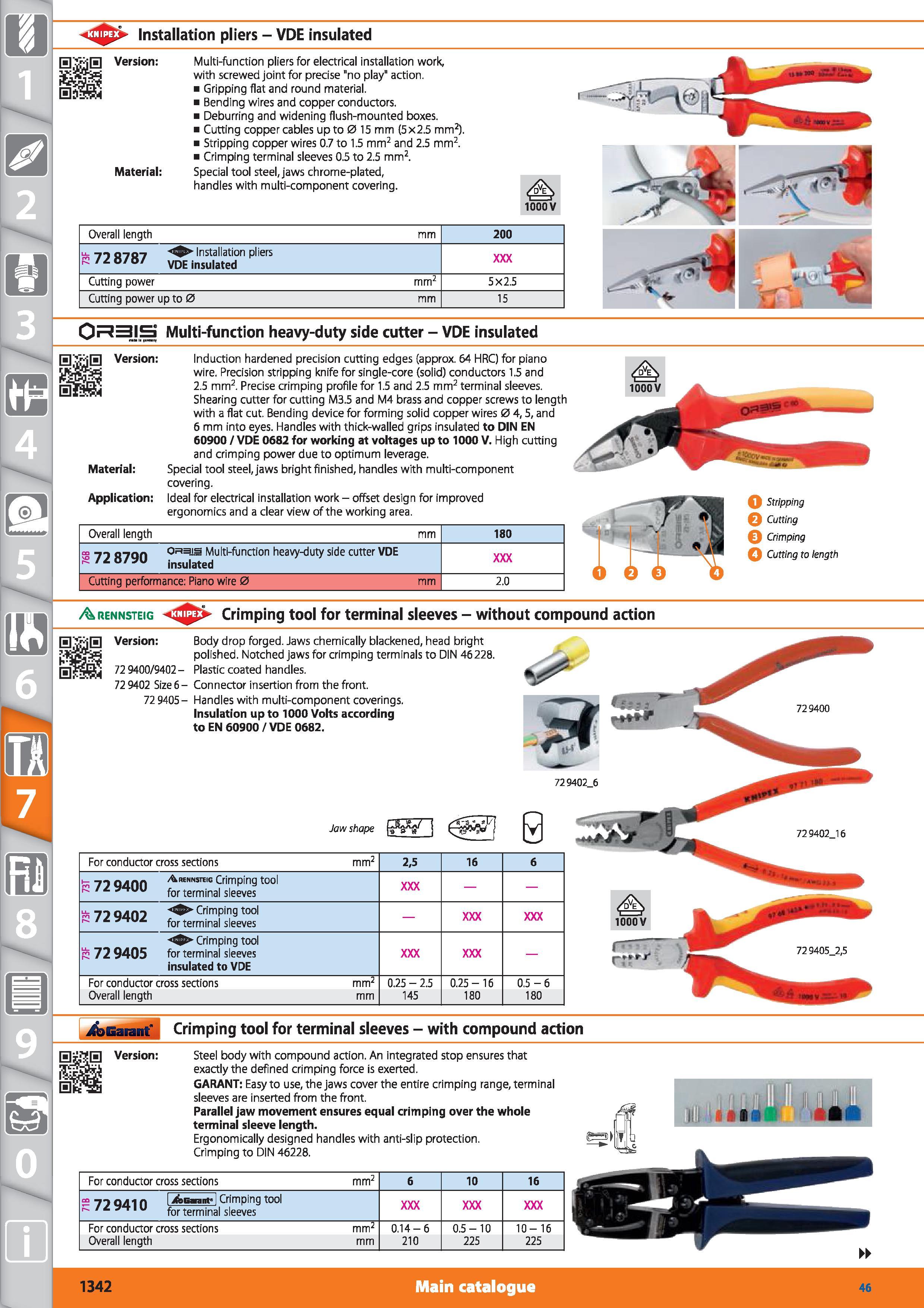

1 <3 > Installation pliers - VDE insulated HSjH Version Multi-function pliers for electrical installation work, with screwed joint for precise "no play" action. Bj'rSi Gripping flat and round material. Bending wires and copper conductors. Deburring and widening flush-mounted boxes. Cutting copper cables up to 0 15 mm (5x2.5 mm2). Stripping copper wires 0.7 to 1.5 mm2 and 2.5 mm2. Crimping terminal sleeves 0.5 to 2.5 mm2. Material Special tool steel, jaws chrome-plated, handles with multi-component covering. 1000 V Overall length mm 200 -ti 0-70-7 Installation pliers R 72 8787 VDE insulated Cutting power mm2 5X2.5 Cutting power up to 0 mm 15 OF Version Multi-function heavy-duty side cutter - VDE insulated Material Application Induction hardened precision cutting edges (approx. 64 HRC) for piano wire. Precision stripping knife for single-core (solid) conductors 1.5 and 2.5 mm2. Precise crimping profile for 1.5 and 2.5 mm2 terminal sleeves. Shearing cutter for cutting M3.5 and M4 brass and copper screws to length with a flat cut. Bending device for forming solid copper wires 0 4,5, and 6 mm into eyes. Handles with thick-walled grips insulated to DIN EN 60900 / VDE 0682 for working at voltages up to 1000 V. High cutting and crimping power due to optimum leverage. Special tool steel, jaws bright finished, handles with multi-component covering. Ideal for electrical installation work - offset design for improved ergonomics and a clear view of the working area. Overall length mm 180 -7T o7an Osajs Multi-function heavy-duty side cutter VDE s 72 8790 jnsu ated Cutting performance Piano wire 0 mm 2.0 Q Stripping Q Cutting Q Crimping Q Cutting to length Arennsteig Crimping tool for terminal sleeves - without compound action Version Body drop forged. Jaws chemically blackened, head bright polished. Notched jaws for crimping terminals to DIN 46228. Plastic coated handles. Connector insertion from the front. 72 9405- Handles with multi-component coverings. Insulation up to 1000 Volts according to EN 60900/VDE 0682. 72 9400/9402-72 9402 Size 6 Jaw shape For conductor cross sections mm2 2,5 16 6 r 72 9400 Arennsteig Crimping tool for terminal sleeves r 72 9402 Crimping tool for terminal sleeves r 72 9405 Crimping tool for terminal sleeves insulated to VDE For conductor cross sections mm2 0.25 - 2.5 0.25-16 0.5-6 Overall length mm 145 180 180 jj Haiant’ Crimping tool for terminal sleeves - with compound action 0 Version Steel body with compound action. An integrated stop ensures that exactly the defined crimping force is exerted. GARANT Easy to use, the jaws cover the entire crimping range, terminal sleeves are inserted from the front. Parallel jaw movement ensures equal crimping over the whole terminal sleeve length. Ergonomically designed handles with anti-slip protection. Crimping to DIN 46228. For conductor cross sections mm2 6 10 16 co 0410 1 i&Gmit” Crimpinq tool for terminal sleeves For conductor cross sections mm2 0.14-6 0.5-10 10-16 Overall length mm 210 225 225 1342 Main catalogue Hoffmann Group 46
