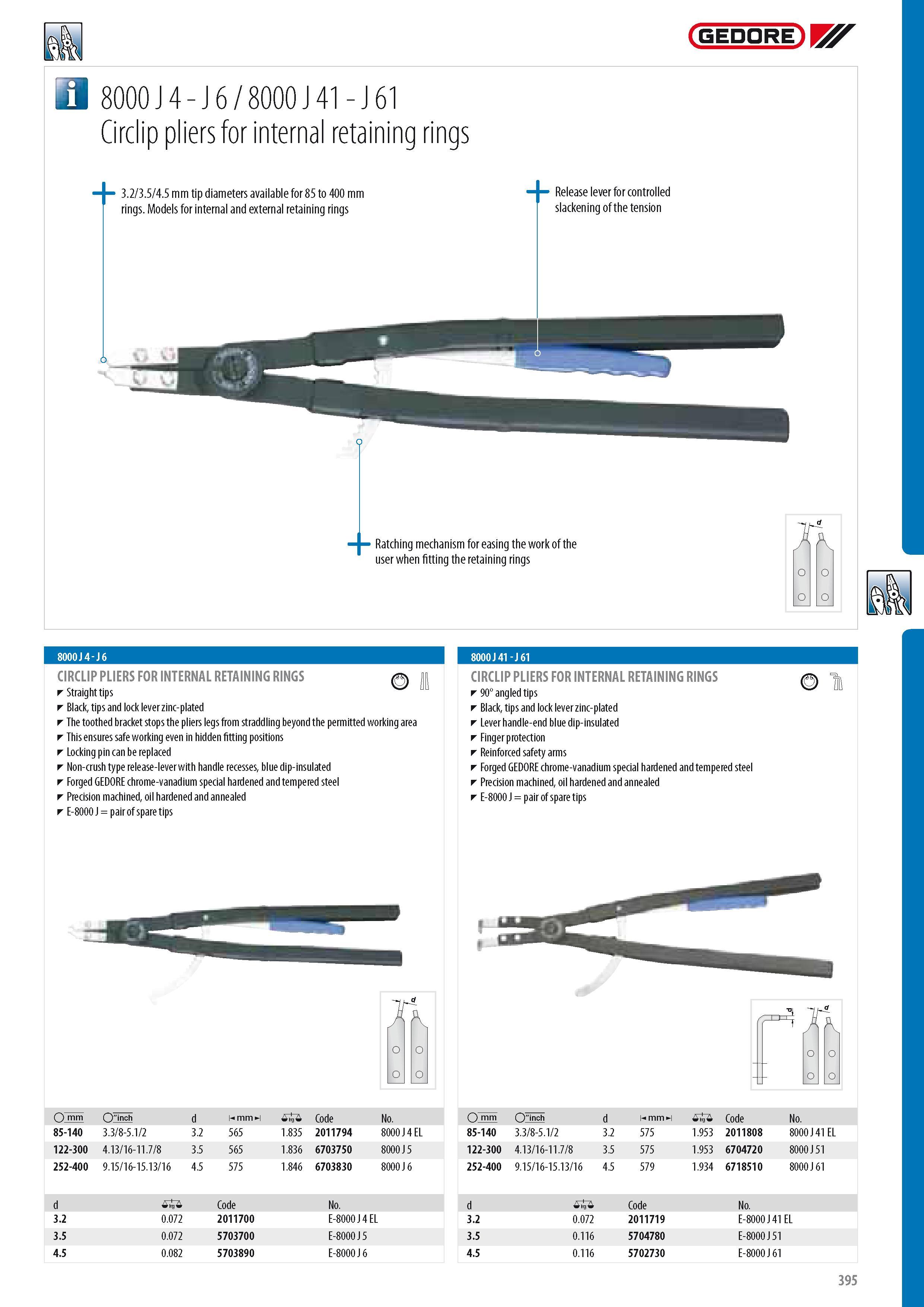

GEDORE 3 8000 J 4 - J 6 8000 J 41 - J 61 Circlip pliers for internal retaining rings 3.2 3.5 4.5 mm tip diameters available for 85 to 400 mm rings. Models for internal and external retaining rings Release lever for controlled slackening of the tension Ratching mechanism for easing the work of the user when fitting the retaining rings 8000J4 -J6 8000 J 41 - J 61 CIRCLIP PLIERS FOR INTERNAL RETAINING RINGS Straight tips Black tips and lock lever zinc-plated The toothed bracket stops the pliers legs from straddling beyond the permitted working area This ensures safe working even in hidden fitting positions Locking pin can be replaced Non-crush type release-lever with handle recesses blue dip-insulated Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed E-8000 J pair of spare tips CIRCLIP PLIERS FOR INTERNAL RETAINING RINGS 90 angled tips Black tips and lock lever zinc-plated Lever handle-end blue dip-insulated Finger protection Reinforced safety arms Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed E-8000 J pair of spare tips N O mm 0"inch d m mm m 0 Code No. O 0 d m mm m 0 Code No. 85-140 3.3 8-5.1 2 3.2 565 1.835 2011794 8000J4 EL 85-140 3.3 8-5.1 2 3.2 575 1.953 2011808 8000 J 41 EL 122-300 4.13 16-11.7 8 3.5 565 1.836 6703750 8000 J 5 122-300 4.13 16-11.7 8 3.5 575 1.953 6704720 8000 J 51 252-400 9.15 16-15.13 16 4.5 575 1.846 6703830 8000 J 6 252-400 9.15 16-15.13 16 4.5 579 1.934 6718510 8000 J 61 d 0 Code No. d 0 Code No. 3.2 0.072 2011700 E-8000 J 4 EL 3.2 0.072 2011719 E-8000J 41 EL 3.5 0.072 5703700 E-8000 J 5 3.5 0.116 5704780 E-8000 J 51 4.5 0.082 5703890 E-8000 J 6 4.5 0.116 5702730 E-8000 J 61 395
