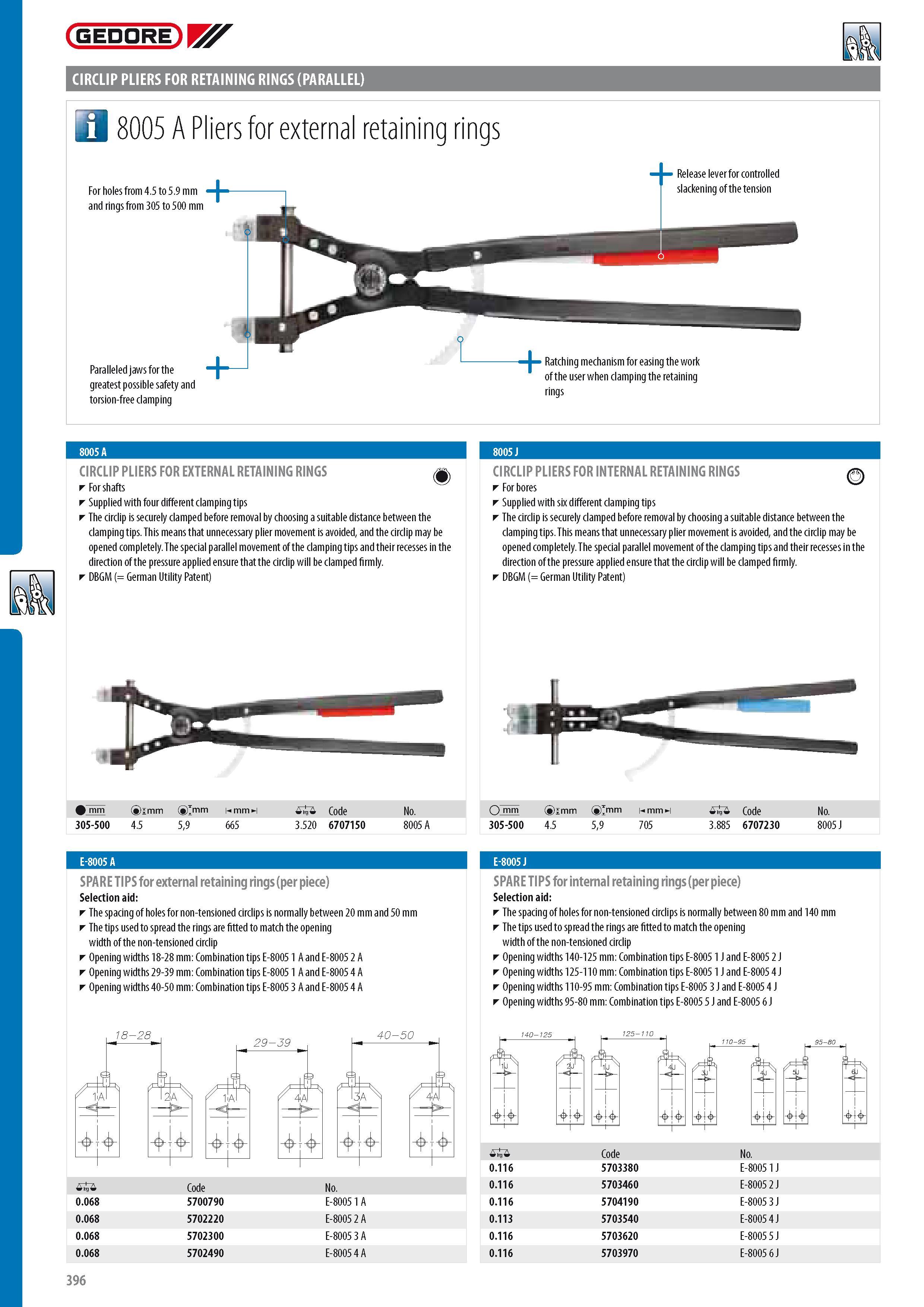

GEDORE CIRCLIP PLIERS FOR RETAINING RINGS (PARALLEL) a 8005 A Pliers for external retaining rings For holes from 4.5 to 5.9 mm and rings from 305 to 500 mm Release lever for controlled slackening of the tension Paralleled jaws for the greatest possible safety and torsion-free clamping Ratching mechanism for easing the work of the user when clamping the retaining rings 8005 A B CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS For shafts Supplied with four different clamping tips The circlip is securely clamped before removal by choosing a suitable distance between the clamping tips. This means that unnecessary plier movement is avoided and the circlip may be opened completely. The special parallel movement of the clamping tips and their recesses in the direction of the pressure applied ensure that the circlip will be clamped firmly. DBGM ( German Utility Patent) CIRCLIP PLIERS FOR INTERNAL RETAINING RINGS For bores Supplied with six different clamping tips The circlip is securely clamped before removal by choosing a suitable distance between the clamping tips. This means that unnecessary plier movement is avoided and the circlip may be opened completely. The special parallel movement of the clamping tips and their recesses in the direction of the pressure applied ensure that the circlip will be clamped firmly. DBGM ( German Utility Patent) 0 mm imm mm m mm y 0 Code No. Q mm imm mm m mm m 0 Code No. 305-500 4.5 59 665 3.520 6707150 8005 A 305-500 4.5 59 705 3.885 6707230 8005 J E-8005 A 1 E-8005 J SPARE TIPS for external retaining rings (per piece) Selection aid The spacing of holes for non-tensioned circlips is normally between 20 mm and 50 mm The tips used to spread the rings are fitted to match the opening width of the non-tensioned circlip Opening widths 18-28 mm Combination tips E-8005 1 A and E-8005 2 A Opening widths 29-39 mm Combination tips E-8005 1 A and E-8005 4 A Opening widths 40-50 mm Combination tips E-8005 3 A and E-8005 4 A SPARE TIPS for internal retaining rings (per piece) Selection aid The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mm The tips used to spread the rings are fitted to match the opening width of the non-tensioned circlip Opening widths 140-125 mm Combination tips E-8005 1 J and E-8005 2 J Opening widths 125-110 mm Combination tips E-8005 1 J and E-8005 4 J Opening widths 110-95 mm Combination tips E-8005 3 J and E-8005 4 J Opening widths 95-80 mm Combination tips E-8005 5 J and E-8005 6 J 0 0.068 0.068 0.068 0.068 Code 5700790 5702220 5702300 5702490 No. E-8005 1 A E-8005 2 A E-8005 3 A E-8005 4 A 0 0.116 0.116 0.116 0.113 0.116 0.116 Code 5703380 5703460 5704190 5703540 5703620 5703970 No. E-8005 1 J E-8005 2 J E-8005 3 J E-8005 4 J E-8005 5 J E-8005 6 J 396
