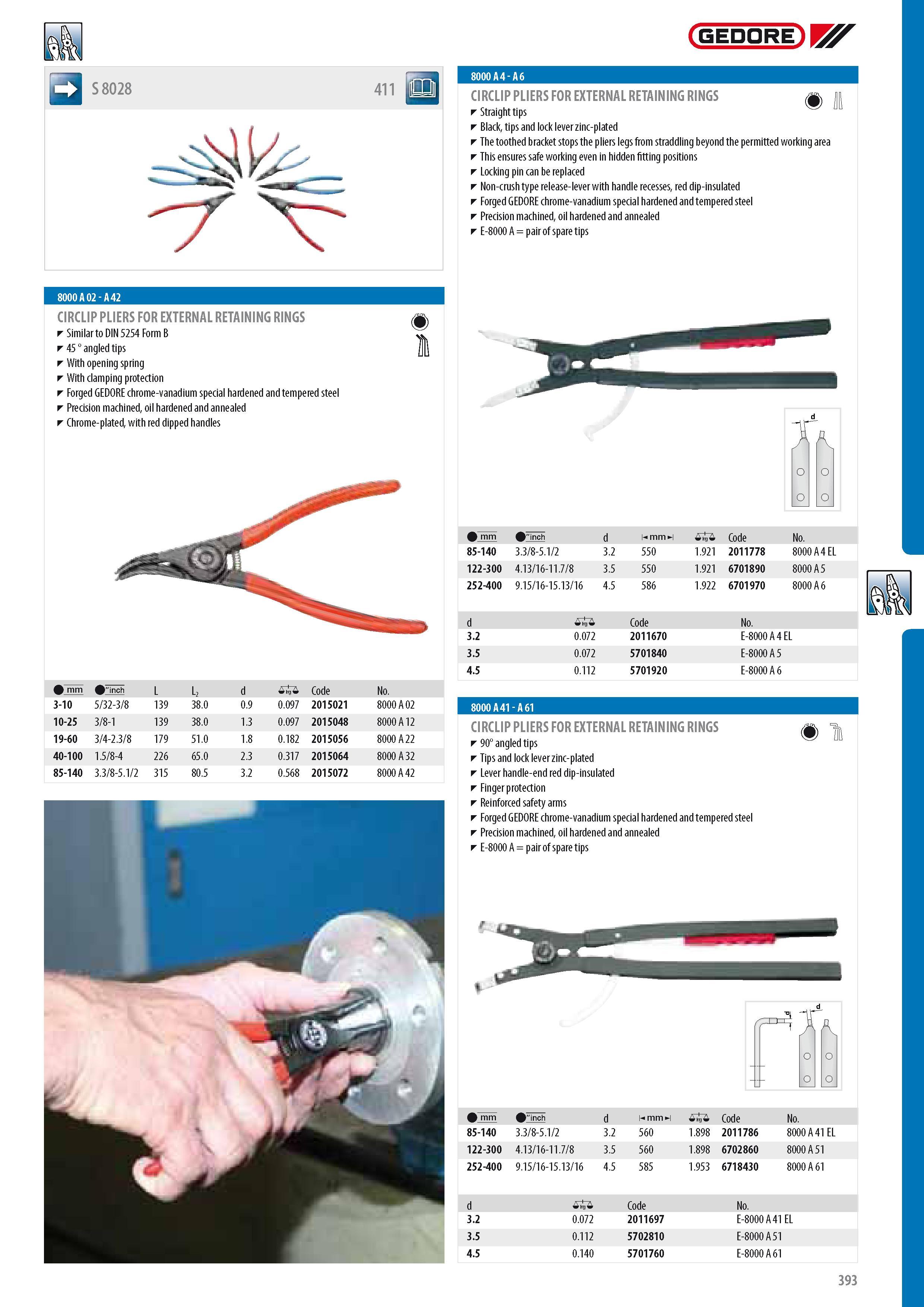

S 8028 GEDORE CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS Straight tips Black tips and lock lever zinc-plated The toothed bracket stops the pliers legs from straddling beyond the permitted working area This ensures safe working even in hidden fitting positions Locking pin can be replaced Non-crush type release-lever with handle recesses red dip-insulated Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed E-8000 A pair of spare tips 8000 A 02 - A 42 CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS Similar to DIN 5254 Form B 45 angled tips With opening spring With clamping protection Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed Chrome-plated with red dipped handles B o 0 mm 0"inch L L2 d 0 Code No. 3-10 5 32-3 8 139 38.0 0.9 0.097 2015021 8000 A 02 10-25 3 8-1 9 3 38.0 1.3 0.097 2015048 8000 A 12 19-60 3 4-2.3 8 179 51.0 1.8 0.182 2015056 8000 A 22 40-100 1.5 8-4 226 65.0 .3 2. 0.317 2015064 8000 A 32 85-140 3.3 8-5.1 2 315 80.5 3.2 0.568 2015072 8000 A 42 m mm d m mm mi 0 Code No. 85-140 3.3 8-5.1 2 .2 3. 550 1.921 2011778 8000 A 4 EL 122-300 4.13 16-11.7 8 3.5 550 1.921 6701890 8000 A 5 252-400 9.15 16-15.13 16 4.5 586 1.922 6701970 8000 A 6 d -i0 Code No. 3.2 0.072 2011670 E-8000 A 4 EL 3.5 0.072 5701840 E-8000 A 5 4.5 0.112 5701920 E-8000 A 6 8000 A 41 - A 61 CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS 90 angled tips Tips and lock lever zinc-plated Lever handle-end red dip-insulated Finger protection Reinforced safety arms Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed E-8000 A pair of spare tips B N 0 mm 0"inch d m mm ml 0 Code No. 85-140 3.3 8-5.1 2 3.2 560 1.898 2011786 8000 A 41 EL 122-300 4.13 16-11.7 8 3.5 560 1.898 6702860 8000 A 51 252-400 9.15 16-15.13 16 4.5 585 1.953 6718430 8000 A 61 d 0 Code No. 3.2 0.072 2011697 E-8000 A 41 EL 3.5 0.112 5702810 E-8000A 51 4.5 0.140 5701760 E-8000A 61 393
