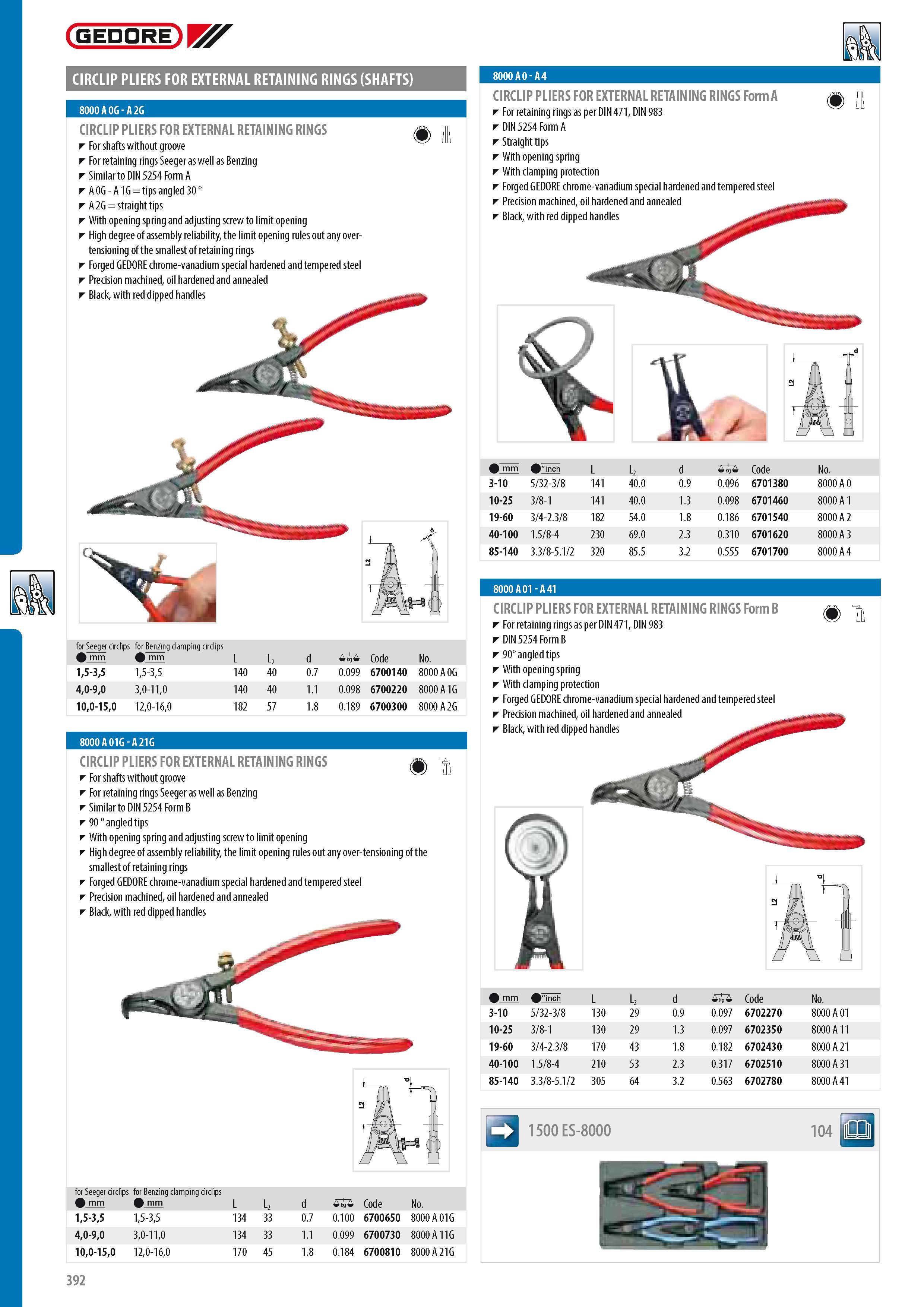

GEDORE CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS (SHAFTS) 8000 A OG - A 2G CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS For shafts without groove For retaining rings Seeger as well as Benzing Similar to DIN 5254 Form A A 0G - A 1G tips angled 30 A 2G straight tips With opening spring and adjusting screw to limit opening High degree of assembly reliability the limit opening rules out any overtensioning of the smallest of retaining rings Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed Black with red dipped handles B for Seeger circlips for Benzing clamping circlips 0 mm 0 mm L L2 d 15-35 15-35 140 40 0.7 40-90 30-110 140 40 1.1 100-150 120-160 182 57 1.8 -0 0.099 0.098 0.189 Code 6700140 6700220 6700300 No. 8000 A0G 8000 A1G 8000 A2G 8000 A 01G - A 21G CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS For shafts without groove For retaining rings Seeger as well as Benzing Similar to DIN 5254 Form B 90 angled tips With opening spring and adjusting screw to limit opening High degree of assembly reliability the limit opening rules out any over-tensioning of the smallest of retaining rings Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed Black with red dipped handles B N for Seeger circlips for Benzing clamping circlips m m L L2 d 15-35 15-35 134 33 0.7 40-90 30-110 134 33 1.1 100-150 120-160 170 45 1.8 0 Code No. 0.100 6700650 8000 A 01G 0.099 6700730 8000 A 11G 0.184 6700810 8000 A 21G CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS Form A For retaining rings as per DIN 471 DIN 983 DIN 5254 Form A Straight tips With opening spring With clamping protection Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed Black with red dipped handles 0 mm 0"inch L L2 d 0 Code No. 3-10 5 32-3 8 141 40.0 0.9 0.096 6701380 8000 A 0 10-25 3 8-1 141 40.0 1.3 0.098 6701460 8000 A 1 19-60 3 4-2.3 8 2 8 54.0 1.8 0.186 6701540 8000 A 2 40-100 1.5 8-4 230 69.0 .3 2. 0.310 6701620 8000 A 3 85-140 3.3 8-5.1 2 320 85.5 3.2 0.555 6701700 8000 A 4 8000 A 01 - A 41 CIRCLIP PLIERS FOR EXTERNAL RETAINING RINGS Form B For retaining rings as per DIN 471 DIN 983 DIN 5254 Form B 90 angled tips With opening spring With clamping protection Forged GEDORE chrome-vanadium special hardened and tempered steel Precision machined oil hardened and annealed Black with red dipped handles 1 0 mm 0"inch L L2 d 0 Code No. 3-10 5 32-3 8 0 3 29 0.9 0.097 6702270 8000 A 01 10-25 3 8-1 130 29 1.3 0.097 6702350 8000 A 11 19-60 3 4-2.3 8 170 43 1.8 0.182 6702430 8000 A 21 40-100 1.5 8-4 210 53 .3 2. 0.317 6702510 8000 A 31 85-140 3.3 8-5.1 2 305 64 .2 3. 0.563 6702780 8000 A 41 1500 ES-8000 392
